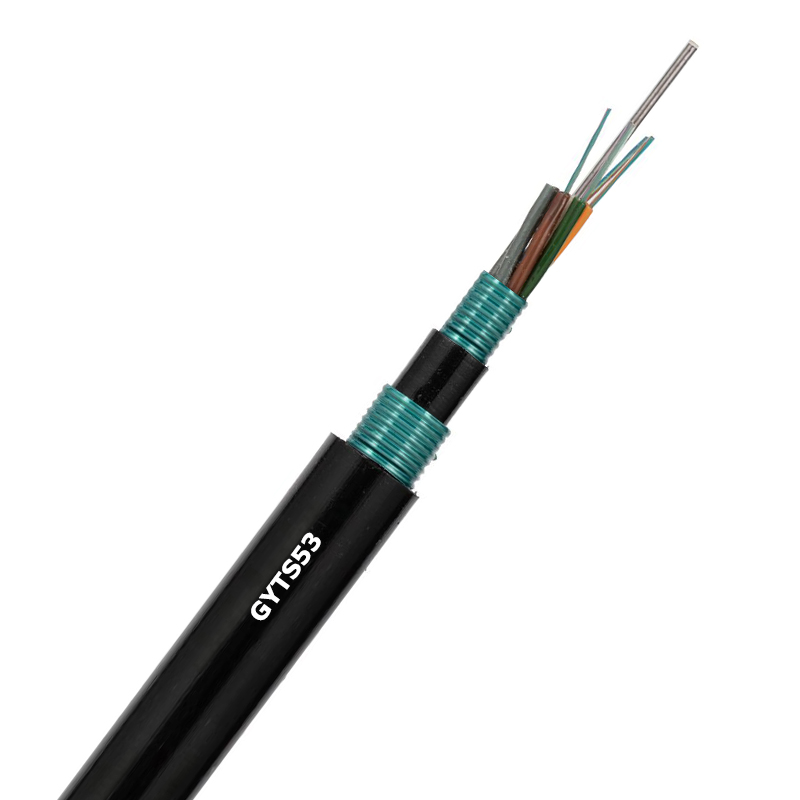

GYTS53 Double CST Armor Underground Buried Fiber Optic Cable

Description:

GYTS53 is a kind of outdoor stranded loose tube optical fiber cable with double jackets double CST Armor for Underground Direct Buried Installation.

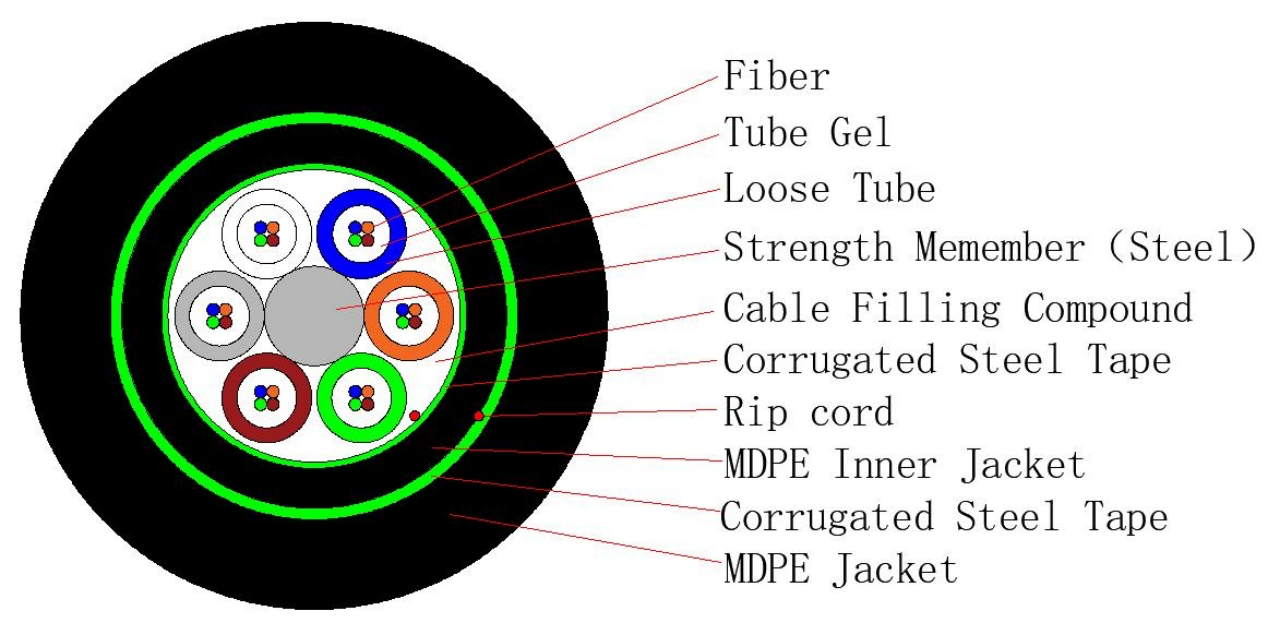

The 2-288 fibers are positioned in loose tubes made of high modulus plastic and filled with gel. Tubes (and fillers) are stranded around the metallic central strength member (steel wire) to form the cable core. A Corrugated Steel Tape (CST) is longitudinally armored over the cable core, which is filled with the water-blocking compound. Then the cable core is covered with a PE inner jacket. After another Corrugated Steel Tape(CST) is longitudinally armored over the inner jacket, finally the cable is completed with a PE outer jacket.

Features:

(1) Good mechanical and environmental performance

(2) Steel wire as the central strength member

(3) Hydrolysis resistant loose tube

(4) Tube filling compound ensures critical protection of fiber

(5) Specially designed stranded structure eliminating contraction of tubes

(6) Rugged, durable PE jacket provides protection against UV radiation, fungus etc.

(7) Water-blocking measures :

- Loose tube gel-filled

- 100% cable filling compound

- Double Corrugated steel tape (CST) enhance moisture-proof, rodent-resistant properties

Applications:

Direct-burial / Duct / Non Self-supporting Aerial Installation for Telecommunication Networks.

(1) Long-distance communication

(2) Inter-office communication

(3) Harsh environment occasions: with excellent waterproof, moisture-proof and rodent-resistant properties, it is especially suitable for direct-buried laying underground, laying in sewers or in areas with a lot of rodents.

(4) Aerial and pipeline laying: It can be laid through aerial and pipeline methods, which is suitable for a variety of laying environments and has strong adaptability.

Fiber Color Identification

Reel Length: normally 2km, 3km, 4km, 5km (as your request)

Drum options: Fumigated Wooden Drum, Steel-reinforced Wooden Drum, Plywood Drum.

Cable and Drum Marking according to customer’s requirements.
