Description:
GYXTW is a kind of central unitube optical fiber cable for Aerial/ Duct installation.

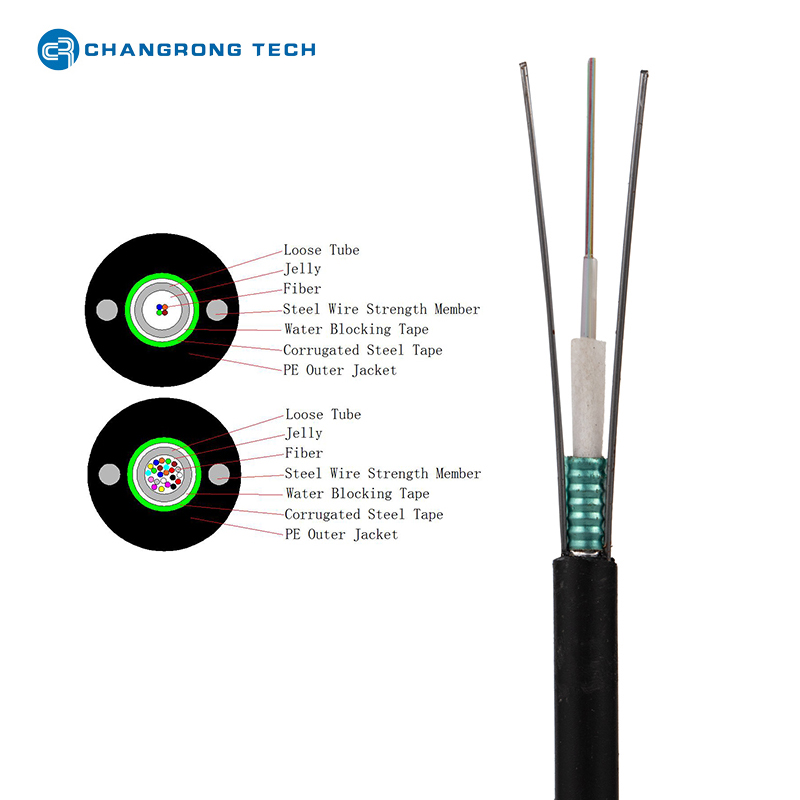

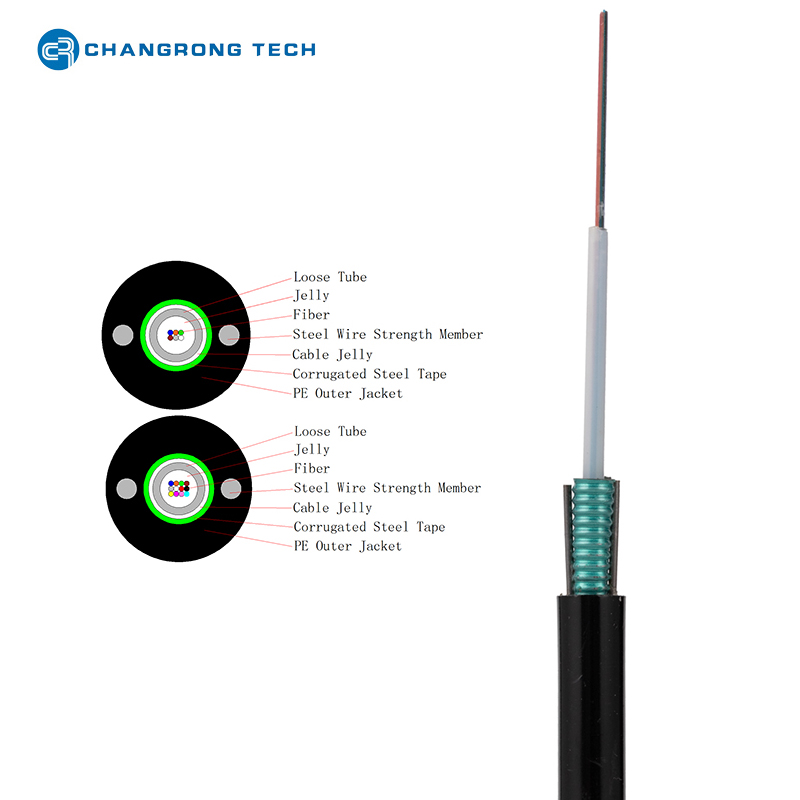

The 2-24 Fibers are positioned in a central loose tube that is made of high-modulus plastic and filled with tube filling compound. The water blocking tape is applied around the central tube for waterproof. Then the tube is armored with a corrugated steel tape (CST) longitudinally. Two parallel steel wires are embedded at both sides as strength member, PE outer jacket is extruded.
Features:
(1) Good mechanical and thermal performance
(2) Hydrolysis resistant loose tube
(3) Tube filling gel ensures critical protection of fiber
(4) Two parallel steel wires ensure tensile strength
(5) Small diameter, light weight for convenient installation
(6) Corrugated steel tape(CST) enhancing moisture-proof
(7) Wide temperature range: usually from - 40 °C to 70 °C. This allows it to be used in various climatic conditions, from cold regions to hot and humid environments, ensuring the stability and reliability of optical signal transmission.
Applications:
Aerial/ Duct Installation for Telecommunication Networks.
Fiber Color Identification
No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Blue | Orange | Green | Brown | Slate | White | Red | Black | Yellow | Violet | Pink | Aqua |
Reel Length: normally 2km, 3km, 4km, 5km (as your request)
Drum options: Fumigated Wooden Drum, Steel-reinforced Wooden Drum, Plywood Drum.
Cable and Drum Marking according to customer’s requirements.
