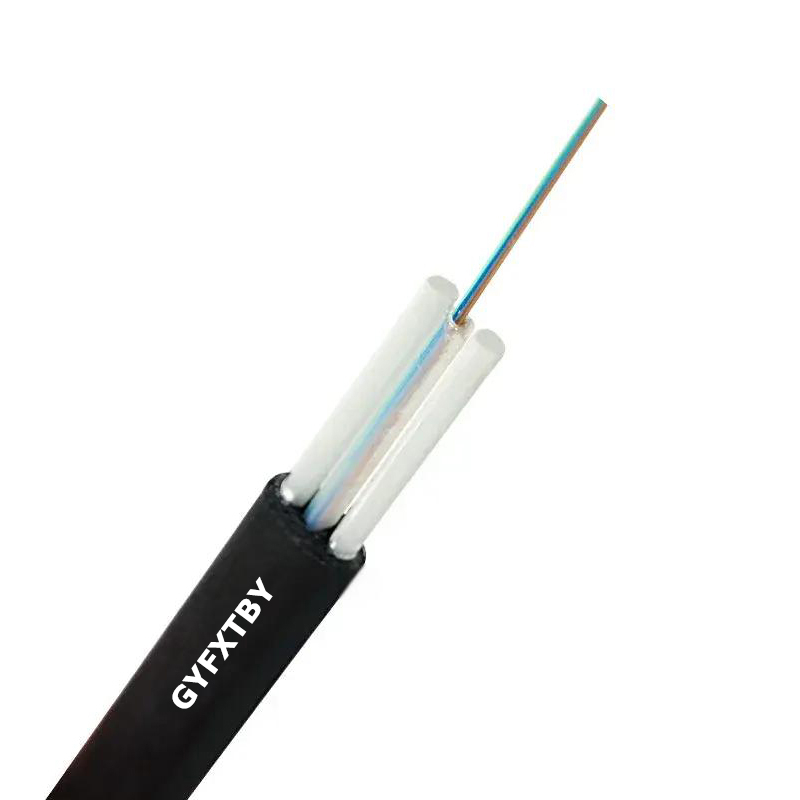

GYFXTBY Non-metallic Oval Flat Drop Fiber Optic Cable
Model | GYFXTBY Oval Drop Cable |
Fiber Counts | 2-12 core |
Fiber Type | ITU-T G.652D |
Buffer Tube | PBT Loose Tube |
Strength Member | Parallel FRP |
Outer Jacket | PE |
Application | Aerial Self-supporting and Duct Installation |
Drum Length | 2km, 3km, 4km |
GYFXTBY is an all-dielectric self-supporting (ADSS) oval flat drop fiber optic cable, specifically designed for the "last-mile" connection in FTTH/FTTx networks. It excels in user access and branch connections, featuring easy stripping, lateral pressure resistance, light weight, and lightning protection. It supports both aerial self-supporting installation and duct routing.
Use: Aerial self-supporting drop/branch connection, enabling last-mile access to residential buildings, offices, or end-users.

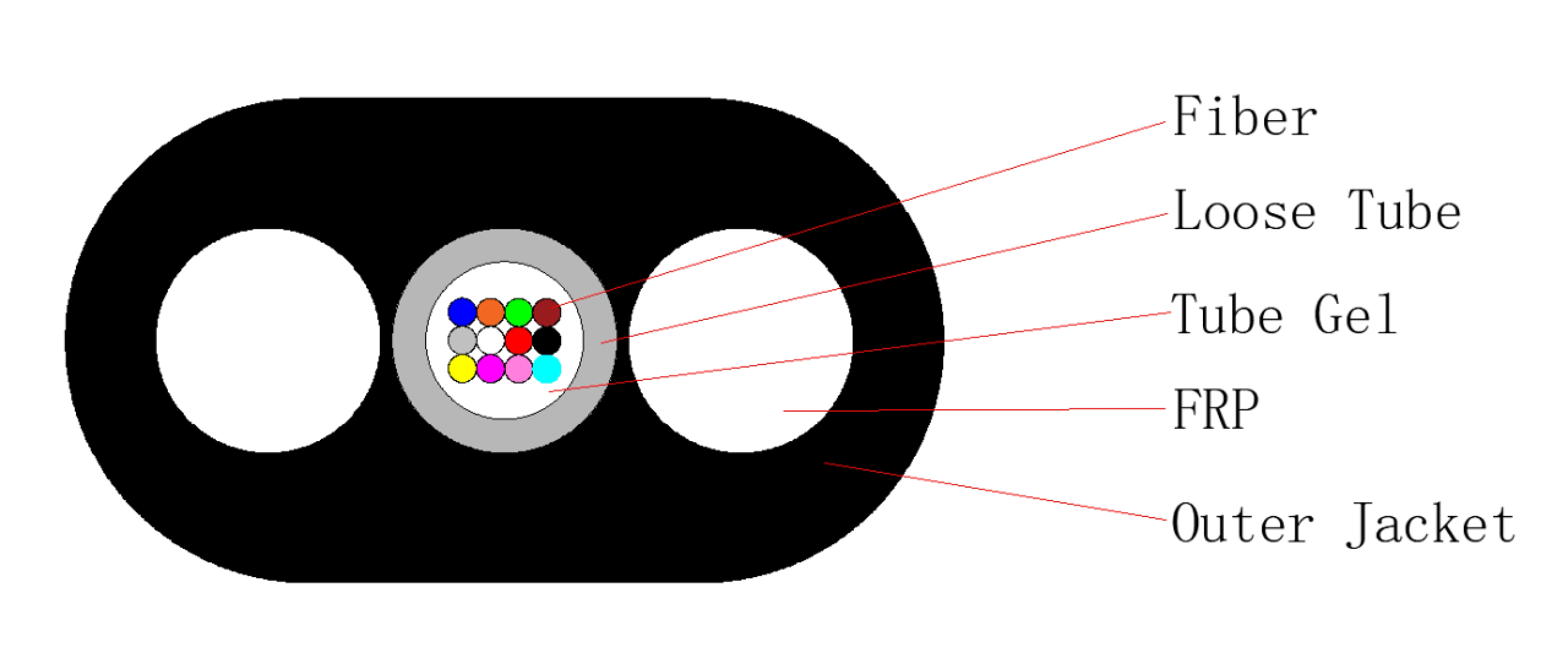

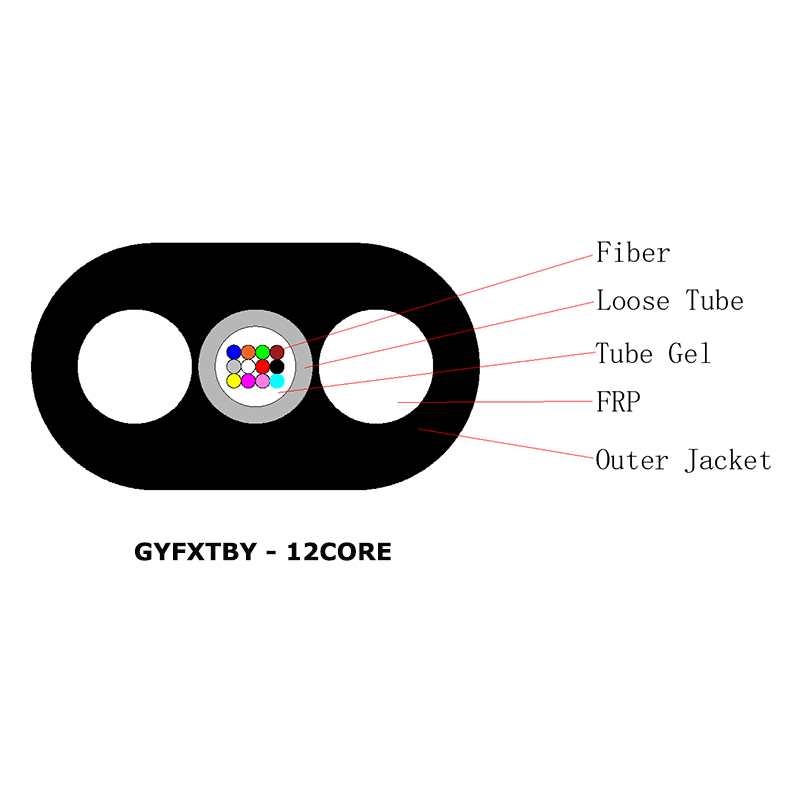

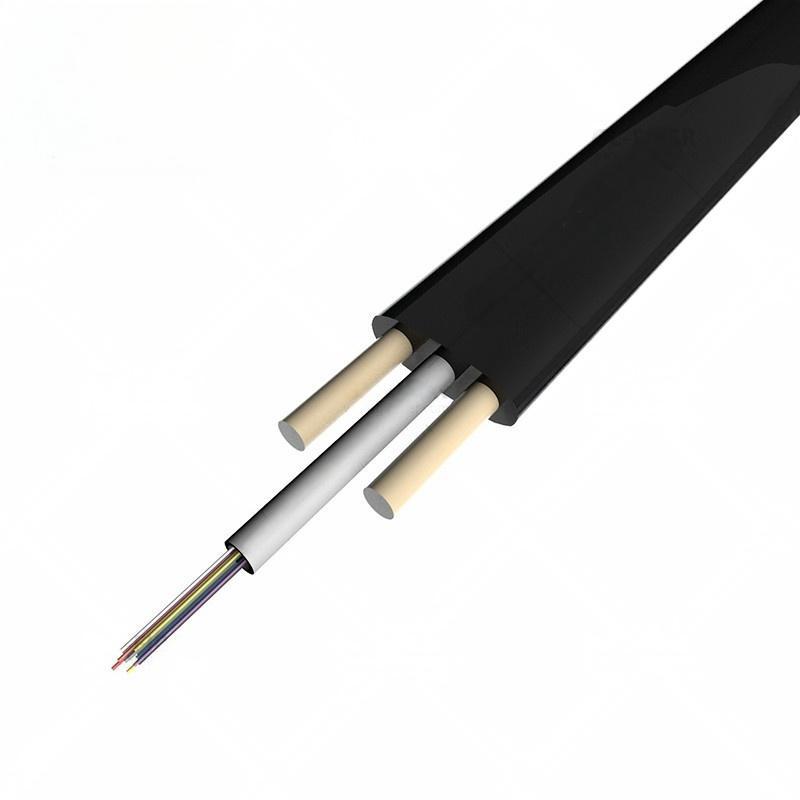

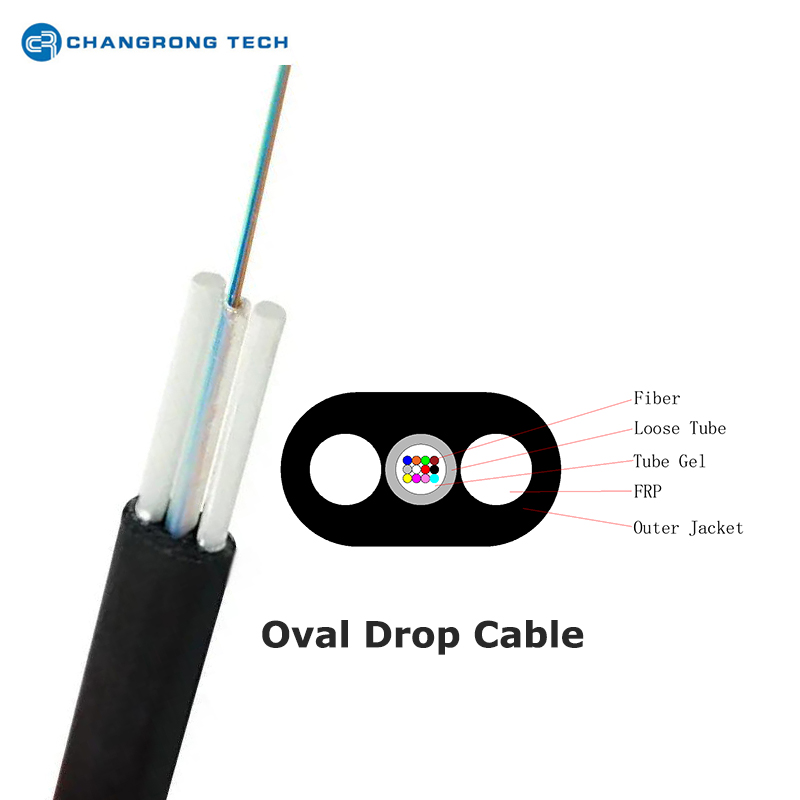

Structure: Oval flat outer shape, composed of a central loose tube, two parallel FRP strength members (on both sides), water-blocking yarn, and a PE outer sheath. Optional rip cords are available for quick on-site stripping.
Fiber Count: Typically 2–24 cores, mainly using single-mode fibers (e.g. G.652D, the most common type for FTTH).
Key Structural Components:
Component | Function |
Optical Fibers | Encased in a high-modulus loose tube filled with fiber paste, providing mechanical cushioning and waterproofing to protect fiber performance. |
Strength Members | Two parallel FRP (Fiberglass Reinforced Plastic) rods placed close to the loose tube. They deliver self-supporting capability and tensile strength for aerial installation. |
Water-Blocking System | Dual protection: paste filling inside the loose tube + water-blocking yarn outside the tube, effectively preventing moisture intrusion. |
Outer Sheath | Black Polyethylene (PE) flat jacket with optional UV resistance. Some models include rip cords to simplify and speed up sheath stripping during field termination. |
Oval Flat & Lateral Pressure Resistance: The flat oval design minimizes sensitivity to trampling or extrusion, making it suitable for installation in narrow spaces (e.g., between building walls) and compatible with special clamps.
Easy Construction: Small diameter, lightweight, and easy-to-strip sheath reduce labor intensity. It streamlines both aerial deployment and indoor/outdoor drop-into-user processes.
All-Dielectric Design: No metal strength members, eliminating the risk of lightning-induced damage—ideal for lightning-prone areas (e.g., rural regions, high-altitude areas).
Environmental & Mechanical Stability: Precise fiber excess length control and high-modulus loose tubes ensure stable optical attenuation (low signal loss) and geometric performance across temperature fluctuations (-40°C to +60°C) and mechanical stress.
FTTH Last-Mile Access: Aerial self-supporting deployment from utility poles to residential buildings, villas, or office floors.
Branch Distribution: Connecting distribution points to end-users in scenarios like rural networks, industrial parks, or residential communities.
Duct/Wall-Mounted Routing: Can be used in conjunction with butterfly drop cables to form an integrated "aerial-to-indoor" solution, e.g., routed through underground ducts or attached to building exteriors.
Fiber Count & Type: Choose 2–24 cores based on user density and future network expansion needs. G.652D single-mode fiber is preferred for its wide compatibility and low loss.
Aerial Installation: Use matching wedge clamps for fixation; prioritize self-supporting routing. Avoid excessive tension or small-radius bending (minimum bend radius: ≥10x cable diameter for static use, ≥20x for dynamic use).
User-End Protection: When routing into buildings, use protective conduits or concealed wall-mounted channels. Ensure waterproof sealing at the entry point (e.g., using waterproof glands) to prevent water or dust ingress.
FAQ:
What are the typical installation methods for GYFXTBY fiber optic cable?
GYFXTBY, as an all-dielectric self-supporting (ADSS) oval flat drop cable, is designed for flexibility in FTTH/FTTx "last-mile" scenarios. Its installation methods are tailored to its structural features (lightweight, flat shape, FRP reinforcement) and application needs (aerial, duct, or direct indoor/outdoor routing). Below are the 4 most common installation methods, along with key operational details and precautions.
Pre-installation Preparation:
Inspect utility poles (stability, load capacity) and clear obstacles (tree branches, existing cables) along the route.
Prepare tools: wedge clamps (matched to GYFXTBY cable's flat shape), cable pay-off stands, tension meters, and fiber optic strippers.
Cable Routing & Tension Control:
Deploy the cable from the pay-off stand, maintaining a constant tension (typically 50–100 N, depending on core count) to avoid overstretching.
Use wedge clamps to fix the cable to utility poles: position clamps at pole tops or designated brackets, ensuring the flat side of the cable is aligned with the clamp to prevent slippage.
Span & Sag Adjustment:
For short spans (≤50 meters, common in residential areas), set a small sag (5–10 cm) to accommodate temperature changes (expansion in summer, contraction in winter).
For longer spans (50–100 meters), use tension meters to fine-tune sag and avoid excessive stress on the cable.
Termination & Protection:
At the end of the aerial span (e.g., near a building), use a cable entry box to transition the cable from aerial to indoor/duct routing. Seal the box to prevent water intrusion.
Avoid small-radius bending (minimum static bend radius: ≥10× cable diameter; dynamic: ≥20×) during installation.
Keep the cable at least 0.5 meters away from high-voltage power lines to reduce electromagnetic interference (EMI), even though GYFXTBY is all-dielectric.
Duct Inspection & Preparation:
Check duct integrity (no cracks, blockages) using a duct rodder. Clean the duct with compressed air or a duct brush to remove dust or debris.
Install a pull rope (nylon or polyester) inside the duct using a duct rodder—this rope will pull the GYFXTBY cable through.
Cable Pulling:
Attach the cable’s leading end to the pull rope using a cable pulling grip (ensure a secure connection to avoid detachment mid-pull).
Use a manual or electric cable puller to pull the cable at a steady speed (≤5 meters per minute). For long ducts (>100 meters), add intermediate pull points to reduce friction.
Duct Sealing & Marking:
After pulling, seal both ends of the duct with waterproof tape or duct seals to prevent water, rodents, or debris from entering.
Mark duct access points (e.g., manholes, handholes) with labels indicating "GYFXTBY Fiber Optic Cable" for future maintenance.
Use a lubricant (compatible with HDPE sheaths) for long or curved ducts to reduce friction and avoid sheath damage.
Do not pull the cable at an angle—keep it aligned with the duct axis to prevent kinking.
Route Planning:
Mark the wall route (e.g., along corners, under eaves) to avoid obstacles (electrical outlets, water pipes) and ensure a neat appearance.
Fixing with Cable Clips:
Use adhesive cable clips (for smooth walls like concrete or tile) or screwed clips (for rough walls like brick) matched to GYFXTBY’s flat width.
Space clips 30–50 cm apart to secure the cable and prevent sagging. Ensure the cable is not compressed by the clips (avoid over-tightening).
Entry into Buildings:
Drill a small hole (diameter: 10–15 mm) through the wall at the entry point. Install a waterproof grommet in the hole to protect the cable from water and sharp edges.
Pull the cable through the grommet and into the indoor distribution box (e.g., ONU box).
For outdoor walls, use UV-resistant cable clips to prevent degradation from sunlight.
Avoid mounting the cable near heat sources (e.g., air conditioner outdoor units) to prevent sheath softening.
Trench Digging:
Dig a trench 60–80 cm deep (to avoid damage from gardening tools or small animals) and 10–15 cm wide. For rocky soil, line the trench with a sand bed (5 cm thick) to cushion the cable.
Cable Protection & Placement:
Wrap the GYFXTBY cable in a corrugated HDPE protection tube (diameter: 20–30 mm) to resist impact and moisture.
Place the protected cable in the trench, ensuring no kinks. Cover the cable with another 5 cm of sand, then backfill the trench with soil.
Marking:
Bury warning tapes (20 cm below the ground surface) along the trench to alert future excavators. Install ground markers at both ends of the buried section.
This method is only recommended for spans ≤30 meters. For longer distances, use dedicated direct-burial cables (e.g., GYTA53) instead.
Avoid burying near water tables or areas prone to flooding, as prolonged moisture may degrade the cable's sheath over time.

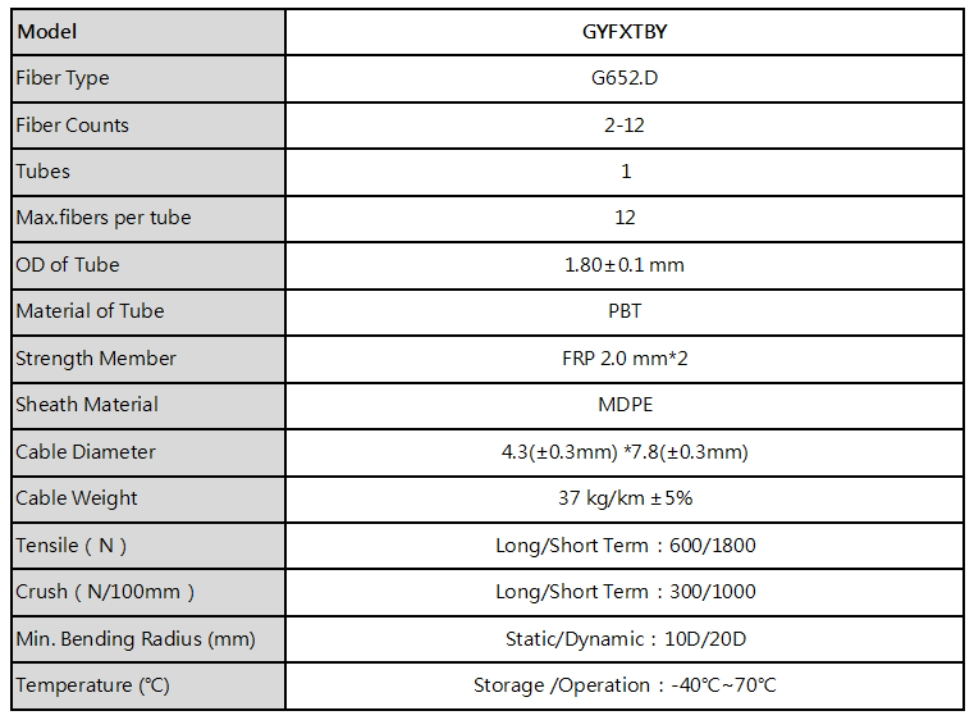

1. Structure Parameter
Model | GYFXTBY |
Fiber Type | G652.D |
Fiber Counts | 2-12 |
Tubes | 1 |
Max.fibers per tube | 12 |
OD of Tube | 1.80±0.1 mm |
Material of Tube | PBT |
Strength Member | FRP 2.0 mm*2 |
Sheath Material | MDPE |
Cable Diameter | 4.3(±0.3mm) *7.8(±0.3mm) |
Cable Weight | 37 kg/km ±5% |
Tensile(N) | Long/Short Term:600/1800 |
Crush(N/100mm) | Long/Short Term:300/1000 |
Min. Bending Radius (mm) | Static/Dynamic:10D/20D |
Temperature (℃) | Storage /Operation:-40℃~70℃ |
2. Fiber Parameter G.652D (after cable)
Item | Characteristics | Unit | Value | |
Geometrical | Cladding Diameter | μm | 125.0±1.0 | |
Cladding Non-circularity | % | ≤1.0 | ||
Core-Cladding Concentricity Error | μm | ≤0.6 | ||
Core Non-circularity | % | ≤12 | ||
Coating Diameter | μm | 245±10.0 | ||
Coating-Cladding Concentricity Error | μm | ≤12 | ||
Curl Radius | m | ≥4 | ||
Attenuation | Zero Dispersion Slope S0 | ps/nm²km | ≤0.092 | |
1625nm Attenuation | dB/km | ≤0.30 | ||
1383+/-3nm Attenuation | dB/km | ≤0.36 | ||
1310nm Attenuation | dB/km | ≤0.36 | ||
1550nm Attenuation | dB/km | ≤0.22 | ||
Point Discontinuity (1310nm & 1550nm) | dB | ≤0.05 | ||
Attenuation at 1285nm ~ 1330nm compared with 1310nm | dB | ≤0.03 | ||
Attenuation at 1485nm ~1580nm compared with 1550nm | dB | ≤0.03 | ||
Zero Dispersion Wavelength λ0 | nm | 1300≤λ0≤1324 | ||
Dispersion | 1285~1339nm Dispersion | ps/nm/km | ≤3.5 | |
1271~1360nm Dispersion | ps/nm/km | ≤5.3 | ||
1550nm Dispersion | ps/nm/km | 13.3~18.6 | ||
Nominal MFD Value(1310nm) | μm | 8.6-9.5 | ||
MFD Tolerance | μm | ±0.4 | ||
Bending | Cable Cut-off Wavelength λcc | nm | ≤1260 | |
1550nm Macro-bend Induced Attenuation( 100turns with diameter of 60mm ) | dB | ≤0.5 | ||
PMD | Q | 0.01% | ||
Maximum Individual Fiber | ps/√km | 0.2 | ||
M | 20 cables |
Reel Length:
normally 2km, 3km, 4km, 5km (as your request)
Drum options:
Fumigated Wooden Drum
Steel-reinforced Wooden Drum
Plywood Drum.
Cable and Drum Marking according to customer's requirements.
