GYFXTC8Y Mini FIG8 Aramid Yarn Reinforced Aerial Fiber Cable

GYFXTC8Y Mini FIG8 Aramid Yarn Reinforced Aerial Self-supporting Fiber Optic Cable

GYFXTC8Y is a mini "figure-8" (FIG8) aerial self-supporting fiber optic cable reinforced with aramid yarn. It adopts a central loose tube structure, making it particularly suitable for FTTH (Fiber to the Home) aerial self-supporting deployment. Its core advantages include light weight, easy installation, excellent environmental resistance, and good bending performance.

Description:

GYFXTC8Y fiber optic cable is a type of self-supporting figure-8 aerial cable with stranded steel messenger and Aramid yarn armored, designed for outdoor long-distance communication.

• Shape & Integration: Features an integrated "figure-8" cross-section, combining two key components in one structure: the loose tube optical unit (for fiber protection and transmission) and the messenger wire (steel stranded, for load-bearing during aerial suspension). This compact design eliminates the need for additional supporting cables, simplifying aerial deployment.

• Reinforcement & Protection: Aramid yarn (a high-strength, lightweight synthetic fiber) is evenly wrapped between the cable core and outer sheath to enhance tensile strength and buffer external impacts. The outer layer is made of polyethylene (PE) sheath, which provides reliable protection against outdoor environmental factors such as UV radiation, moisture, and mechanical abrasion.

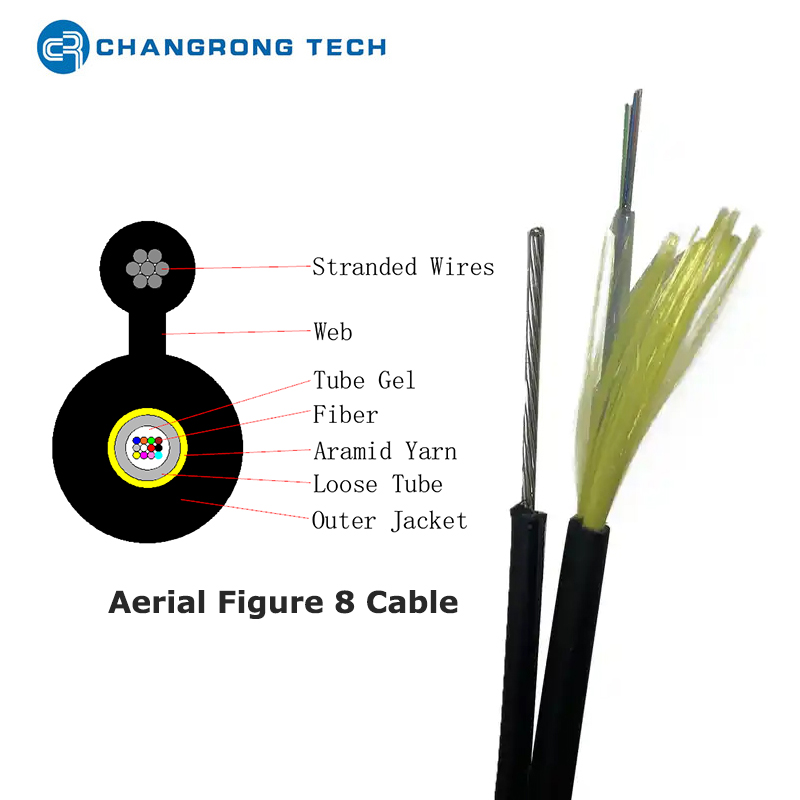

Detailed Structure:

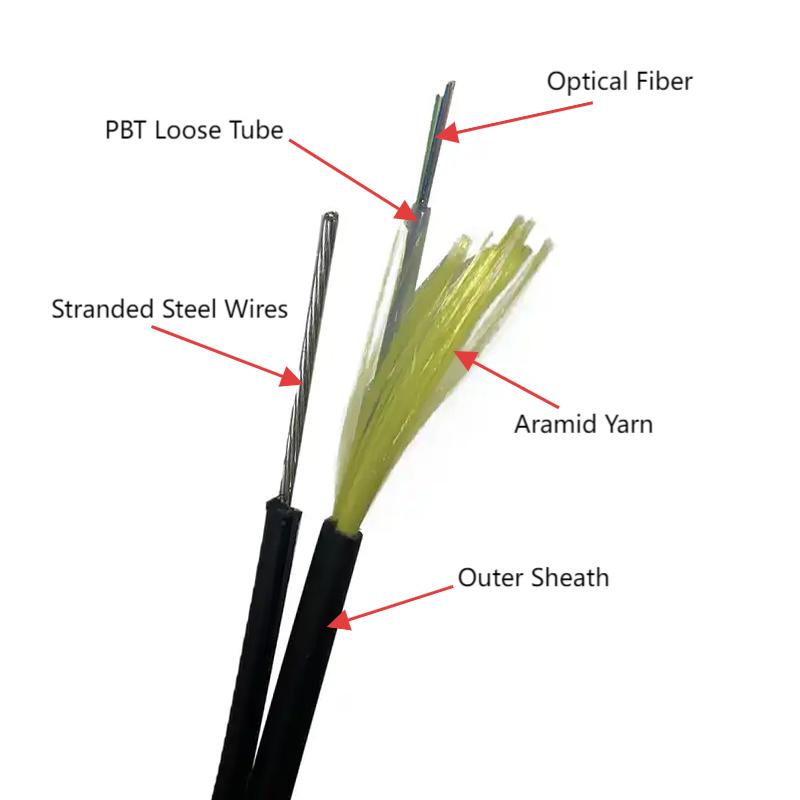

GYFXTC8Y with Stranded Wire Messenger

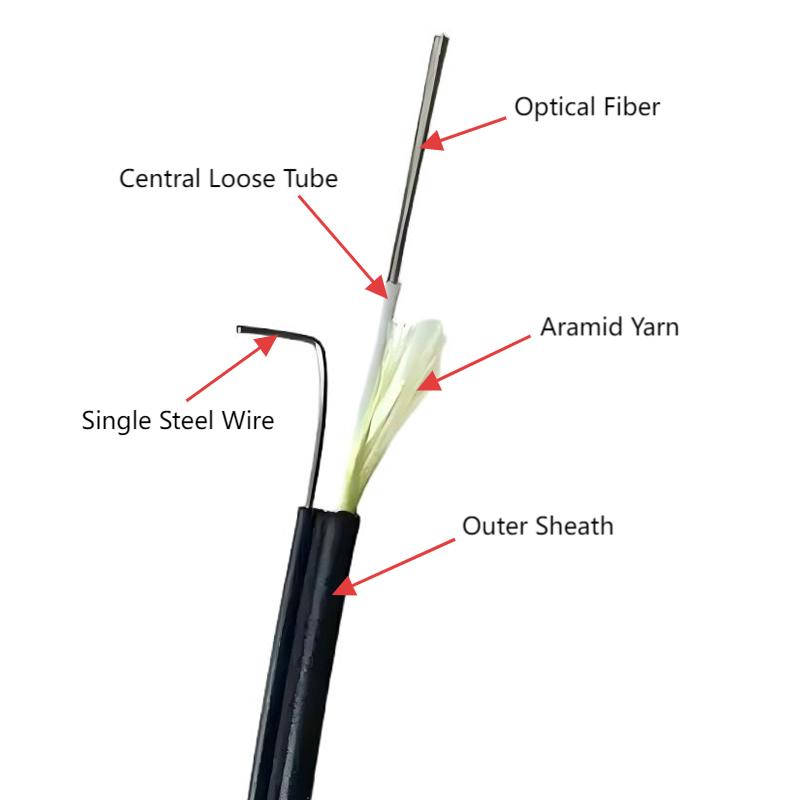

GYFXTC8Y with Single Wire Messenger

Key Characteristics of GYFXTC8Y Mini FIG8 Aerial Cable：

• Mechanical & Thermal Stability: The cable's fiber excess length is precisely controlled during manufacturing, balancing tensile resistance (to withstand aerial tension) and thermal cycle performance (stable transmission under temperature fluctuations from -40°C to +70°C, typical working range).

• Water Blocking Performance: Double water-blocking design—(1) gel filling in the loose tube; (2) water-swellable materials (optional) in the cable core gap—achieves reliable longitudinal water blocking, preventing moisture from spreading along the cable length.

• Excellent Bending Performance: With a small outer diameter (mini design) and low bending radius (static bending radius ≈ 10× cable diameter; dynamic bending radius ≈ 20× cable diameter), it can adapt to narrow installation spaces (e.g., between buildings, along utility poles) without compromising fiber performance.

• Long Service Life & Compliance: Designed for a service life of ≥ 30 years under normal outdoor conditions. It complies with international and industry standards, such as IEC 60794-1 (International Electrotechnical Commission) and YD/T 1155 (China's communication industry standard), ensuring compatibility and reliability.

• Lightweight & Easy Installation: Compared to traditional aerial cables, its mini size and light weight reduce the load on utility poles. The integrated "8" shape allows for one-time suspension and fiber deployment, shortening installation time and labor costs.

Applications:

• FTTH Aerial Deployment: Primary application for connecting central offices (COs) to residential buildings or individual homes. It is ideal for self-supporting installation across short to medium spans (e.g., between utility poles, along building exteriors) in urban, suburban, or rural areas.

• Inter-building Connectivity: Used for fiber links between adjacent buildings (e.g., campus networks, industrial parks) where aerial routing is more efficient than underground piping.

• Hybrid Installation Scenarios: Compatible with auxiliary deployment methods such as duct installation (pulling through existing underground ducts) or short-distance direct burial (in areas where aerial suspension is not feasible), making it versatile for complex network topologies.

Selection & Installation Tips:

• Fiber Type & Core Count: Choose single-mode fibers (G.652D/G.657A1) for long-distance (≥10 km) FTTH links; select multi-mode fibers (OM3/OM4) for short-distance, high-bandwidth applications (e.g., enterprise LANs). Core counts (2–24 cores) should match the number of end-users or devices.

• Span & Sag Control: The recommended maximum aerial span is ≤ 50 meters. To avoid excessive tension or sag, maintain a sag ratio of ≥ 1% (sag length / span length) during installation, especially in areas prone to strong winds or ice accumulation.

• Bending Radius Compliance: Strictly adhere to the minimum bending radius (static ≥10D, dynamic ≥20D, where D = cable outer diameter) during pulling or routing to prevent fiber micro-bending and signal attenuation.

• Environmental Adaptation: Confirm the cable's temperature range (-40°C to +70°C for standard models) matches the local climate. For coastal areas with high salt spray, opt for cables with stainless steel messenger wires and anti-corrosion PE sheaths.

FAQ:

How does the aramid yarn reinforcement affect the performance of GYFXTC8Y cable?

1. Significantly Enhances Tensile Strength Without Adding Excessive Weight

• Mechanical synergy with the messenger wire: The steel messenger wire in the “8” shape bears the main structural tension (e.g., supporting the cable’s total weight across spans). Aramid yarn acts as a secondary but critical tensile buffer: it distributes localized tension (e.g., sudden wind gusts or minor installation pulls) evenly across the cable core, preventing stress concentration on the central loose tube.

• Weight advantage: Unlike steel wire reinforcements (which add bulk and load to utility poles), aramid yarn's low density keeps the GYFXTC8Y “mini” (small outer diameter, light weight). This reduces the load on poles and simplifies manual installation (no heavy lifting equipment needed for short spans).




2. Protects Optical Fibers from Mechanical Damage (Micro-Bending & Crushing)

• Resists radial compression: When the cable is accidentally squeezed (e.g., during installation, or by falling debris), the aramid yarn's interwoven structure absorbs and disperses compressive forces, preventing the loose tube from deforming and pressing against the fibers.

• Minimizes micro-bending: During aerial deployment, the cable may undergo slight bending (e.g., sagging or routing around obstacles). Aramid yarn’s elasticity maintains consistent spacing between the sheath and loose tube, avoiding uneven pressure on the fibers that would cause micro-bending. This ensures stable optical performance (low attenuation) over the cable's lifetime.




3. Improves Flexibility and Bend Resistance for Tight Installation Spaces

• Low bending radius compatibility: The cable's rated minimum bending radius (static ≥10D, dynamic ≥20D, where D = outer diameter) relies on aramid yarn's flexibility. Unlike rigid steel reinforcements (which can crack the sheath or damage fibers if bent too tightly), aramid yarn bends elastically, allowing the cable to adapt to tight turns during installation.

• Prevents “kinking”: When the cable is bent sharply (a risk in complex routing), aramid yarn's tensile integrity keeps the cable structure intact—avoiding permanent kinks that would destroy fiber continuity.




4. Enhances Environmental Durability for Long-Term Outdoor Use

• Hydrolysis and corrosion resistance: Unlike organic fibers (e.g., nylon) that degrade in humid environments, or metal reinforcements (e.g., steel) that rust, aramid yarn is inherently resistant to hydrolysis, salt spray, and industrial pollutants. This ensures its tensile strength does not weaken over decades of outdoor use.

• Thermal stability: Aramid yarn maintains its mechanical properties across the GYFXTC8Y’s standard operating temperature range (-40°C to +70°C). It does not become brittle in extreme cold or soften in high heat—preventing reinforcement failure that would expose the fibers to stress.

5. Supports Consistent Optical Performance (Reduces Signal Attenuation)

• Mechanical attenuation: From fiber bending, crushing, or stretching.

• Environmental attenuation: From moisture intrusion (blocked by the loose tube, but aramid yarn prevents tube deformation that could compromise the water-blocking grease seal).
