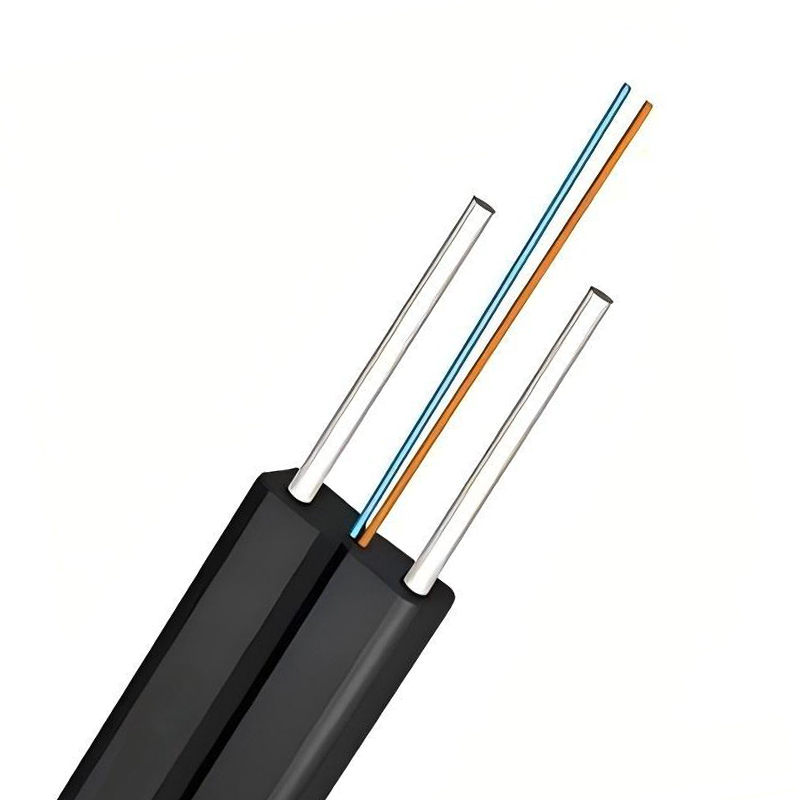

GJXH 2 Steel Wires Indoor FTTH Drop Cable Bow-type

Description:

GJXH is a kind of indoor bow-type FTTH Drop Fiber Optic Cable.

Fiber Type: G652D, G657A1, G657A2

Available Fiber Count: 1, 2, 4, 6 Cores

Reel Length: 1km, 2km

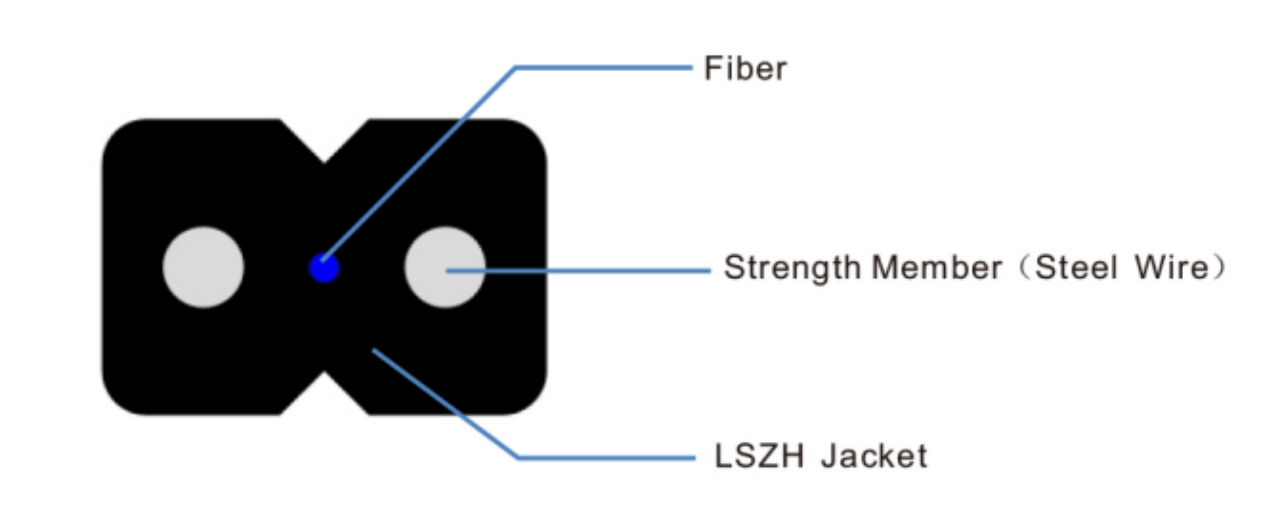

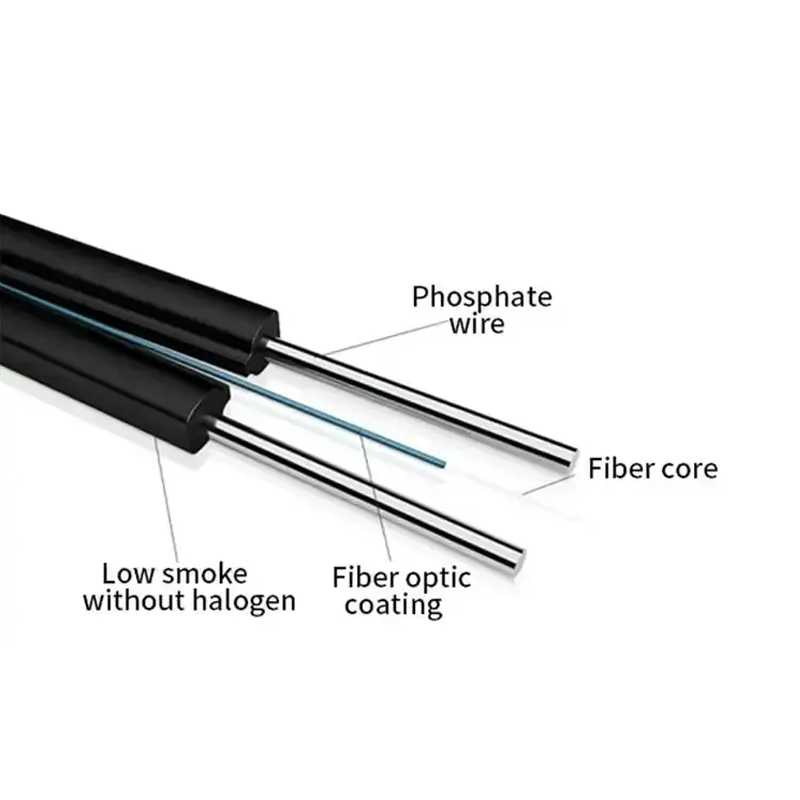

The optical fiber unit is positioned in the center. Two parallel steel wires as strength members are placed at both sides, then a black or colored LSZH jacket is extruded outside.

Features:

(1) Special bending insensitive fiber provides high bandwidth and excellent communication transmission property

(2) Light weight, small diameter and high practicability

(3) Grooved design, easy to strip and splice, simplified installation and maintenance

(4) Two parallel steel wire strength members ensure good performance of tensile strength

(5) Low smoke, zero halogen and flame retardant jacket, environment-friendly, good safety

Applications:

Indoor FTTH (Fiber To The Home) Drop Using

High performance optical network operating

Fiber Color Identification

Reel Length: 1km or 2km

Drum options: Plywood Drum or Plastic Drum

(Cable and Drum Marking according to customer’s requirements.)

Package options: Carton Package/ Pallet Package/ Pallet+Carton Package
