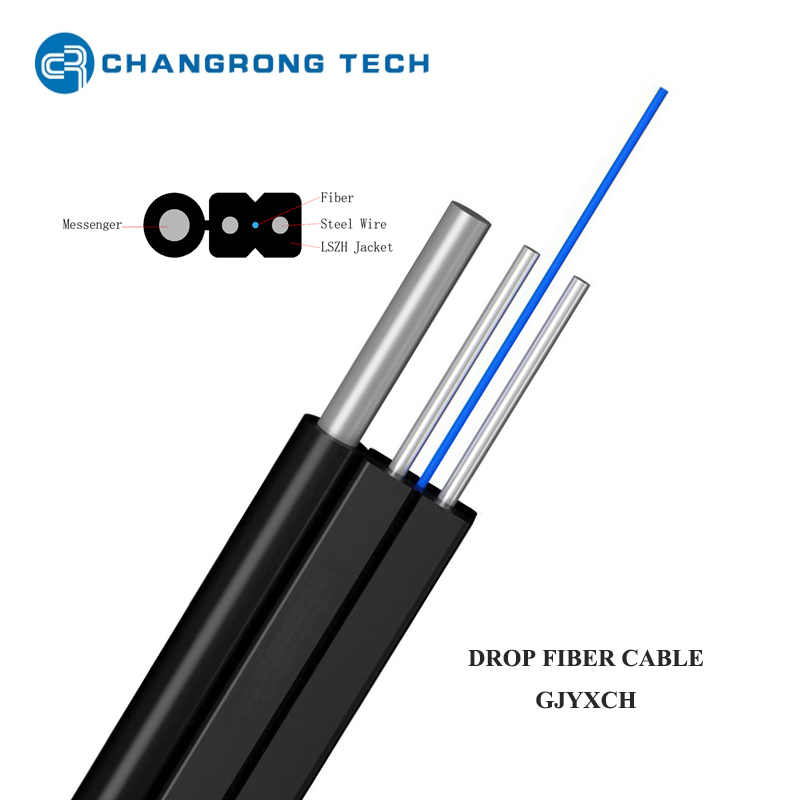

GJYXCH 3 Steel Wires Outdoor FTTH Drop Cable

GJYXCH Steel Messenger Wire Aerial Self-Supporting Mini FIG8 FTTH Drop Fiber Optic Cable

Overview:

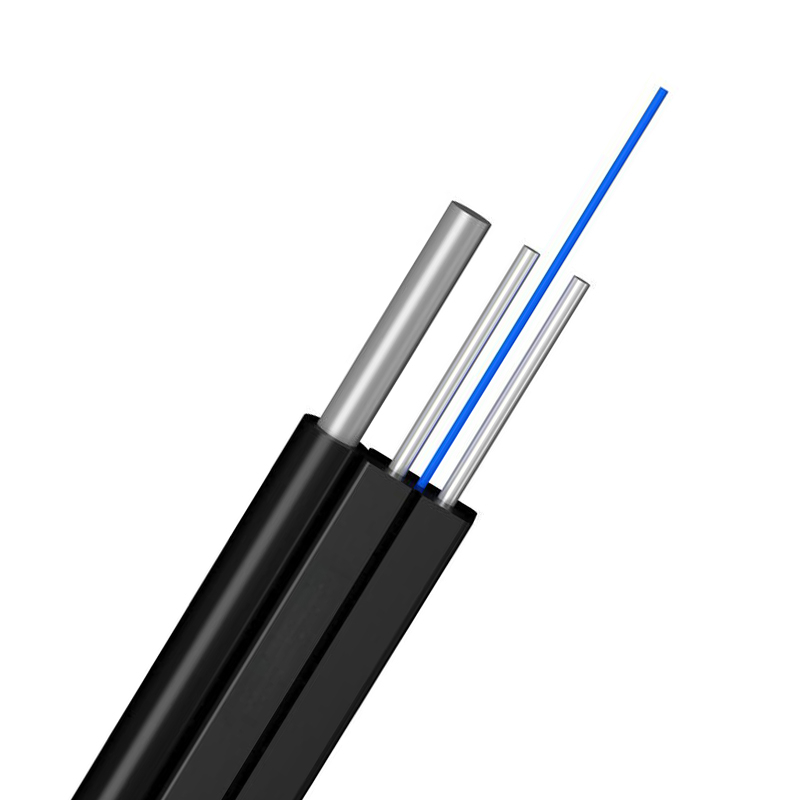

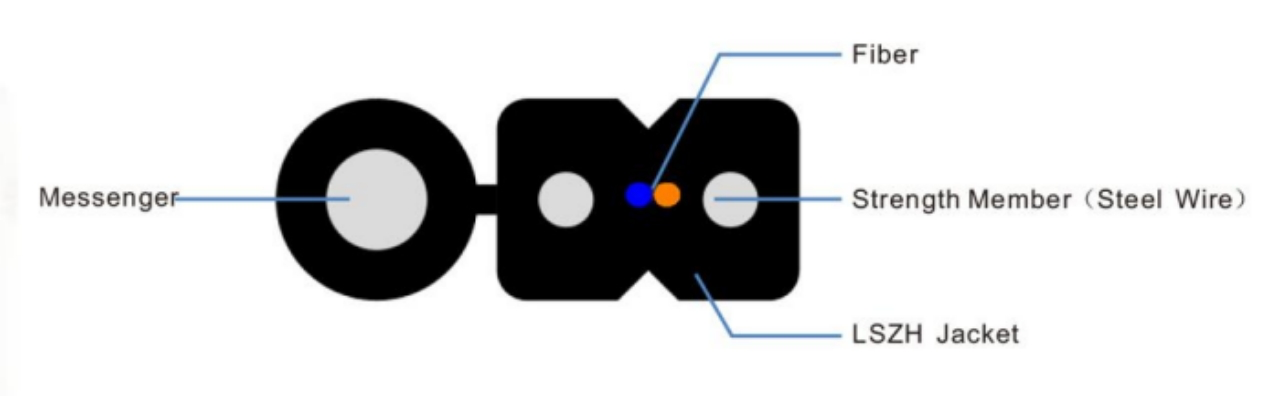

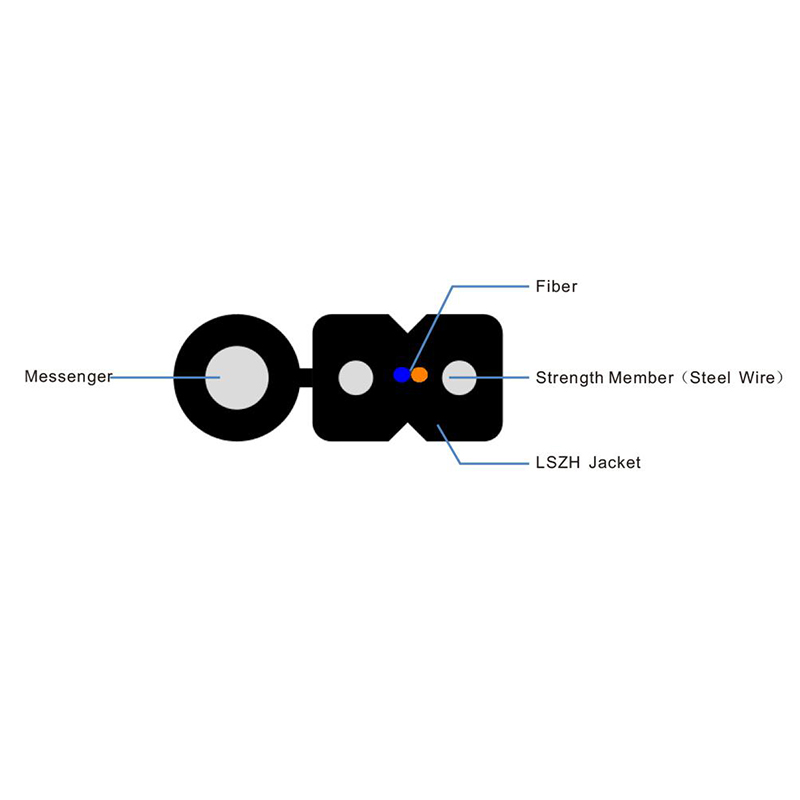

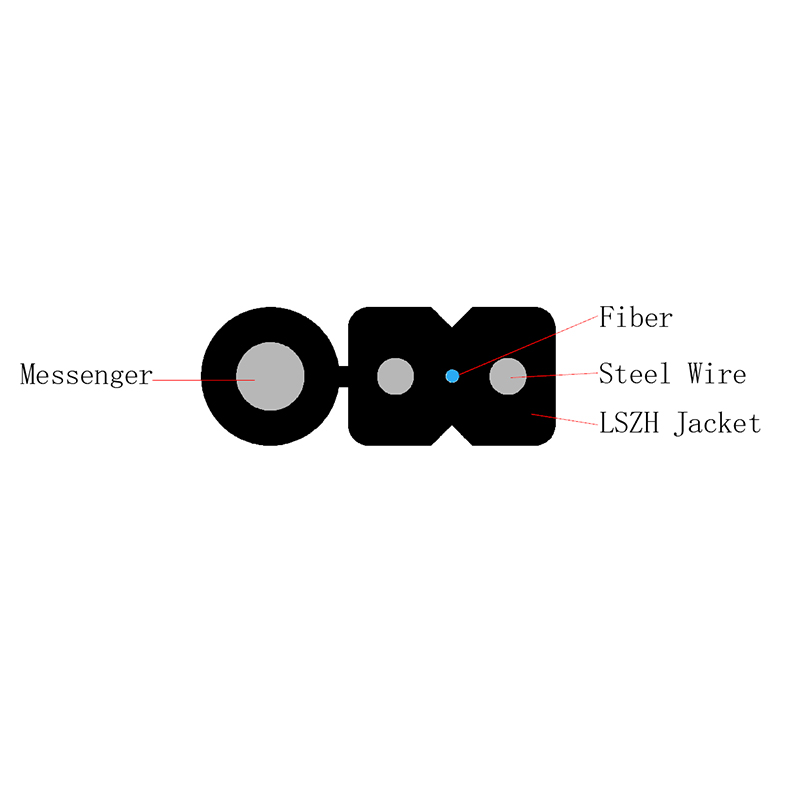

Typical Structure:

1. Fiber Core (Center): 1–4 core single-mode fibers (common types: G.657.A2/A1 or G.652.D).

• G.657.A2: Excellent bend resistance (minimum bend radius: 7.5 mm static / 15 mm dynamic), ideal for tight routing in indoor/outdoor transitions.

• G.652.D: Universal single-mode fiber, compatible with long-haul and access networks.

2. Strength Members: Two parallel rods (steel or FRP) placed symmetrically on both sides of the fiber core, providing radial compression resistance and anti-bending support.
3. Steel Messenger Wire: An independent high-tensile steel wire integrated into one "lobe" of the figure-8 structure, bearing the main tension during aerial installation (e.g., spanning between utility poles).
4. Sheath: Black LSZH outer sheath, covering the fiber core, strength members, and connecting to the messenger wire. It provides UV resistance, water resistance, and environmental protection.

Features:

1. Self-Supporting Aerial Capability: The integrated steel messenger wire eliminates the need for additional suspension cables, reducing installation complexity and cost for outdoor aerial spans.

2. Superior Bend Performance: G.657.A2 fiber supports small-radius bending, enabling flexible routing around corners, walls, or tight spaces during last-mile  (home entry).

3. Easy Installation & Termination: The butterfly-shaped structure has a pre-designed groove for quick longitudinal stripping, allowing fast termination with fusion splicers or mechanical splice-on connectors (SOCs).

4. Environmental & Safety Compliance: LSZH sheath produces low smoke and zero toxic halogens when burned, making it safe for indoor/outdoor transition areas (e.g., building shafts, basements).

5. Broad Standard Compatibility: Meets international and industry standards, including YD/T 1997-2009 (China), IEC 60794 (International Electrotechnical Commission), and GR-409/ICEA-596 (North America), ensuring interoperability with global FTTH systems.

6. Wide Temperature Range: Operates reliably in harsh environments, typically from -40 °C to +70 °C, suitable for most climates.

Applications:

1. FTTH Last-Mile Access: Aerial deployment from neighborhood distribution points (e.g., utility poles, fiber cabinets) directly to residential buildings or individual homes.

2. Short-Distance Outdoor Connections: Interconnection between small-scale network nodes in industrial parks, residential communities, or campuses (span length typically ≤ 50 meters).

3. Indoor-Outdoor Transition: Vertical routing in building shafts or horizontal wall-mounted installation, bridging outdoor aerial lines to indoor fiber outlets.

4. Rural/Suburban Fiber Networks: Cost-effective solution for areas with sparse population, where aerial installation is more feasible than underground cabling.
