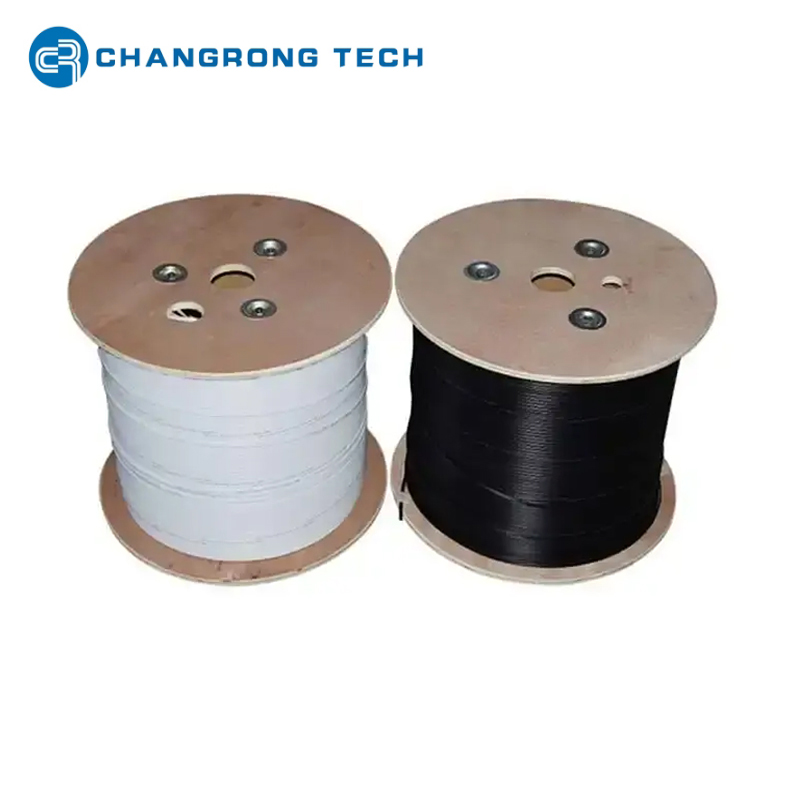

GJXFH 2 FRP Indoor Bow-type FTTH Drop Cable

GJXFH Indoor Bow-type FTTH Drop Cable with Two Non-metallic Strength Member

Overview:

GJXFH TWO FRP strength member Indoor bow-type FTTH Drop Fiber Optic Cable is a kind of optical cable specially designed for indoor fiber-to-the-home (FTTH) applications.

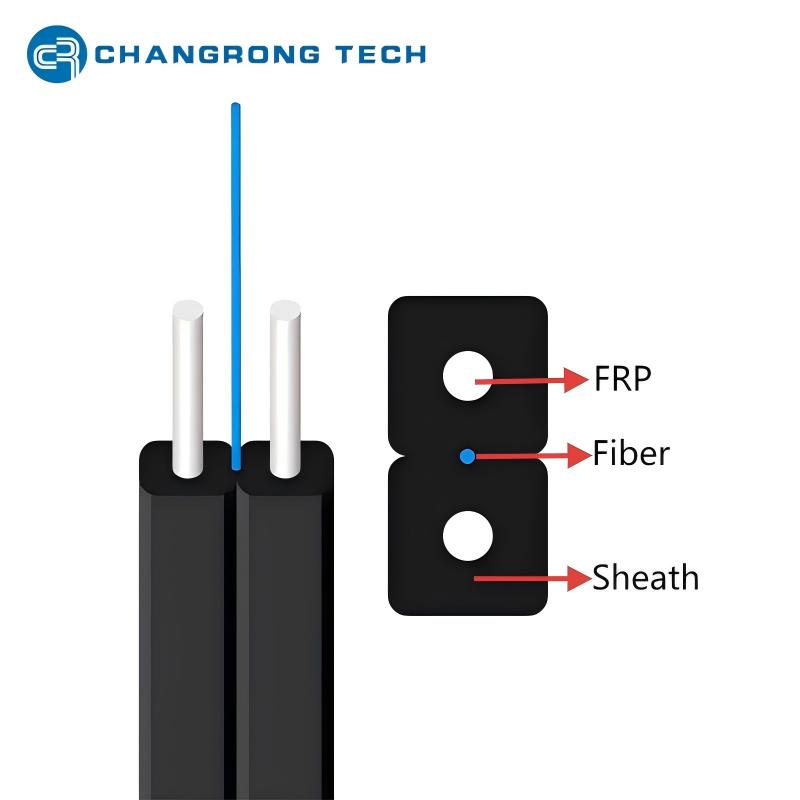

Structure of Bow-type FTTH Drop Cable GJXFH:

From the cross-section view, it has a shape similar to a Butterfly. The optical fiber is located between the two FRP strength members and wrapped inside the LSZH flame-retardant sheath. The typical dimension of the cable is 3.0×2.0mm.

• Fiber Core: Located in the center of the cable, it usually adopts G.657 series optical fibers, such as G.657A1 or G.657A2. These fibers have good bending resistance.

• Strength Members: There are two parallel FRP strength members on both sides of the optical fiber. FRP has the characteristics of high strength, corrosion resistance, and non-conductivity, which can effectively protect the optical fiber and bear the tension and pressure during the laying process of the cable.

• Sheath: The outer layer is wrapped with a Low-Smoke Halogen-Free (LSZH) sheath. This material has the characteristics of low - smoke, zero - halogen, and flame - retardant, which is environmentally friendly and has good safety performance, suitable for indoor use.

Features of FTTH Drop Fiber Optic Cable GJXFH:

• Good Bending Resistance: Adopting optical fibers with a small bending radius (such as G.657), it can maintain good optical performance under small - bending - radius conditions, reducing the additional loss caused by bending.

• Light Weight: With a simple structure and light weight, it is easy to carry and deploy, ensuring strong practicality.

• Easy to Install: The unique groove design makes the cable easy to strip without the need for special tools, which simplifies the installation process and reduces the installation cost. At the same time, it is also easy to fix, which is convenient for construction.

• High Mechanical Reliability: The FRP strength members provide the cable with high tensile strength and crush resistance, enabling it to withstand a certain degree of mechanical stress during use and installation without damage to the optical fiber.

• Environmentally Friendly: The LSZH sheath meets environmental protection requirements, does not contain harmful components, and is in line with the RoHS standard, which is safe for the indoor environment and human health.

Applications:

• FTTH Projects: It is mainly used for the indoor part of FTTH networks, such as indoor horizontal and vertical cabling, which can realize the connection from the optical distribution frame to the user's terminal.

• Indoor Cabling: It can be used for indoor cabling under carpets and along corners, adapting to various complex indoor wiring environments.

• FTTB and FTTO: In addition to FTTH, it is also applicable to office (FTTO) and fiber - to - the - building (FTTB) scenarios, which are responsible for the user - side introduction section of the optical cable in these optical fiber access networks.
