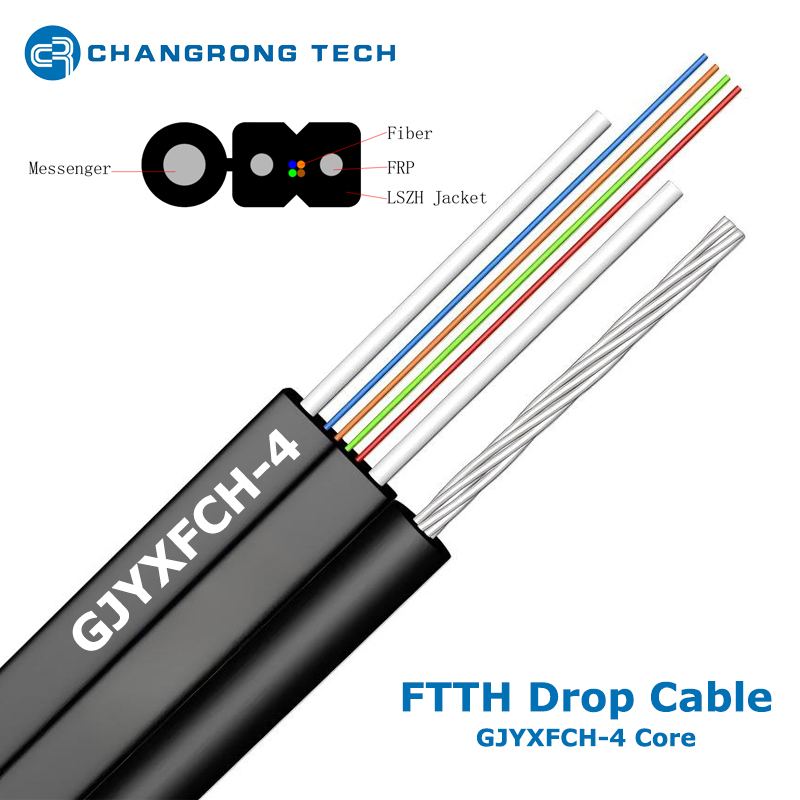

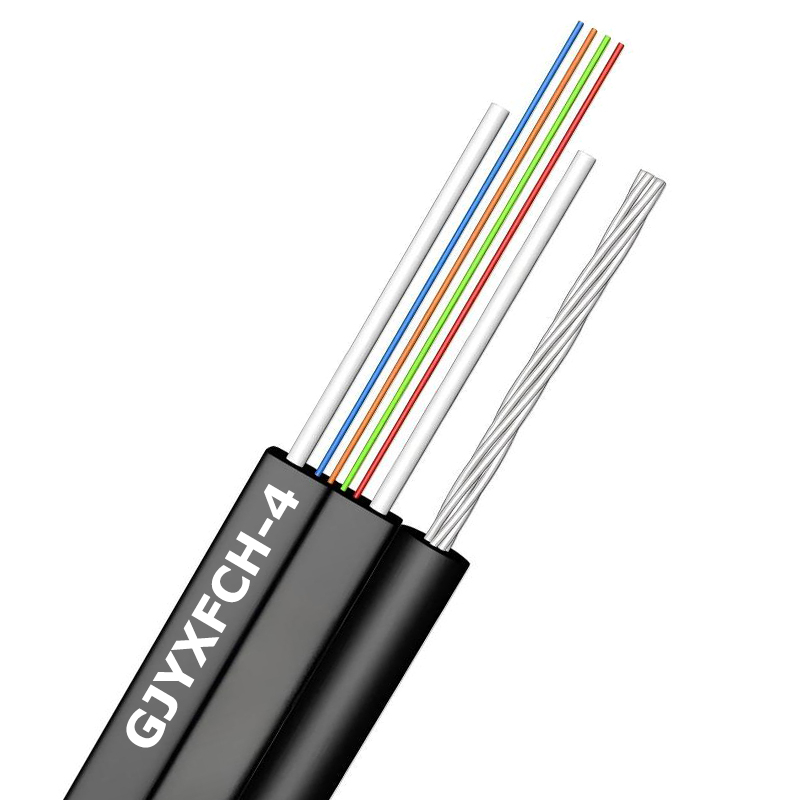

GJYXFCH 1/2/4/6 Core Single-Mode Non-metallic FRP Mini FIG8 Self-Support FTTH Drop Fiber Optic Cable 5.2*2.0mm Indoor/Outdoor Use
| Model | FTTH Drop Cable GJYXFCH |
| Fiber Counts | 1, 2, 4, 6 Core |
| Fiber Type | G652D, G657A1, G657A2 |
| Messenger Wire | Galvanized/ Phosphated Steel Wire 1.0mm |
| Strength Member | FRP 0.5mm |
| Outer Sheath | LSZH(Low-Smoke-Zero-Halogen) jacket |
| Cable Size | 5.2*2.0 mm |
| Reel Length | 1km, 2km |
| Application | Outdoor / Indoor |

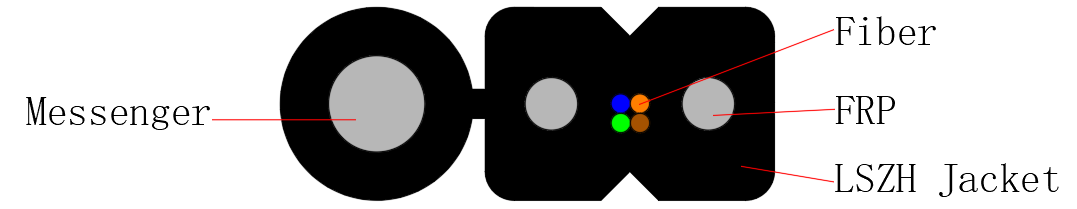

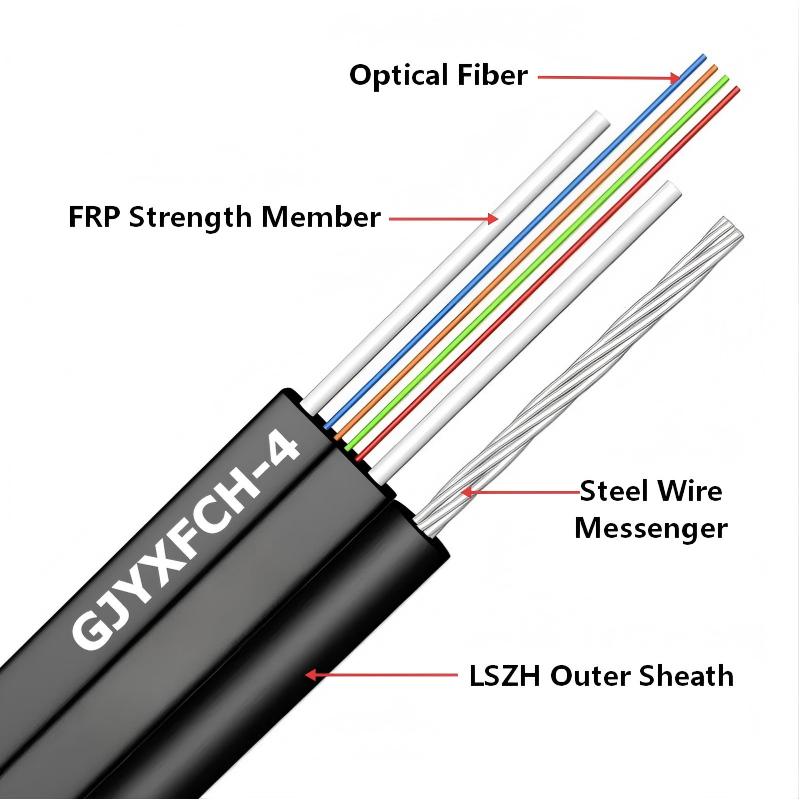

Upper Steel Messenger Wire: Galvanized high tensile steel wire embedded in the upper figure‑8 section, takes all suspension tension to realize self‑support overhead installation without extra hanging wire.
Lower Fiber Unit:
Optical fiber: 1/2/4/6 cores single‑mode fiber with standard color coding complying with TIA/EIA‑598; bend‑insensitive G.657 fiber is preferred for narrow routing.
Twin parallel solid FRP rods arranged on both sides of fiber core to provide anti‑crush and anti‑bending protection; fully non‑metallic fiber part eliminates EMI risk.
LSZH Outer Sheath: Integral jacket wrapping entire FIG8 profile with built‑in tear notch; UV stabilized LSZH is optional for long‑term open‑air outdoor installation.
Note: the steel wire messenger can be changed into FRP (non-metallic) messenger as customer's requests.
Compact size 5.2×2.0mm: Slim profile for easy routing along wall, eaves and narrow conduit.
Non‑metallic fiber core design: Fiber unit uses FRP reinforcement, lighter weight than GJYXCH steel‑reinforced version, no electromagnetic induction.
Self‑support FIG8 integrated construction: Built‑in messenger removes additional suspension cable, saves installation accessories and construction cost.
Tool‑free stripping: Pre‑fabricated tear slit enables manual sheath splitting to separate messenger and fiber unit, greatly improving field termination efficiency.
Indoor & outdoor dual‑purpose: LSZH (low smoke zero halogen) flame retardant sheath meets indoor fire safety requirement; UV modified option resists sunlight aging for all‑weather outdoor exposure.
Excellent bending performance: Matched with G.657 bend resistant fiber, adapts to small bending corners during indoor home wiring.
FTTH pole-to-house aerial drop for urban residential districts, villages and countryside fiber upgrading projects.
Short span building-to-building overhead interconnection in campus, industrial parks and commercial blocks.
Outdoor-indoor transition wiring: overhead from utility pole to exterior wall then penetrate into room to connect ONT equipment.
Narrow space laying along building eaves, wall trunking and small conduit for old community fiber reconstruction.
4/6 core specification for multi-dwelling units (MDU) with spare backup fibers for later network expansion.
1/2 core: Single independent household FTTH access;
4 core: Small multi-family houses with spare reserve fiber;
6 core: MDU, residential cluster and project reserved for future network expansion.
Regular safe span range: 30~50m, shorter than steel-reinforced GJYXCH. For spans over 50 meters, select customized high-tensile messenger wire or extra auxiliary hanging fittings.
Delivery Length:
Normally 1km or 2km, can be customized.
Drum options:
Plywood Drum or Plastic Drum
(Cable and Drum Marking according to customer's requirements.)
Package options:
Carton Package
Pallet Package
Pallet+Carton Package
