The final drop in an FTTH network rarely follows a perfect straight line. It may cross an aerial span, run along a wall, pass through conduit, enter a building, and bend near the subscriber terminal. Each section creates different pressure on the cable.
Choosing an FTTH Drop Fiber Optic Cable is therefore less about picking a standard type and more about matching the cable to the route. The right choice helps control signal loss, simplify installation, and reduce avoidable maintenance after service activation.
For aerial last-mile access, the first question is whether the cable needs to support itself between poles, from a pole to a building, or across a short façade section. Overhead routes expose the cable to tension, wind movement, sag, and possible outdoor-to-indoor transition at the building entry. A suitable FTTH Drop Fiber Optic Cable for this route must have enough mechanical support to keep the fiber stable without forcing the optical unit to carry the whole span load.
Span length, wind exposure, messenger wire design, and fixing hardware should be checked before choosing the cable. If the route crosses from a pole to a house and then enters the customer premises, the sheath material also matters because the cable may pass from outdoor exposure into an enclosed space. CROFC’s GJYXCH Mini FIG8 Self-Support FTTH Drop Fiber Optic Cable is a relevant example for this situation because it uses an integrated figure-8 design, a steel messenger wire, steel strength members, LSZH sheath, and 1/2/4/6-core single-mode fiber options including G.652D, G.657A1, and G.657A2.
A duct or conduit route has a different priority. The cable is not mainly resisting overhead span tension; it is being pulled through a confined pathway where friction, bending, moisture, and crush resistance become more important. A thick or poorly matched structure may be harder to pull, especially through older ducts, narrow conduits, or routes with multiple bends.
In this case, cable diameter, jacket smoothness, pulling strength, and water protection deserve close attention. The right FTTH Drop Fiber Optic Cable should move through the pathway without excessive drag while still protecting the optical fiber from pressure at duct bends. If the same route includes both outdoor duct and indoor entry, the buyer should also confirm whether the selected jacket is suitable for the entire path rather than only the underground or outdoor segment.
Many last-mile routes do not fit neatly into “aerial” or “duct” categories. In old residential areas, MDUs, small commercial buildings, and façade renovation projects, the cable may run along exterior walls, under eaves, through shallow trunking, or around tight corners before reaching the subscriber. Here, a compact structure can make installation cleaner and reduce conflicts with existing building surfaces.
Flat or oval cable designs are often useful when appearance, routing space, and wind load are practical concerns. CROFC’s GYFXBY All-Dielectric FTTH Flat Oval Drop Cable fits this type of selection logic because it combines a flat oval profile with an all-dielectric structure, parallel FRP strength members, a PE jacket, and 2–24 core options for last-mile access networks.
Access route | Main cable priority | Main mistake to avoid |
Aerial pole-to-building | Messenger support, tensile strength, outdoor durability | Choosing a cable without enough span support |
Duct or conduit | Pulling performance, crush resistance, moisture protection | Using an overhead-focused structure in a tight duct |
Façade or MDU routing | Compact profile, bend control, clean installation | Ignoring space limits and building-entry bends |
Outdoor-to-indoor transition | Jacket suitability and entry protection | Selecting a jacket for only one part of the route |
A self-supporting figure-8 cable is designed for routes where the cable must handle overhead installation load. The messenger part carries tension, while the fiber unit remains protected below it. This structure is useful when there is no separate suspension wire or when the installation team needs a simple pole-to-building solution for short-span access.
The key issue is load separation. The optical fiber should not be the part absorbing span tension, clamp pressure, or movement caused by wind. Proper sag control and suitable clamps help keep the cable stable after installation. For this reason, tensile strength matters more in overhead routing than it does in a short indoor wall run, even if both are part of the same FTTH access network.
Some last-mile routes should avoid metallic components. Areas with lightning concerns, corrosion risk, electromagnetic interference concerns, or project rules requiring non-metallic construction may be better served by FRP or all-dielectric designs. In these cases, an FTTH Drop Fiber Optic Cable should provide the needed tensile support without adding steel wires or other conductive elements.
GYFXBY is a practical example of this approach. Its structure includes 2–24 core options, G.652D or G.657A1/A2 fiber choices, a PBT central loose tube, parallel FRP strength members, PE outer jacket, and application suitability for aerial self-supporting and duct installation. That combination makes the structure relevant where compact routing and non-metallic construction are both required.
The jacket decision should follow the route environment. PE is commonly used where the cable faces outdoor exposure, moisture, duct installation, or UV-related aging. LSZH is normally preferred when the cable enters indoor spaces, enclosed areas, risers, or locations where flame and smoke behavior matter.
A common last-mile mistake is treating the route as either fully outdoor or fully indoor. Many access links are mixed: a cable may run outdoors first, pass through a wall, and then continue toward indoor equipment. In that situation, the chosen FTTH Drop Fiber Optic Cable should be checked against both outdoor durability and indoor safety requirements. GJYXCH, for example, uses an LSZH sheath and supports indoor/outdoor application, which makes it relevant for pole-to-building routes that continue into subscriber premises.
Last-mile access routes often include tight turns near walls, terminal boxes, risers, ONT positions, and conduit exits. These bends may look minor during installation, but they can increase optical loss if the fiber type is not suitable. For that reason, G.657A1 or G.657A2 fiber is frequently preferred in subscriber-side drop routes.
G.652D remains widely used in single-mode networks, but it is not always the best choice for tight-bend drop applications. ITU-T G.657 is designed for bending-loss-insensitive single-mode optical fiber and cable, making it more suitable for access networks and building-entry routing. A good FTTH Drop Fiber Optic Cable should therefore match not only the optical network standard but also the physical route inside and around the building.
Fiber count should not be selected only by the number of subscribers connected on day one. A single home may need only 1–2 cores, while a small building may benefit from 4 cores for backup or future flexibility. MDUs, small business access, residential clusters, and network expansion routes may require higher core counts.

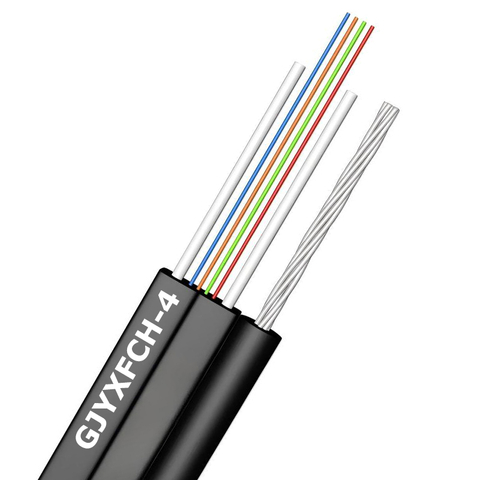

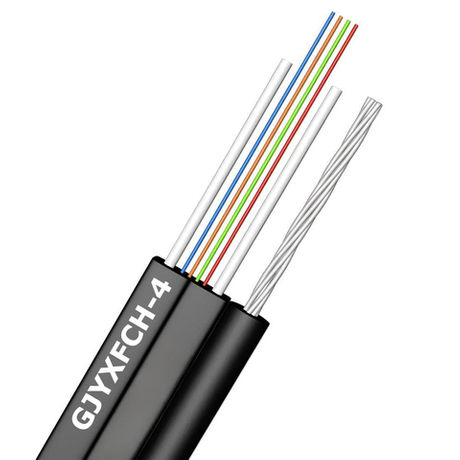

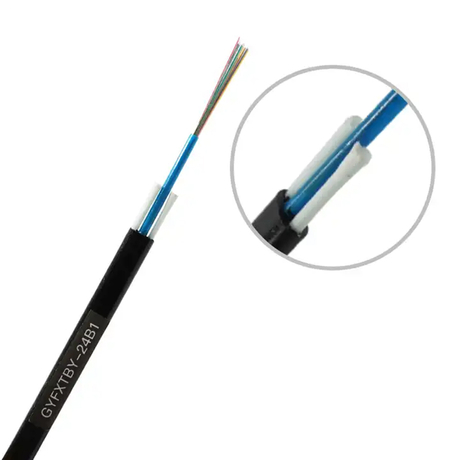

CROFC’s FTTH Drop Cable range includes multiple structures such as GJYXCH, GJYXFCH, GJXH, GJXFH, GJYXFHS, and GYFXTBY, which shows why a single fiber-count rule is not enough for every route. The buyer should consider current activation, future spare fiber, repair margin, and the available space inside ducts, terminal boxes, or façade pathways. A compact FTTH Drop Fiber Optic Cable with the right spare capacity can prevent costly replacement when the network later expands.
Termination method affects procurement before the cable is even shipped. Fusion splicing gives installers flexibility because the field team can cut the cable to the required length and splice it into the terminal or indoor cable route. This method works well when skilled technicians and proper tools are available.
Fast connectors can reduce installation time, but the cable must be easy to strip and stable during fiber preparation. Pre-connectorized lengths reduce field termination work even further, but they require accurate route measurement, allowance for slack, and careful handling during pulling. For an FTTH Drop Fiber Optic Cable, connector planning should remain practical and FTTH-focused, with common interfaces such as SC/APC or LC considered according to network equipment and terminal design.
A correct cable can still perform poorly if the installation method damages it. Pulling tension should stay within the manufacturer’s limit, especially in ducts or overhead routes. Sharp bends at wall entries, terminal boxes, and indoor corners should be avoided because bend-insensitive fiber reduces risk but does not remove the need for proper routing.
Aerial installations need suitable clamps, sag control, and secure fixing points. Outdoor-to-indoor entries should be protected so water does not travel along the cable path into the building. Slack should be left for maintenance and future re-termination. GJYXCH’s built-in tear slit for separating the messenger and fiber unit is a useful example of how cable design can support faster field termination when the route and structure are already appropriate.
The lowest unit price can become expensive if the cable creates rework after installation. A weak jacket, unsuitable strength member, poor bend performance, or difficult termination can lead to attenuation troubleshooting, connector failure, truck rolls, and subscriber complaints. The procurement decision should include installation labor and maintenance exposure, not just the price per meter.
A reliable FTTH Drop Fiber Optic Cable is not necessarily the most expensive option. The better question is whether it matches the access route well enough to avoid preventable service problems. Paying slightly more for the correct structure may cost less than replacing a mismatched cable after activation.
Aerial, duct, façade, and indoor-entry routes do not place the same stress on a cable. A figure-8 cable that works well overhead may be unnecessarily bulky or difficult in a narrow duct. A compact indoor-friendly cable may be too weak for exposed span conditions.
Standardizing too aggressively can create hidden risk. A project can still use a limited product range, but each selected FTTH Drop Fiber Optic Cable should have a clear route purpose. This keeps purchasing manageable without forcing one cable structure into every installation condition.
Local exposure can decide whether a cable remains stable over time. UV, rain, moisture, wind, temperature change, ice, corrosion, rodents, and fire-safety rules all affect cable selection. Not every project needs the strongest available cable, but every project needs a cable that fits the real environment.
The practical goal is to avoid mismatch. Outdoor routes need weather durability. Indoor or enclosed routing needs suitable safety behavior. Duct routes need pulling and crush protection. When these factors are checked early, the FTTH Drop Fiber Optic Cable becomes part of a stable last-mile design rather than a source of repeated repair.
Choosing an FTTH Drop Fiber Optic Cable should start with the real access route, then move to structure, strength member, jacket, fiber type, fiber count, and installation method. A cable that fits the site can reduce pulling problems, bending loss, outdoor damage, and unnecessary rework after service activation.
Anhui Changrong Optical Fiber & Cable Technology Co., Ltd. offers FTTH drop cable options for aerial, duct, façade, and indoor/outdoor access routes, helping buyers match cable construction to actual last-mile conditions rather than relying on a single generic choice.
A: It connects the fiber distribution point to the subscriber premises, forming the final access link in FTTH networks for homes, buildings, or small business connections.
A: Choose outdoor cable for UV, moisture, and mechanical exposure. Use indoor-rated or LSZH cable where the route enters enclosed spaces or building interiors.
A: Single homes often use 1–2 fibers, while MDUs, small buildings, or expansion routes may need more cores for backup, future users, or network flexibility.
A: Tight bends can increase signal loss or damage the cable. Installers should follow the manufacturer’s bend radius limits and avoid sharp turns near terminals.
A: Yes. Aerial cable needs tensile support and span stability, while duct cable should prioritize pulling performance, crush resistance, moisture protection, and manageable cable diameter.
