GYFXBY All Dielectric No-Metal FTTH Flat Oval Drop Cable
Flat ADSS Fiber Optic Cable
| Model | GYFXBY |
| Fiber Counts | 2-24 core |
| Fiber Type | G.652D (SM), G.657A1/A2 (bend-insensitive SM) |
| Buffer Tube | PBT Central Loose Tube |
| Strength Member | Parallel FRP (glass fiber reinforced plastic) |
| Outer Jacket | PE (Polyethylene) |
| Application | Aerial Self-supporting and Duct Installation |
| Operating Temperature | -40°C to +70°C |
| Drum Length | 2km, 3km, 4km, etc. |
GYFXBY is a flat-shaped ADSS (All-Dielectric Self-Supporting) oval drop fiber optic cable specifically designed for "last-mile" access networks. It integrates the self-supporting advantage of ADSS cables with the flat, compact design of drop cables, making it ideal for connecting distribution points to end-users (e.g., homes, offices, or small businesses). Unlike traditional round cables, its flat oval structure optimizes installation in narrow spaces and reduces wind load, while the all-dielectric construction eliminates the need for metal components (avoiding corrosion and electromagnetic interference).
Product Category: Specialized access network cable (belongs to the ADSS cable family, optimized for drop applications).
Core Function: Transmits high-speed optical signals (data, voice, video) in the "last mile" of fiber-to-the-home (FTTH), fiber-to-the-building (FTTB), or fiber-to-the-premises (FTTP) networks.
Key Differentiator: Combines three critical features:
ADSS (All-Dielectric): No metal conductors (e.g., steel wires), ensuring resistance to corrosion, lightning, and electromagnetic interference (EMI).
Flat Oval Shape: Slim profile for easy installation in tight spaces (e.g., along walls, in cable ducts, or attached to utility poles).
Drop Cable Design: Lightweight and flexible, tailored for short-distance connections from distribution cabinets to end-user premises.
Internal Structure of GYFXBY Flat ADSS Fiber Optic Cable:
| Layer | Component | Function |
| 1. Fiber Core | Optical Fibers: Typically single-mode (SM) fibers (e.g., G.652D, G.657A1/A2) or multi-mode (MM) fibers (e.g., OM3/OM4). | Transmit optical signals; SM fibers support long distances (up to 100km), while MM fibers are for short distances (≤2km). |
| 2. Buffer Tube | PBT Central Loose Tube | Protects fibers from mechanical stress, moisture, and temperature fluctuations; |
| 3. Strength Members | Two parallel FRP (Fiberglass Reinforced Plastic) rods | Provides tensile strength (supports self-supporting installation) and impact resistance; replaces metal to maintain dielectric properties. |
| 4. Water-Blocking System | Tube Filling Compound | Dual protection: paste filling inside the loose tube + water-blocking yarn outside the tube, effectively preventing moisture intrusion. |
| 5. Outer Sheath | Black Polyethylene (PE) flat jacket with optional UV resistance. Some models include rip cords to simplify and speed up sheath stripping during field termination. | Blocks UV radiation, moisture, and chemicals; LSZH material ensures safety in indoor/outdoor environments (no toxic fumes when burned). |
Special Figure: Flat Oval Cross-Section, which reduces wind resistance (for overhead installation), fits in narrow ducts, and adheres easily to walls.

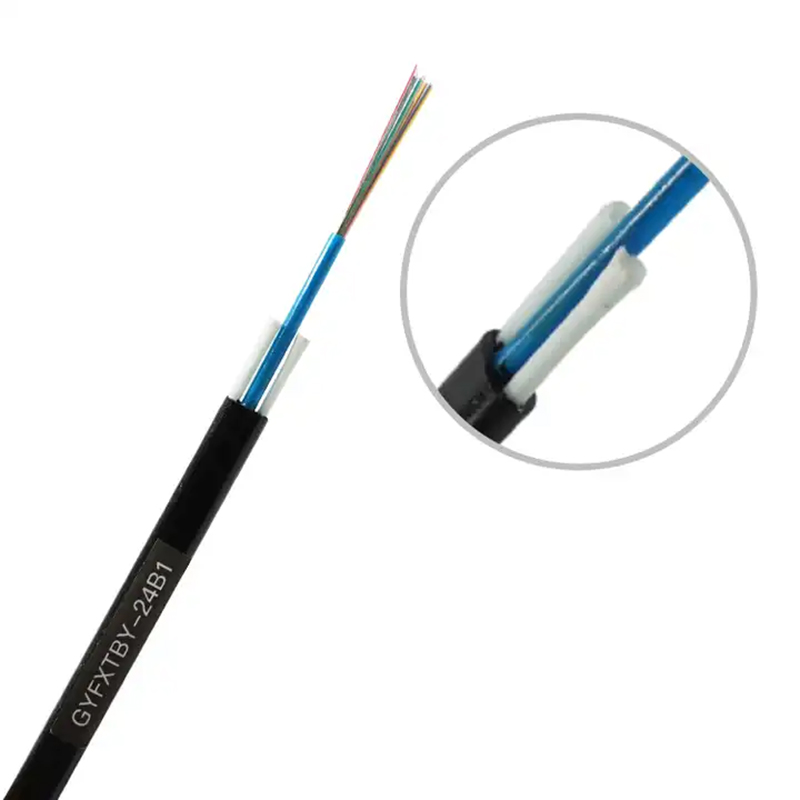

GYFXBY Oval Drop Cable
GYFXBY Cable Structure
No metal components, so it is immune to electromagnetic interference (EMI) from power lines, motors, or radio signals.
Suitable for installation near high-voltage power cables (common in overhead utility poles) and avoids corrosion in humid or coastal environments.
Reinforced with FRP rods, it can support its own weight during overhead installation (e.g., between utility poles or building exteriors) without relying on additional support cables.
Tensile strength ranges from 600–1800N (depending on the size of FRP ), meeting short-distance self-support requirements.
Slim flat profile minimizes space occupancy: easy to install in wall-mounted ducts, under floorboards, or along building facades (no bulky round cables).
Reduces wind load and ice accumulation during outdoor overhead use, lowering maintenance costs.
The central buffer tube and non-metallic reinforcement reduce microbending loss (signal attenuation caused by fiber deformation), ensuring stable transmission (attenuation ≤0.36dB/km for SM fibers at 1310nm).
Temperature resistance: Operates in -40°C to +70°C, suitable for both cold and hot climates.
Lightweight and flexible, easy for quick installation and labor-saving.
The flat shape allows easy identification and tracing during maintenance (no confusion with other round cables).
Connects neighborhood distribution cabinets (ODNs, Optical Distribution Networks) to individual homes:
Overhead installation: Strung between utility poles and attached to home exteriors.
Indoor installation: Run through wall ducts or under floors to connect to ONUs (Optical Network Units) inside homes.
Used in multi-story buildings to link the building’s main distribution frame (MDF) to each floor’s distribution box, then to individual offices or apartments.
Ideal for retrofitting old buildings where space for cabling is limited (flat profile fits in existing narrow ducts).
Overhead installation in suburban or rural areas (e.g., between utility poles) to extend fiber coverage to scattered homes or small factories.
Resistant to UV, moisture, and EMI, making it suitable for outdoor use without additional protective sleeves.
Installed in shopping malls, hotels, or hospitals to connect access points (e.g., WiFi routers, IP cameras) to the core network.
Flame-retardant LSZH sheath ensures compliance with fire safety codes for public buildings.
Lightweight and easy to deploy for temporary events (e.g., concerts, exhibitions) or emergency communication (e.g., after natural disasters) where quick, temporary fiber links are needed.
Reel Length:
normally 2km, 3km, 4km, 5km (as your request)
Drum options:
Fumigated Wooden Drum
Steel-reinforced Wooden Drum
Plywood Drum.
Cable and Drum Marking according to customer's requirements.
