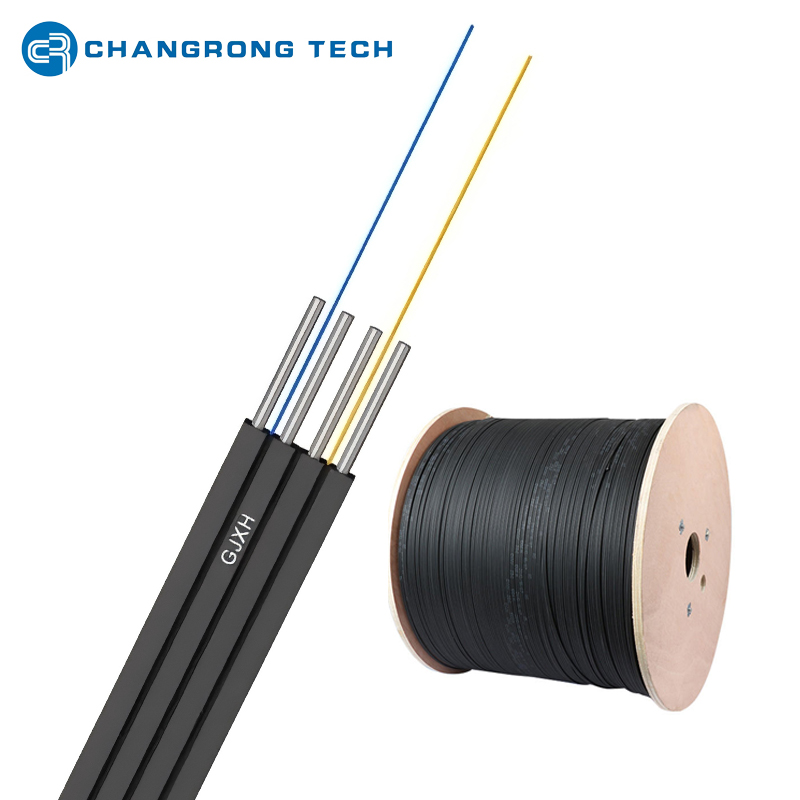

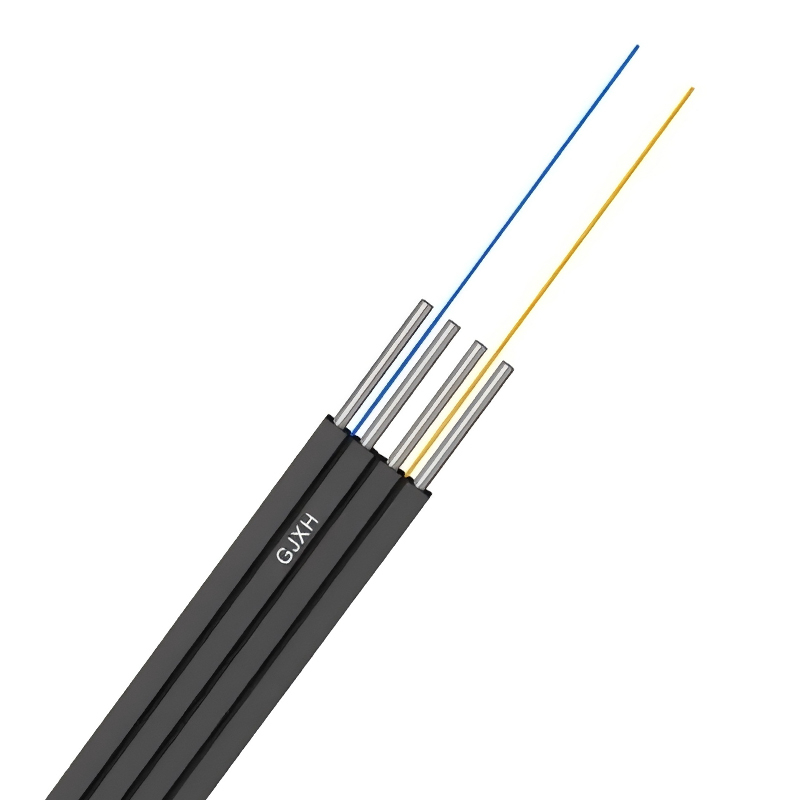

Indoor FTTH Double-fly Fiber Drop Cable 2-GJXH 2.0*6.0 mm
| Model | FTTH Drop Cable 2-GJXH |
| Structure | Double-fly (twin-core independent) |
| Fiber Counts | 1, 2, 4 Core |
| Fiber Type | G652D, G657A1, G657A2 |
| Strength Member | Steel Wire or FRP |
| Outer Sheath | LSZH(Low-Smoke-Zero-Halogen) jacket |
| Cable Size | 2.0*6.0 mm |
| Reel Length | 1km, 2km |

The 2-GJXH 2.0×6.0mm FTTH Double-fly Drop Cable is a premium 2-core butterfly optical fiber cable, specifically designed for Fiber-to-the-Home (FTTH) access network deployments.
Featuring a widened cross-section dimension of 2.0×6.0mm and a reinforced double-fly structural design, it delivers superior mechanical durability and installation flexibility compared with conventional GJXH drop cables. It adopts low-loss single-mode fibers and environment-friendly sheathing materials, making it suitable for indoor and short-distance semi-outdoor optical signal transmission scenarios.

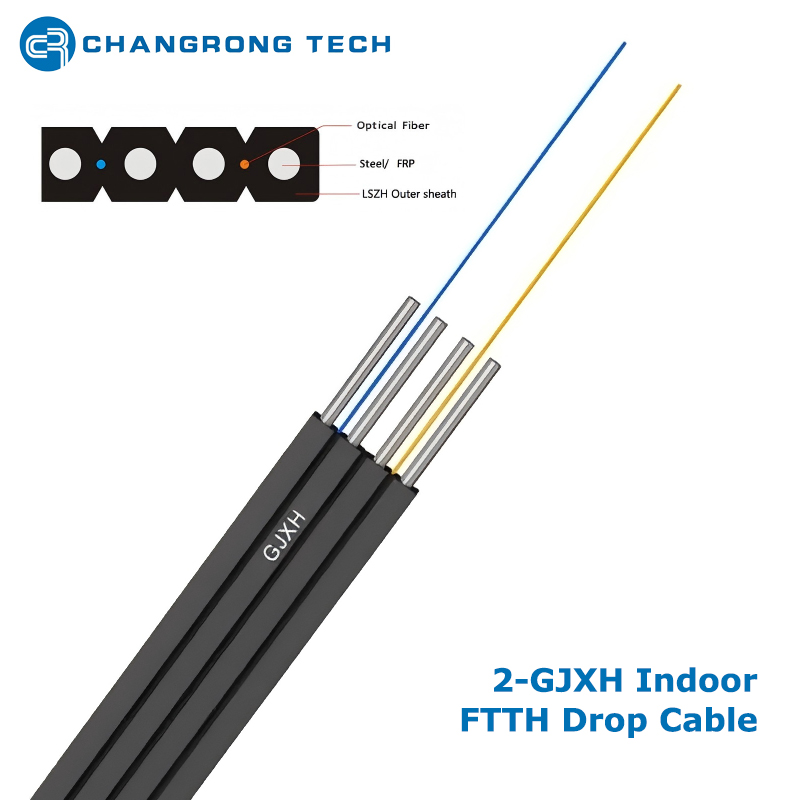

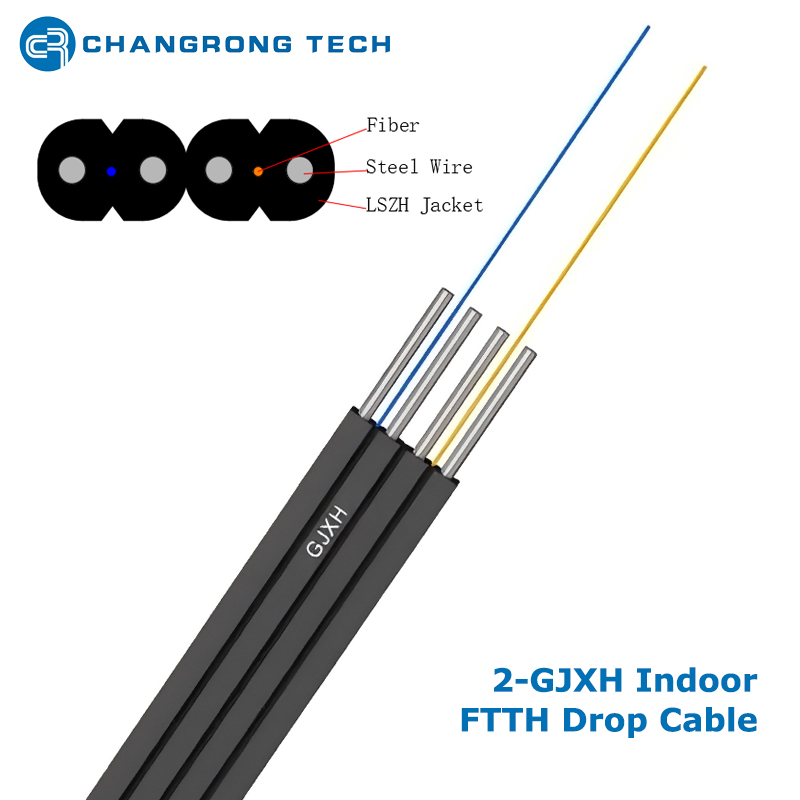

Structure of FTTH Double-fly Drop Cable 2-GJXH:

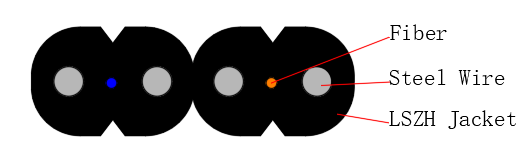

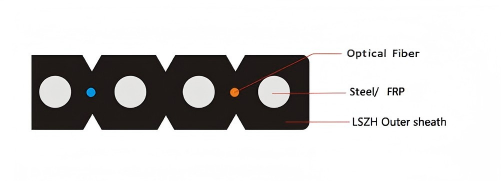

There are two optical fiber units independently, Two parallel FRP or steel wire are placed at the two sides of the optical fiber units separately. Then the cable is completed with a LSZH sheath.
1. Optical Fiber Core
Two single-mode optical fiber units, typically selected from G652D, G657A1, or G657A2 types, with excellent bend resistance and low attenuation performance to ensure stable signal transmission.
2. Reinforcement Component
Adopts a double-fly reinforced structure with 4 parallel reinforcement members (material options: FRP, steel wire, or KFRP), which is double the number of traditional butterfly GJXH cables, effectively enhancing tensile and compression resistance.
3. Sheath Layer
Extruded with LSZH (Low Smoke Zero Halogen) material as the standard configuration. The sheath is designed with a special groove for easy stripping, and the widened 2.0×6.0mm size further improves the cable's anti-extrusion capability.


Outstanding Advantages of Indoor Double-fly FTTH Drop Fiber Cable:
Unique double-fly design: make the installation more simple, time-saving and cut down cost.
Easy Stripping: The unique groove design of the sheath allows quick and easy stripping without complex tools, facilitating efficient fiber splicing and reducing installation and maintenance costs.
Superior Mechanical Performance: The double-fly structure with 4 reinforcement members delivers much higher tensile and compression resistance compared with standard GJXH cables, ensuring fiber protection during pulling and laying.
Excellent Bend Resistance: The selected G657 series fibers have strong anti-bending ability, matching the dynamic bending radius of 15D and static bending radius of 30D ("D" is the outer diameter of the cable), which can be flexibly routed around corners and obstacles.
High Safety & Environmental Protection: The LSZH sheath emits little smoke and no toxic gas in case of fire, making it ideal for personnel-intensive environments such as office buildings and residential complexes.
Application Scenarios:
It is mainly designed for indoor FTTH cabling, and also applicable to FTTD (Fiber-to-the-Desk), intra-building local area network (LAN) wiring, as well as jumper and pigtail connections between communication devices.
Thanks to its widened 2.0×6.0mm dimension and reinforced structure, it can also be used for temporary wiring in some short-term semi-outdoor transition scenarios.
Cable Structure Parameter:
| Cable Type | Fiber Count | Cable Size (mm) | Cable Weight (kg/km) | Tensile Long/Short Term (N) | Crush Long/short term (N/100mm) | Min. Bending Radius Static/ Dynamic (mm) |
| 2-GJXH | 2*1 | 2.0*6.0 (±0.2) | 20 | 150/300 | 300/1000 | 15D/30D |
| 2-GJXH | 2*2 | 2.0*6.0 (±0.2) | 20 | 150/300 | 300/1000 | 15D/30D |
| 2-GJXH | 2*4 | 2.0*6.0 (±0.2) | 20 | 150/300 | 300/1000 | 15D/30D |
| Storage/Operation Temperature: -20℃~+70℃ | ||||||
| Packing: standard plywood drum with carton box (plastic drum is also available) | ||||||
| Reel Length: standard 1km/ 2km, other length is also available. | ||||||
Fiber Color Identification
No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Blue | Orange | Green | Brown | Slate | White | Red | Black | Yellow | Violet | Pink | Aqua |

Drum Length:
Normally 1km or 2km, can be customized.
Drum options:
Plywood Drum or Plastic Drum
(Cable and Drum Marking according to customer's requirements.)
Package options:
Carton Package
Pallet Package
Pallet+Carton Package
