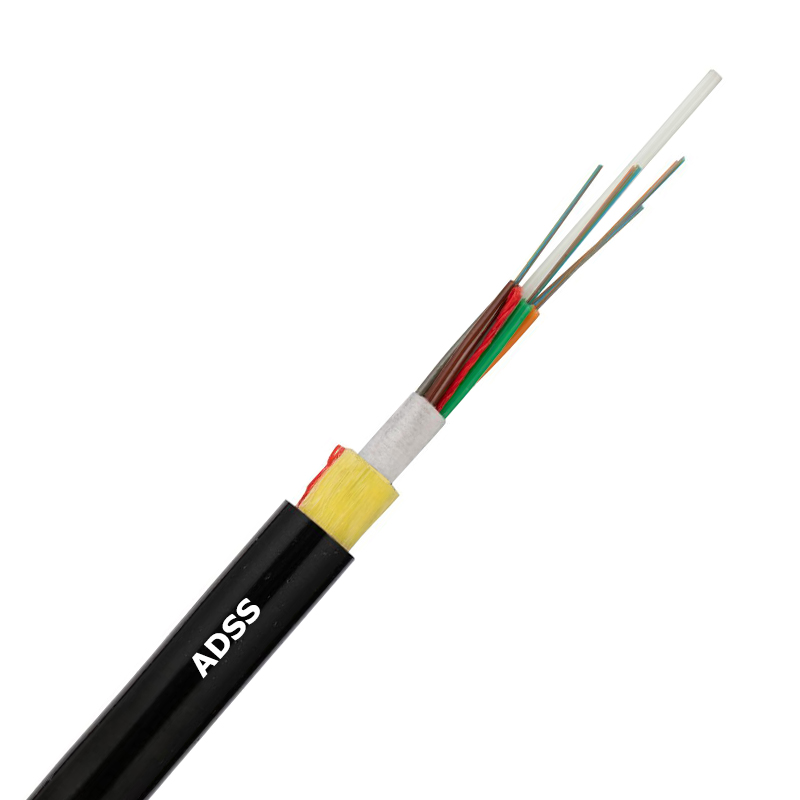

Single Jacket ADSS Fiber Optic Cable for Span 100m

Description:

ADSS (All Dielectric Self Supporting) fiber optic cable is a type of self-supporting aerial cable designed for use in outdoor environments, especially in areas with electrically hazardous conditions.

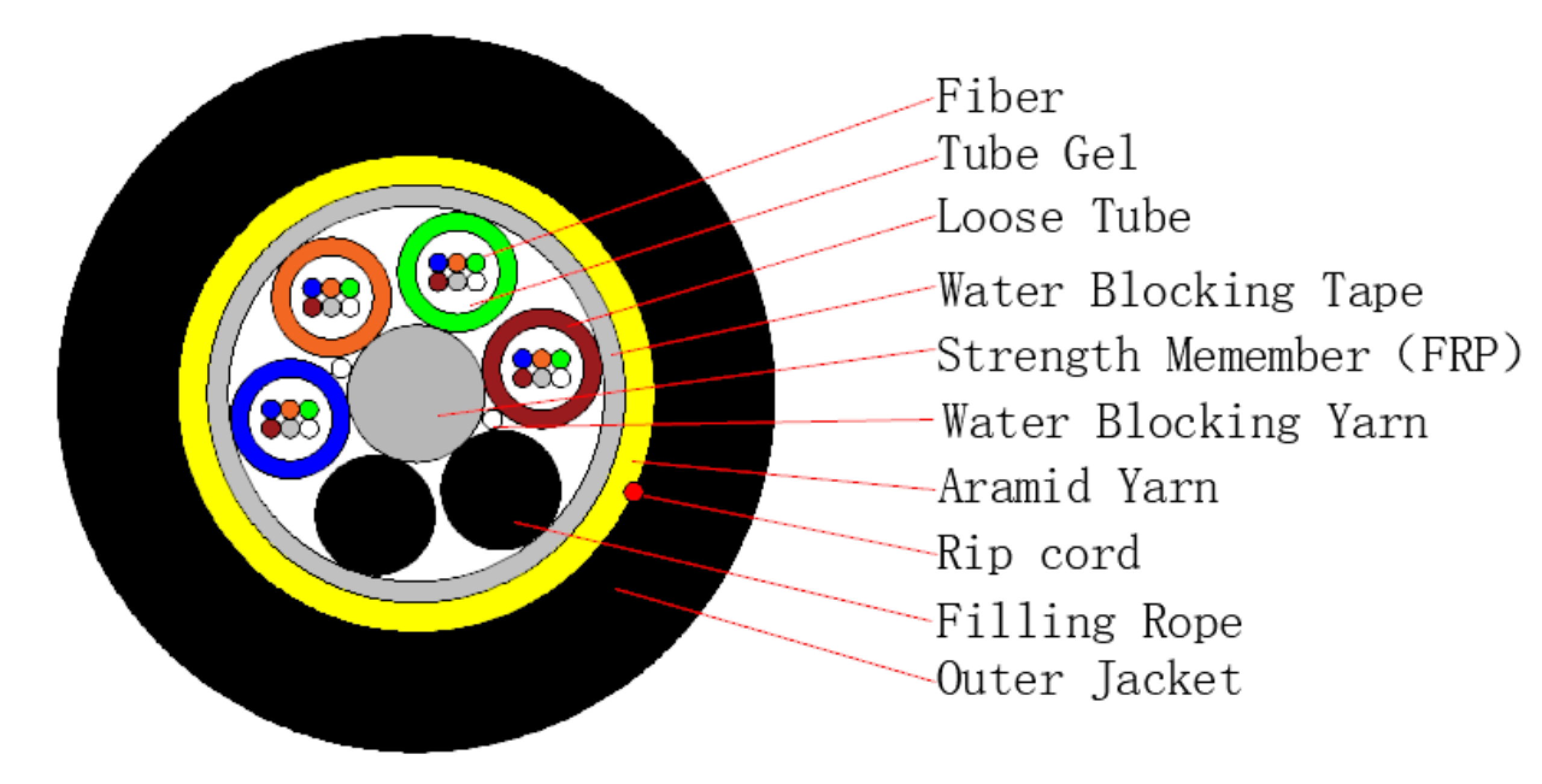

Structure:

The 2-288 fibers are positioned in the loose tube made of high modulus plastic and filled with gel. Tubes (and fillers) are stranded around the non-metallic strength member (FRP) to form the cable core. Water blocking yarn and water blocking tape used in the cable core to prevent water penetration. Then Aramid Yarn as tensile strength member to reinforce. Finally, polyethylene (PE) or Anti-Tracking (AT) outer jacket is extruded.

Features:

(1) All-Dielectric Design: excellent electrical insulation properties and resistant to electromagnetic interference. This makes it ideal for installation in areas with high-voltage power lines or other electromagnetic-interference-prone environments, eliminating the need for expensive cable shielding and grounding measures.

(2) Self-Supporting Capability: The ADSS cable can support itself without the need for an additional support messenger. This simplifies the installation process and reduces installation costs, saving space.

(3) Wide Temperature Range: usually from - 40 °C to 70 °C. This allows it to be used in various climatic conditions, from cold regions to hot and humid environments, ensuring the stability and reliability of optical signal transmission.

(4) Small Diameter and Light Weight: easy to handle and install, reducing the impact of wind and ice on the cable during operation.

Applications:

(1) Telecommunications Networks: It is widely used in long-distance and local-area telecommunications networks to transmit high-speed data, voice, and video signals. It can be used for backbone network connections, access network connections, and connections between base stations in mobile communication networks.

(2) Power Communication Networks: In the power industry, ADSS cables are often used to construct communication networks for power system automation, substation monitoring, and dispatching control. The all-dielectric design of the cable ensures reliable communication in high-voltage power line environments without being affected by electromagnetic interference.

(3) Broadband Access Networks: With the development of broadband access technologies, ADSS cables are also used in some rural and remote areas to provide high-speed broadband access services. They can be installed on existing power poles or communication poles to achieve the expansion and upgrading of broadband networks.

Fiber Color Identification

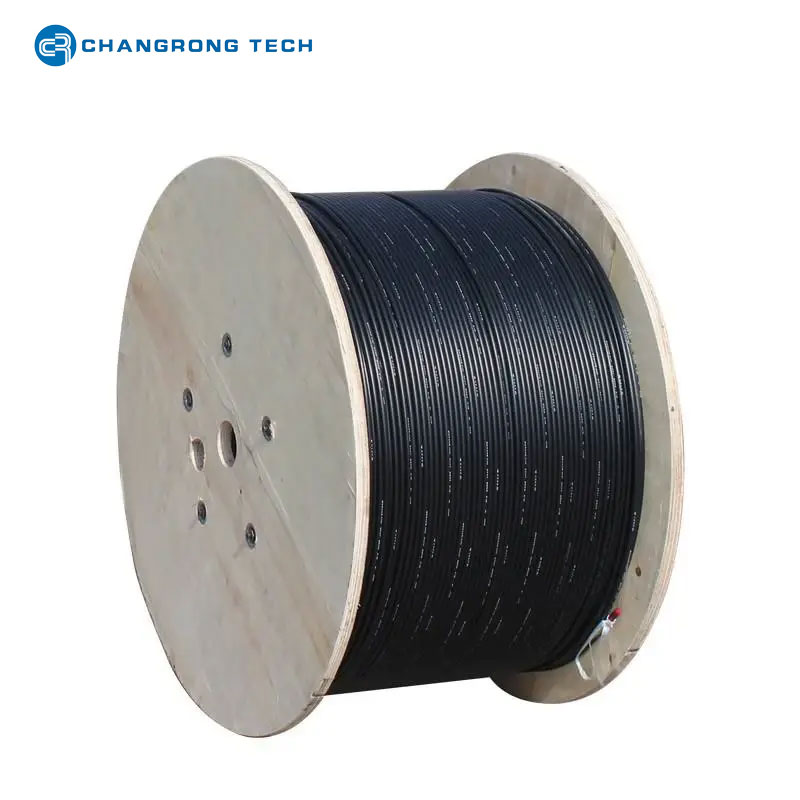

Reel Length: normally 2km, 3km, 4km, 5km (as your request)

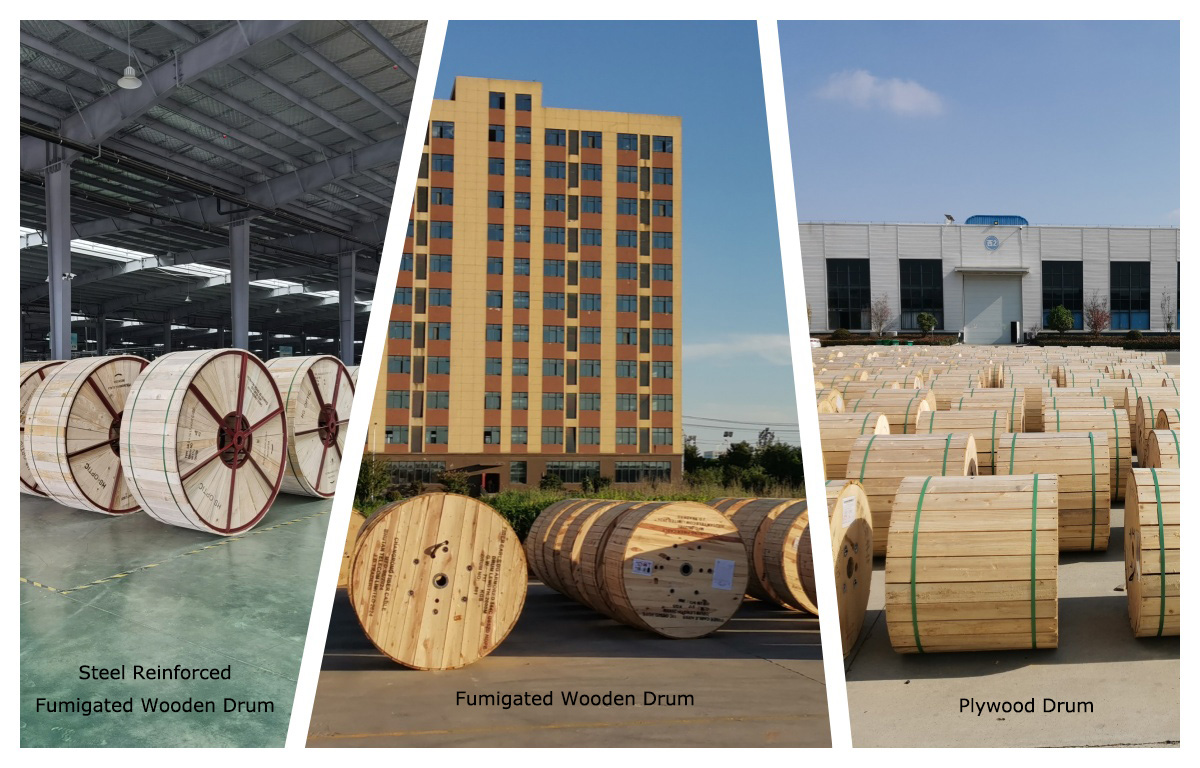

Drum options: Fumigated Wooden Drum, Steel-reinforced Wooden Drum, Plywood Drum

Cable and Drum Marking according to customer’s requirements.
