Description:

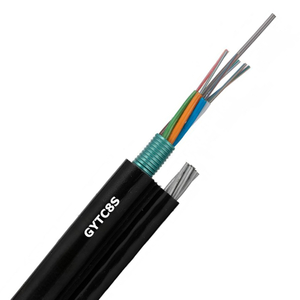

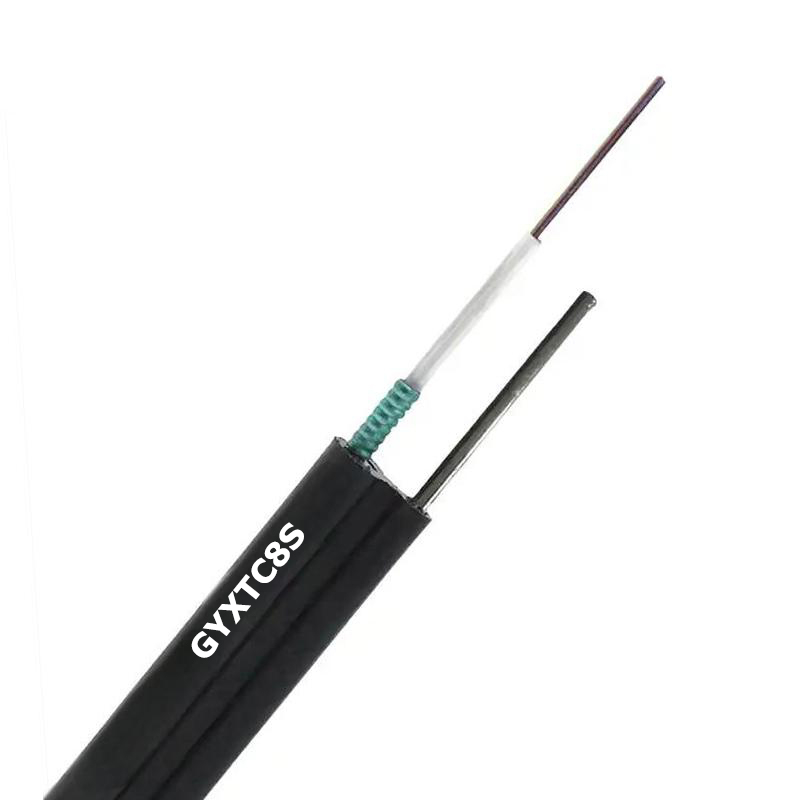

GYXTC8S fiber optic cable is a type of self-supporting aerial cable with stranded steel messenger and steel tape armored, designed for outdoor long-distance communication.
Structure:

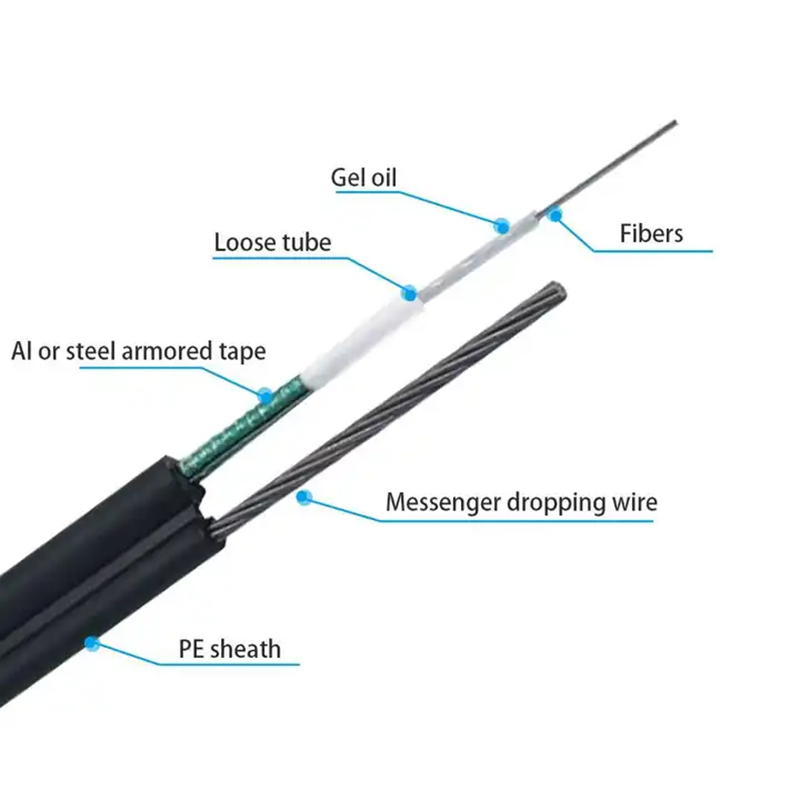

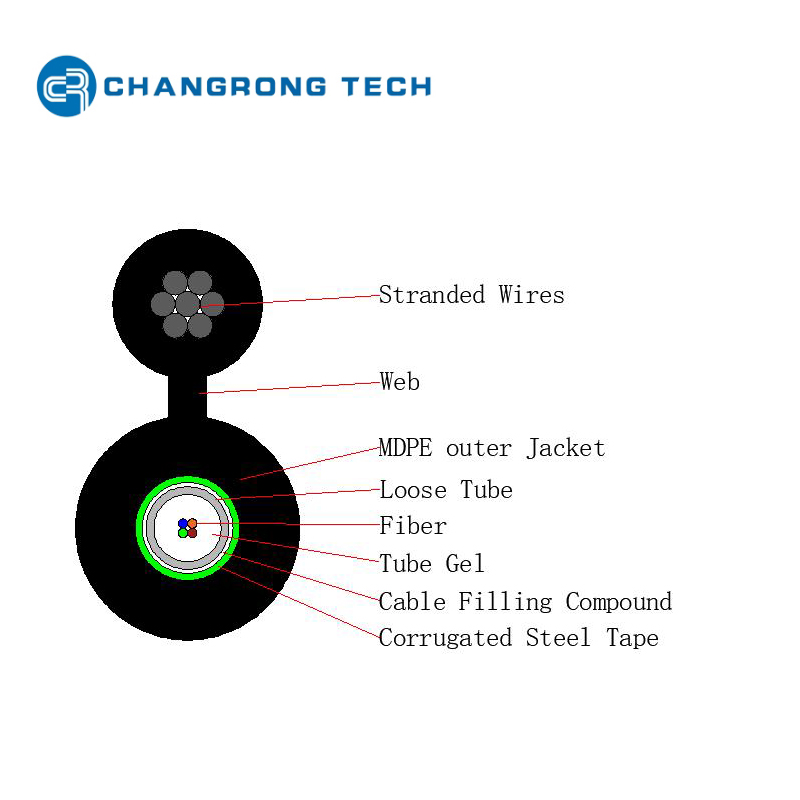

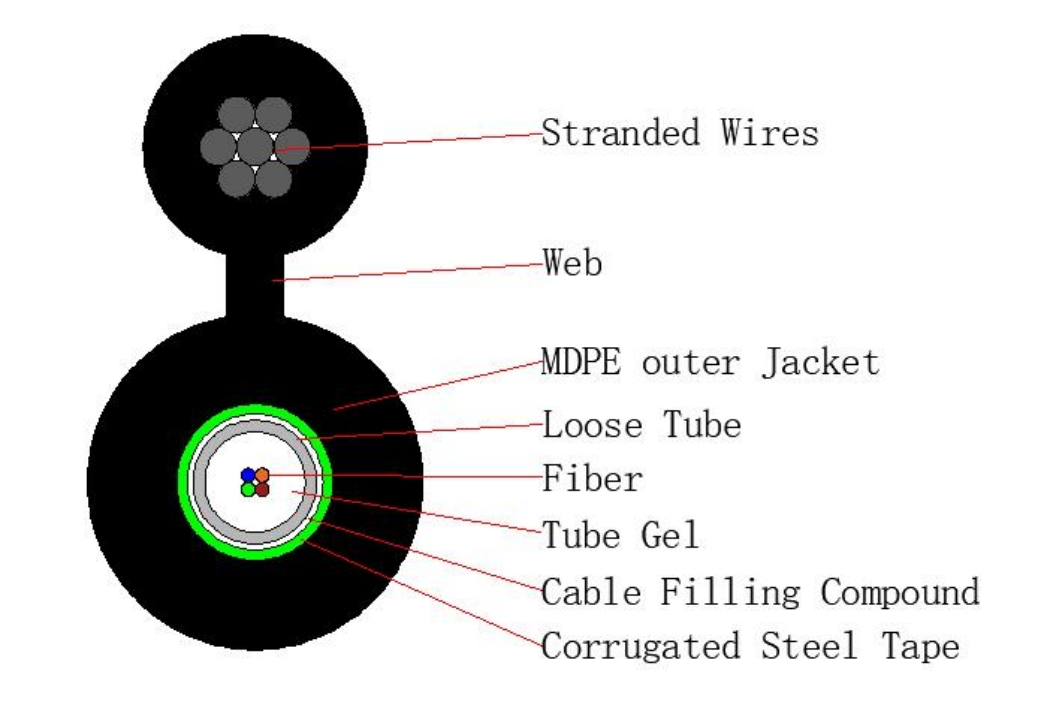

The 2-24 fibers are positioned in a central loose tube made of high-modulus plastic and filled with tube gel. The water-blocking compound is applied around the central unitube. Then the tube is armored with a corrugated steel tape (CST) longitudinally. Stranded steel wires are applied as the messenger. Finally, a figure-8 PE outer jacket is extruded.
Features:
(1) Figure-8 design, easy for self-supporting aerial installation, reducing installation costs.
(2) Small diameter and light weight, easy for installation, reducing the impact of wind and ice on the cable during operation.
(3) Tube gel ensures critical protection of fiber
(4) Corrugated steel tape(CST) enhancing moisture-proof
(5) Wide temperature range: usually from - 40 °C to 70 °C. This allows it to be used in various climatic conditions, from cold regions to hot and humid environments, ensuring the stability and reliability of optical signal transmission.
Applications:
Aerial Self-supporting Installation for telecommunication networks.
Duct Installation.
Fiber Color Identification
No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Blue | Orange | Green | Brown | Slate | White | Red | Black | Yellow | Violet | Pink | Aqua |
Reel Length: normally 2km, 3km, 4km, 5km (as your request)
Drum options: Fumigated Wooden Drum, Steel-reinforced Wooden Drum, Plywood Drum.
Cable and Drum Marking according to customer’s requirements.
