Optical fiber cables and normal cables (commonly referred to as copper cables) are two essential components in the world of data transmission. They each serve the purpose of carrying data from one point to another, but they differ significantly in terms of materials, performance, and use cases. This article will explore the differences between optical fiber cable and normal copper cable, examining the technical aspects, advantages, and limitations of each type, and helping you understand which one is best suited for specific needs.
Optical fiber cable is a type of cable that uses light to transmit data, as opposed to electrical signals used by normal copper cables. It consists of a core made of glass or plastic fibers that carry light signals, a cladding layer that reflects light within the core, and an outer protective coating. This type of cable is designed to carry data over long distances with minimal loss and at high speeds. The technology has advanced significantly over the years, and now optical fiber cables are widely used in telecommunications, internet connections, and high-speed data networks.
A copper cable refers to cables made from copper wires that conduct electrical signals. These cables have been used for decades for various applications, including phone lines, data transmission, and electrical wiring. Normal copper cables rely on electrical signals to transfer data, and they come in different varieties such as twisted pair cables (e.g., Cat5, Cat6) and coaxial cables.

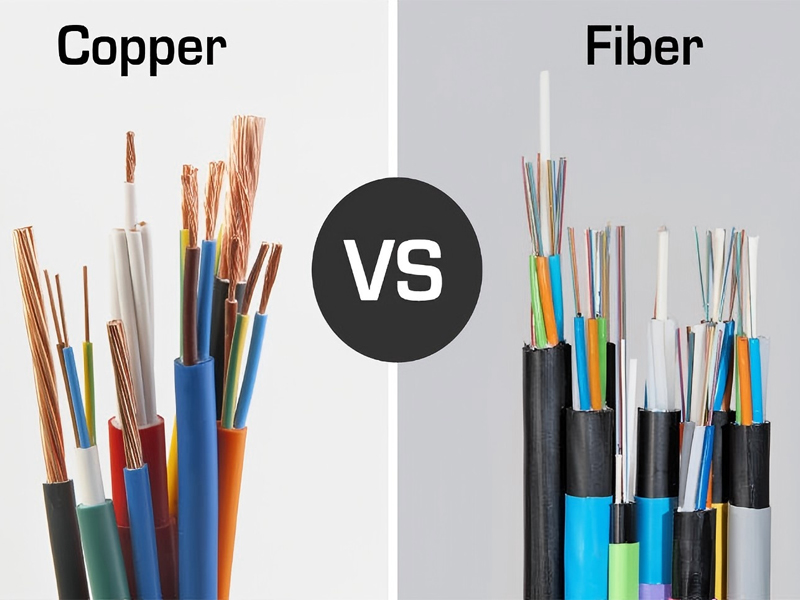

The most significant difference between optical fiber cables and normal copper cables is the medium they use to transmit data. Optical fiber cables use light signals transmitted through glass or plastic fibers, while normal copper cables use electrical signals carried through copper wires. The use of light in optical fiber cables allows them to carry more data at faster speeds and over longer distances without degradation in signal quality.
One of the key advantages of optical fiber cables over copper cables is their speed and bandwidth capabilities. Optical fiber cables can handle much higher bandwidths, meaning they can transmit more data at once. This results in faster speeds and greater capacity for high-volume data transfer. In comparison, normal copper cables have lower bandwidth and can become saturated when handling large amounts of data, leading to slower transmission speeds.
Feature | Optical Fiber Cable | Copper Cable |
|---|---|---|
Transmission Medium | Light (Glass or Plastic) | Electricity (Copper) |
Speed | Very High | Moderate |
Bandwidth | High | Lower |
Data Loss | Low | High |
Distance | Long Distance (Up to 100 km) | Shorter Distance (Up to 100 meters) |
Another major difference is how far each type of cable can transmit data effectively. Optical fiber cables have a significantly longer transmission range compared to normal copper cables. The reason lies in the inherent property of light transmission, which experiences very little signal loss over long distances. On the other hand, copper cables suffer from signal degradation over long distances, requiring repeaters or boosters to maintain the quality of the signal over extended distances.
For example, optical fiber cables can transmit data over distances of up to 100 kilometers (km) without significant loss, while normal copper cables are typically limited to 100 meters (m) without signal boosters.
Optical fiber cables are immune to electromagnetic interference (EMI), making them an ideal choice for environments with high levels of electrical noise. Since optical fiber cables use light signals instead of electrical currents, they do not interact with surrounding electromagnetic fields. This is especially beneficial in industries like telecommunications, medical applications, and industrial environments.
Copper cables, on the other hand, are susceptible to electromagnetic interference (EMI). The electrical signals traveling through copper wires can be disrupted by external electrical devices, resulting in signal degradation. This interference can be minimized by using shielding, but it still remains a significant disadvantage compared to optical fiber cables.
When it comes to durability, optical fiber cables have their own set of advantages and challenges. While they are generally resistant to environmental factors like corrosion and water damage, optical fiber cables are more fragile and prone to physical damage due to the glass or plastic materials they are made of. However, these cables are often encased in protective coatings to provide extra durability.
Copper cables, specifically copper wires, are more robust and less likely to break under physical stress. They are also easier to install and handle, making them suitable for indoor applications where high durability is not as critical.
While optical fiber cables offer numerous benefits, they tend to be more expensive than normal copper cables in terms of initial investment. The cost of manufacturing optical fiber cables is higher due to the materials and technology involved in producing and processing fiber optic strands. Additionally, the installation process requires specialized knowledge and equipment.
In contrast, normal copper cables are more affordable and are often chosen for low-cost applications. However, in the long term, the lower performance and higher maintenance costs associated with copper cables may outweigh their initial affordability.
Optical fiber cables are primarily used in high-speed internet connections, data centers, telecommunications networks, and long-distance communication. They are essential for supporting modern-day digital services, including video conferencing, cloud computing, and streaming services, which require high-speed data transfer and low latency.
Normal copper cables, on the other hand, are still widely used in residential and office environments for basic communication needs, such as telephone lines, local area networks (LANs), and cable television. They are also used for power transmission and other electrical applications.
Feature | Optical Fiber Cable | Normal Cable (Copper) |
|---|---|---|
Transmission Medium | Light (Glass or Plastic) | Electricity (Copper) |
Speed | Very High | Moderate |
Bandwidth | High | Lower |
Data Loss | Low | High |
Distance | Long Distance (Up to 100 km) | Shorter Distance (Up to 100 meters) |
Signal Interference | Immune to EMI | Susceptible to EMI |
Durability | Fragile but corrosion-resistant | Robust and durable |
Cost | Higher Initial Cost | Lower Initial Cost |
Applications | High-speed Data Networks, Telecom | Phone Lines, LANs, TV |
Both optical fiber cables and normal copper cables have their advantages and limitations, depending on the application. Optical fiber cables are ideal for high-speed data transmission, long-distance communication, and environments where electromagnetic interference is a concern. They are more expensive and fragile but offer superior performance in terms of speed, bandwidth, and signal integrity.
Normal copper cables are still widely used in many everyday applications due to their lower cost and durability. However, they fall short when it comes to high-speed data transmission and long-distance communication.
At CROFC, we specialize in producing high-quality optical fiber cables and offer tailored solutions to meet the specific needs of our clients. Whether you're looking for high-performance cables for telecommunications or data networks, our expertise and advanced production capabilities can provide you with the best solutions for your needs.
1. What is the main advantage of optical fiber cables over normal copper cables?
The main advantage of optical fiber cables is their ability to transmit data at much higher speeds and over longer distances with minimal signal loss.
2. Are optical fiber cables more expensive than normal copper cables?
Yes, optical fiber cables are more expensive to produce and install, but they offer superior performance in terms of speed, bandwidth, and durability in the long run.
3. Can optical fiber cables be used for residential internet connections?
Yes, optical fiber cables are commonly used for residential high-speed internet connections, especially for fiber-to-the-home (FTTH) services.
