As global communication networks expand to meet the demands of AI computing, 5G infrastructure, and rural broadband initiatives, the role of Underground Fiber Optic Cable has never been more critical. Unlike aerial deployments that are exposed to weather, wildlife, and pole-related hazards, underground installations offer superior protection, longevity, and aesthetic appeal. However, selecting and installing the right Underground Fiber Optic Cable requires a deep understanding of cable construction, environmental factors, mechanical specifications, and installation best practices. This comprehensive guide covers everything you need to know about Underground Fiber Optic Cable in 2026, with special focus on Direct Buried Fiber Cable applications, performance data, and emerging market trends.
Underground Fiber Optic Cable refers to fiber optic cables specifically designed for installation below ground level. These cables are engineered to withstand the unique challenges of subterranean environments, including moisture, soil pressure, temperature fluctuations, rodent activity, and accidental excavation. Within this category, Direct Buried Fiber Cable represents the most robust solution, designed to be placed directly into the earth without the need for protective conduit.
The construction of high-quality Underground Fiber Optic Cable typically includes multiple protective layers:
Optical fibers: Single-mode (G.652.D, G.657A2) or multi-mode
Water-blocking elements: Gel-filled or dry water-blocking tape
Strength members: Aramid yarn, glass yarn, or steel wire
Armor: Corrugated steel tape, flat FRP, or interlocking metal
Outer sheath: High-density polyethylene (HDPE) with UV and moisture resistance
When planning underground installations, one of the first decisions is whether to use Direct Buried Fiber Cable or a non-armored cable installed within a conduit. The table below compares these two approaches based on key performance metrics.
Feature | Direct Buried Fiber Cable | Non-Armored Cable in Conduit |
|---|---|---|
Crush Resistance | Up to 3000 N/100 mm (steel tape or flat FRP armor) | 300–1000 N/100 mm (conduit provides additional protection) |
Rodent Protection | High – steel tape or flat FRP anti-rodent deters bites | Low to moderate – relies on conduit integrity |
Installation Cost | Lower – no conduit material; single trenching pass | Higher – conduit + cable + separate pulls |
Repair Complexity | Requires excavation and splicing; armor slows access | Cable can be replaced without digging |
Lifespan | 25–30 years with proper installation | 20–25 years (conduit may degrade faster than cable) |
Initial Material Cost | Higher per meter (armor adds cost) | Lower cable cost, plus conduit expense |
Selecting the right Underground Fiber Optic Cable requires evaluating several critical specifications. Understanding these parameters ensures the cable will perform reliably throughout its intended lifespan.
For Direct Buried Fiber Cable, crush resistance is a primary selection criterion. Industry standards (IEC 60794-1) require testing at specified loads:
Standard armored cables: 1000–3000 N/100 mm
Double steel tape armored (GYXTW53): Up to 3000 N/100 mm
Flat FRP anti-rodent designs: Up to 3000 N/100 mm
Higher crush resistance is essential in areas with heavy soil, traffic loads, or deep burial depths.
Rated tensile strength determines how much pulling force the cable can withstand during installation:
Single-jacket armored: Typically 2.5 kN (short-term)
Double-jacket armored: Up to 5.0 kN (short-term)
Steel wire armored: Can exceed 8.0 kN for special applications
For long pulls or difficult terrain, selecting Underground Fiber Optic Cable with higher tensile strength reduces installation risk.
Moisture ingress is the leading cause of underground cable degradation. Quality Underground Fiber Optic Cable incorporates:
Water-blocking gel or dry water-blocking tape in loose tubes
Water-swellable yarns surrounding strength members
Moisture-resistant HDPE sheath
In rural and agricultural areas, rodent damage accounts for a significant percentage of fiber failures. Direct Buried Fiber Cable with flat FRP anti-rodent armor provides superior protection:
Tensile strength ≥1200 MPa
Elastic modulus ≥50 GPa
Rigid structure that injures rodents attempting to chew
Underground cables must perform across seasonal extremes:
Standard operating range: -40°C to +70°C
Installation temperature: Typically -10°C to +50°C
The global fiber optic market is experiencing unprecedented dynamics in 2026. Several factors are driving increased demand for Underground Fiber Optic Cable and Direct Buried Fiber Cable:
1. AI Infrastructure Expansion: The buildout of AI data centers requires massive fiber connectivity between facilities. These connections often rely on Underground Fiber Optic Cable for security and reliability.
2. Rural Broadband Initiatives: Government-funded programs worldwide are extending fiber networks to underserved areas. In rural settings, Direct Buried Fiber Cable offers the most cost-effective solution compared to aerial deployments that face wildlife and weather risks.
3. Supply Constraints: As of early 2026, G.652.D and G.657A2 single-mode fibers are experiencing tight supply and price levels not seen in seven years. This makes selecting the right cable—one that won’t require premature replacement—more critical than ever.
4. Military and Security Applications: Emerging applications in military drone communications and secure government networks increasingly specify armored Underground Fiber Optic Cable for tamper-resistant installations.

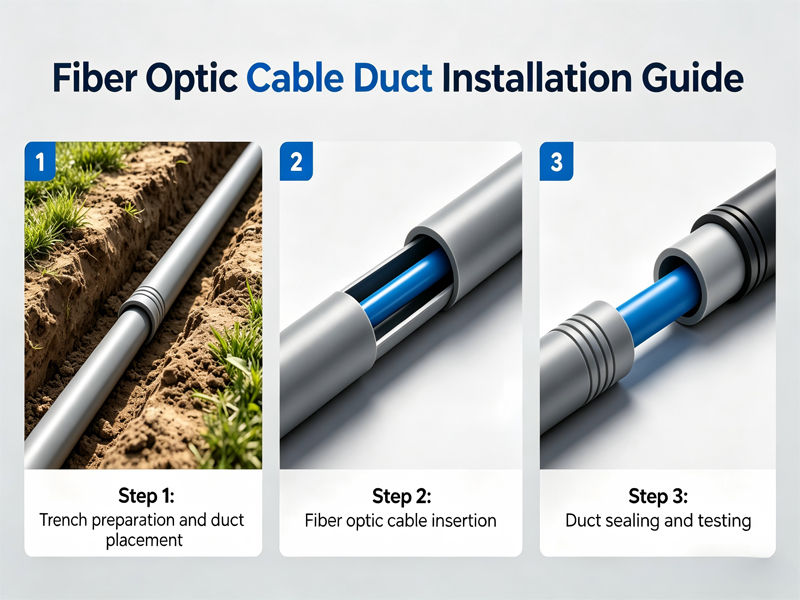

Proper installation is essential to realize the full benefits of Underground Fiber Optic Cable. The following best practices are based on industry standards and field experience.
Depth: Minimum 0.8 meters (30 inches) for residential areas; 1.2 meters (48 inches) for road crossings
Warning tape: Install detectable warning tape 0.3 meters above the cable
Bedding: Use sand or screened soil as a 100mm bedding layer
Backfill: Remove rocks and debris; compact in layers
Marking: Install permanent markers at route changes and splice points
When installing Direct Buried Fiber Cable:
Pulling tension: Never exceed 80% of rated tensile strength
Bend radius: Maintain minimum 15D static / 20D dynamic
Pulling grips: Use mesh grips that distribute tension to strength members, not armor
Lubrication: Use water-based, fiber-safe lubricants for long pulls
Underground Fiber Optic Cable requires specialized splice closures:
Direct-burial closures: Re-enterable, watertight designs with gel seals
Armor continuity: Maintain or properly terminate metallic armor according to grounding requirements
Fiber management: Use splice trays with adequate bend radius protection
For Direct Buried Fiber Cable, the armor type significantly impacts performance, installation, and longevity.
Criterion | Corrugated Steel Tape | Flat FRP Anti-Rodent |
|---|---|---|
Crush Resistance | Excellent (up to 3000 N/100 mm) | Excellent (up to 3000 N/100 mm) |
Rodent Protection | High – physical barrier | High – rigid structure deters bites |
Weight | Heavy | Moderate |
Flexibility | Moderate | Moderate (stiffer than non-armored) |
Grounding Required | Yes (metallic) | No (non-metallic) |
Corrosion Risk | Potential in acidic soils | None |
Environmental Impact | Metallic, recyclable | Resin-based, less recyclable |
Stripping Difficulty | Moderate – sharp edges | Moderate – requires FRP cutter |
Reliable Underground Fiber Optic Cable must pass rigorous testing. Leading manufacturers conduct tests according to IEC 60794-1 and ITU-T standards:
Test Type | Purpose | Typical Requirement |
|---|---|---|
Crush Test (E3) | Verify armor strength | 1000–3000 N/100 mm |
Tensile Test (E1) | Verify strength member capacity | 2.5–5.0 kN |
Water Penetration (F5) | Ensure water blocking | No leakage at 1m head for 24h |
Temperature Cycle (F1) | Verify performance across range | -40°C to +70°C |
Impact Test (E4) | Simulate rock strikes | 5–10 J impact |
Manufacturers with CNAS-certified laboratories provide the highest level of quality assurance, ensuring each reel of Underground Fiber Optic Cable meets or exceeds specifications.
While Direct Buried Fiber Cable has higher upfront material costs than non-armored alternatives, a total cost of ownership (TCO) analysis often favors armored solutions:
Upfront Costs:
Direct Buried Fiber Cable: Higher material cost, single trenching pass
Non-armored + conduit: Lower cable cost, plus conduit material and installation
Lifecycle Costs:
Direct Buried Fiber Cable: Lower maintenance; repairs require excavation but fewer failures
Non-armored + conduit: Easier cable replacement but conduit may fail, requiring full reconstruction
Key Insight: In rodent-prone areas or regions with active construction, the failure rate of non-armored cable can be 5–10 times higher than properly installed Direct Buried Fiber Cable with flat FRP anti-rodent protection.
Underground Fiber Optic Cable represents the backbone of modern communication infrastructure. For applications demanding maximum reliability in harsh subterranean environments, Direct Buried Fiber Cable with robust armor—whether corrugated steel tape or flat FRP anti-rodent—offers superior protection against moisture, crush forces, and rodent damage. With 2026 market conditions driving up fiber prices and extending lead times, selecting the right cable the first time is more critical than ever.
For customized Underground Fiber Optic Cable solutions tailored to your project requirements, contact the experts at Anhui Changrong Optical Fiber & Cable Technology Co., Ltd. (CROFC) for engineering support and a prompt quote.
Q: What is the minimum burial depth for Direct Buried Fiber Cable?
A: For residential areas, the standard minimum depth is 0.8 meters (30 inches). For road crossings and agricultural areas subject to plowing, depths of 1.2 meters (48 inches) or more are recommended. Local codes may vary.
Q: Can Direct Buried Fiber Cable be installed in winter?
A: Yes, but special precautions are required. Cables should be stored above freezing before installation. The ground must be properly thawed or trenched using mechanical methods. Most Underground Fiber Optic Cable can be installed at temperatures down to -10°C with proper handling.
Q: How long does Underground Fiber Optic Cable typically last?
A: When properly selected for the environment and installed correctly, Direct Buried Fiber Cable with steel tape or flat FRP armor typically has a service life of 25–30 years. Factors affecting lifespan include soil chemistry, moisture levels, and protection against excavation damage.
