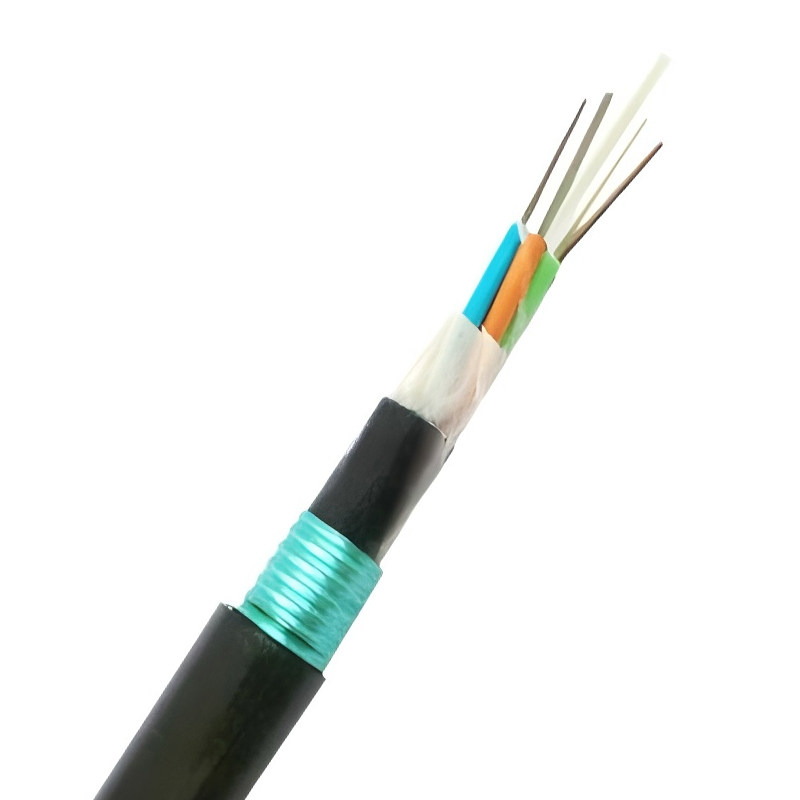

GYFTY53 96FO Double Jacket CST Armored FRP Central Strength Direct Buried Optical Fiber Cable


Availability:

Quantity:



Inquire Add to Basket

The The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes (and fillers) are stranded around the non-metallic strength member to form the cable core. Then the core is filled with water-blocking compound and covered with a PE inner jacket. After the corrugated steel tape(CST) is longitudinally armored over the inner jacket, the cable is completed with a PE outer jacket.

Model:
GYFTY53
Brand:
CHANGRONG TECH

direct buried fiber optic cable outdoor optical fiber cable GYFTY53 duct cable Fiber Optic Cable Outdoor Stranded Loose Tube Armored Optical Fiber Cable Armored Cable Steel tape armored cable CSM FRP

Product Description

GYFTY53 96FO Double Jacket CST Armored FRP Central Strength Optical Fiber Cable for Underground Direct Buried Installation

Model	GYFTY53
Fiber Counts	2 Core - 288 Core
Fiber Type	G652D, G657A1/A2, OM1, OM3
Central Strength Member	FRP
Cable Structure	Stranded Loose Tube
Moisture Proof	Water-blocking yarn & tape
Inner Sheath	MDPE
Armor layer	Corrugated Steel Tape (CST)
Outer Sheath	HDPE
Reel Length	2km, 3km, 4km

Application:

Direct buried/ Duct/ Non-self supporting aerial laying

Cable Cross Section:

GYFTY53-96B1.3

Structure Parameter:

Item	Value
Fiber Counts	96
Tubes	8
Tube Material	PBT
Fiber Count/ Tube	12
Fiber Identification	Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua
OD of Tube	2.0±0.1 mm
Thickness of Tube	0.30±0.05 mm
Color of Tube	Blue Orange Green Brown Grey White Red Black
CSM: FRP	2.5 mm
PE Coated	3.4 mm
Water Blocking Material₁	Water Blocking Yarn and Water Blocking Tape
Ripcord₁	Polyester * 1-Red
Thickness of Inner Sheath	Nominal 0.9 mm
Inner Sheath Material	MDPE
Water Blocking Material₂	Filling compound
Ripcord₂	Polyester * 1-Red
Peripheral Strength Member	Corrugated Steel Tape
Thickness of Outer Sheath	Nominal 1.9 mm
Outer Sheath Material	HDPE
OD of Cable	14.5±0.5 mm
Cable Weight	180kg/km

Features:

● Good mechanical and thermal performance
● FRP as the central strength member
● Hydrolysis resistant loose tube
● Tube filling gel ensures critical protection of fiber
● Stranded compact structure eliminating contraction of tubes
● Rugged, durable PE jacket protects against UV radiation, fungus etc.
● Crush resistance and flexibility
● Water-blocking measures :
- Loose tube gel-filled
- 100% cable filling compound
- Corrugated steel tape (CST) enhancing moisture-proof and Rodent Protection

Packaging and Shipping:

Reel Length:

Standard length 2km, 3km, 4km (others also available)

Drum Options:

Fumigated Wooden Drum, Plywood Drum, Steel-Reinforced Wooden Drum

Marking:

Normally cable marking includes: cable model, fiber type and cores, manufacturer's name, manufacturing date, length at 1m interval, etc. The sheath marking can be changed as customer's requirements. We provide OEM service for cable and drum marking.

Drum Packing
