Proper installation of Armored Optical Fiber Cable is critical to ensuring long-term network reliability, especially in demanding environments such as direct burial, high-rodent areas, and aerial deployments. Unlike standard fiber optic cables, Armored Optical Fiber Cable incorporates robust protective layers—such as corrugated steel tape or flat FRP anti-rodent elements—that require specialized handling techniques. Incorrect installation can compromise the armor’s integrity, leading to fiber damage, signal loss, or premature cable failure. This comprehensive guide provides step-by-step instructions, data-driven best practices, and essential tools required to install Armored Optical Fiber Cable correctly, based on industry standards (IEC 60794-1) and real-world engineering experience.
Before beginning installation, it is essential to understand the internal construction of Armored Optical Fiber Cable. Typical armored designs include:
Central Strength Member: Often FRP or steel wire.
Optical Fibers: Loose tube or tight-buffered, often with water-blocking gel.
Armor Layer: Corrugated steel tape, flat FRP anti-rodent, or interlocking metal.
Inner Sheath: Provides additional moisture protection.
Outer Sheath: UV-resistant polyethylene (PE) or flame-retardant LSZH.
The presence of the armor layer means standard fiber optic installation tools and techniques are insufficient. Specialized cutters, strippers, and grounding procedures are required.
Installing Armored Optical Fiber Cable requires the following tools:
Tool | Purpose |
|---|---|
Armor Stripper | Removes corrugated steel tape or flat FRP layer without damaging inner fibers |
Cable Cutter | Heavy-duty cutter for clean, square cuts |
Mid-Span Access Tool | Allows access to fibers at intermediate points without cutting armor |
Grounding Kit | For metallic armor cables requiring electrical continuity |
Fiber Optic Splicer | Fusion splicer with splice sleeves |
Cable Pulling Grips | Mesh or pulling eyes to distribute tension across strength members |
Bend Radius Protector | Prevents exceeding minimum bending radius during pulls |
Safety Precautions:
Always wear cut-resistant gloves when handling corrugated steel tape armor edges.
Ensure proper grounding of metallic armor to prevent electrical hazards.
Never exceed the cable’s rated tensile strength (typically 2.5 kN to 5.0 kN for armored types).
Maintain minimum bending radius: 15D static / 25D dynamic for double-jacket designs.

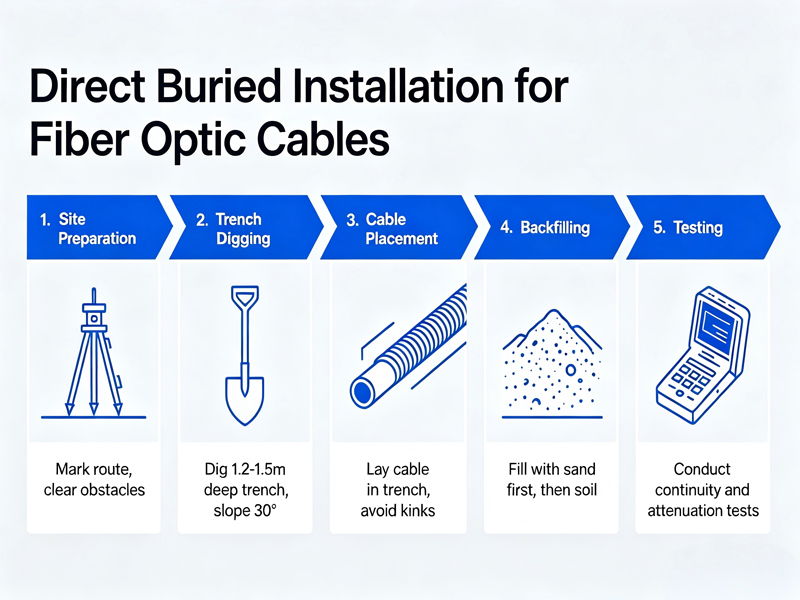

A successful installation begins with thorough planning. Before handling Armored Optical Fiber Cable, conduct a site survey to identify potential hazards such as existing utilities, rodent activity, and environmental stress points. For direct burial projects, verify soil conditions and depth requirements (typically 0.8–1.2 meters). For aerial installations, calculate span lengths and tension loads.
Data Point: According to industry reports, up to 40% of fiber optic failures in harsh environments are attributed to improper installation rather than cable defects. Selecting Armored Optical Fiber Cable with crush resistance up to 3000 N/100 mm only delivers value if the armor is correctly handled during deployment.
Proper cable handling prevents mechanical stress that can damage fibers hidden beneath the armor.
Armored Optical Fiber Cable has higher tensile strength than non-armored types, but limits still apply:
Rated tensile strength: 2.5 kN (short-term) for single-jacket designs; 5.0 kN for double-jacket designs.
Use a pulling grip that attaches to the strength members, not the armor alone.
Monitor pulling tension with a dynamometer; never exceed 80% of rated capacity.
Exceeding the minimum bending radius is a common cause of fiber attenuation and breakage.
Static bending radius: 15× cable diameter (e.g., 15D for a 15mm cable = 225mm minimum).
Dynamic bending radius: 25× cable diameter during pulling.
Use water-based, fiber-safe lubricants for long duct pulls. Armored Optical Fiber Cable with corrugated steel tape may require additional lubrication due to increased surface friction.
This is the most critical step in installing Armored Optical Fiber Cable. Different armor types require distinct techniques.
Score the outer sheath circumferentially at the desired access point using a rotary cutter.
Remove the outer sheath using a sheath splitter, exposing the steel tape.
Use an armor stripper to score the steel tape without cutting into the inner sheath.
Bend and remove the steel tape section carefully. Edges are sharp; wear cut-resistant gloves.
Remove the inner sheath using standard fiber optic strippers to access buffer tubes or fibers.
Common Mistake: Cutting too deep during steel tape removal can nick the inner sheath or fibers, causing latent failure. Always use depth-adjustable tools.
Flat FRP anti-rodent armor is non-metallic, requiring different handling:
Remove outer sheath using standard tools.
Score the flat FRP layer using a specialized FRP cutter or rotary tool.
Flex the cable to snap the FRP along the score line.
Slide the FRP section off carefully. The material is rigid and can splinter.
Inspect for any FRP fragments before proceeding.
Data Comparison: Flat FRP armor offers tensile strength ≥1200 MPa and elastic modulus ≥50 GPa, making it stiffer than steel tape in some configurations. While it provides excellent rodent protection, it requires careful handling to avoid cracking during stripping.
Armor Type | Stripping Difficulty | Tool Requirement | Risk Factor |
|---|---|---|---|
Corrugated Steel Tape | Moderate | Armor stripper, sheath splitter | Sharp edges |
Flat FRP Anti-Rodent | Moderate-High | FRP cutter, rotary tool | Splintering |
Once the armor is stripped and fibers are exposed, follow standard fiber optic splicing procedures with additional considerations for armored cables.
Remove any water-blocking gel using gel cleaner.
Organize buffer tubes and individual fibers using tube organizers.
Maintain proper bend radius throughout the splicing tray.
Fusion splicing is recommended over mechanical splicing for armored cable installations due to lower loss and higher reliability.
Typical splice loss for single-mode fiber (G.652.D, G.657A2) should be ≤0.05 dB per splice.
Use splice sleeves and organize splices in trays designed for armored cable closures.
For buried Armored Optical Fiber Cable, use direct-burial splice closures with re-enterable seals.
For aerial installations, use dome-type closures rated for the environment.
Ensure metallic armor continuity is maintained or properly terminated per grounding requirements.
If the Armored Optical Fiber Cable uses corrugated steel tape or other metallic components, proper grounding is essential for safety and lightning protection.
Single-point grounding: Typically at the entrance facility or where the cable enters a building.
Bonding: Connect the metallic armor to the building’s grounding electrode system using approved bonding clamps and conductors (minimum 6 AWG copper).
Isolation: In long spans, avoid multiple ground points to prevent ground loops.
Industry Standard: Following IEEE 1100 and NEC Article 800, metallic armor must be grounded within 20 feet of building entry to minimize lightning surge damage.
After installation, verify that Armored Optical Fiber Cable meets performance specifications before commissioning.
OTDR (Optical Time Domain Reflectometer): Trace each fiber to verify splice loss, total attenuation, and identify any high-loss events.
Power Meter: Measure end-to-end loss; should comply with design budget (typically ≤0.36 dB/km @1310nm for G.652.D fibers).
Visual Fault Locator (VFL): Detect any severe bends or breaks.
Verify crush resistance points: No evidence of cable deformation from excessive compression.
Check bend radius at all turns and splices.
Confirm armor grounding continuity (if applicable).
Record splice locations, fiber mapping, and test results.
Mark cable routes with warning tape for buried installations indicating Armored Optical Fiber Cable presence.
Mistake | Consequence | Prevention |
|---|---|---|
Exceeding pull tension | Fiber breakage, increased attenuation | Use pulling grips, monitor tension |
Tight bending radius | Microbends, signal loss | Use bend radius protectors |
Improper armor stripping | Fiber nicks, latent failures | Use correct tools, train technicians |
Missing grounding (metallic armor) | Electrical hazards, lightning damage | Follow grounding standards |
Using wrong closure | Water ingress, corrosion | Select environment-specific closures |
Installing Armored Optical Fiber Cable correctly requires specialized tools, strict adherence to tension and bend radius limits, and careful handling of the armor layer—whether corrugated steel tape or flat FRP anti-rodent. The extra effort pays dividends in long-term reliability, especially in direct burial, high-rodent, and aerial environments where non-armored cables would quickly fail. With current market conditions driving up fiber prices and extending lead times, a properly installed armored cable is your best defense against costly network outages and replacements.
For project managers and installation teams seeking high-quality Armored Optical Fiber Cable backed by rigorous quality control, Anhui Changrong Optical Fiber & Cable Technology Co., Ltd. (CROFC) offers a full range of solutions. Their 230,000 sqm facility houses 9 advanced fiber drawing towers and 18 cable sheathing lines, producing armored cables like GYXTW53 (double steel tape armored) and flat FRP anti-rodent designs with crush resistance up to 3000 N/100 mm. With a CNAS-certified laboratory and ISO 9001/14001/45001 certifications, every cable meets IEC 60794-1 standards—giving you confidence that your installation will perform reliably for decades.
Q: Can I use standard fiber optic stripping tools for Armored Optical Fiber Cable?
A: No. Standard tools are not designed to cut through corrugated steel tape or flat FRP anti-rodent layers. You need specialized armor strippers, FRP cutters, or rotary tools to remove the armor safely without damaging internal fibers.
Q: How do I know if the metallic armor in my cable needs grounding?
A: If your Armored Optical Fiber Cable contains metallic components (such as corrugated steel tape or steel wire strength members), grounding is required for safety and lightning protection. Check the cable specification sheet. Non-metallic armor like flat FRP does not require grounding.
Q: What is the minimum bend radius for Armored Optical Fiber Cable during installation?
A: For most double-jacket armored designs, the dynamic bend radius (during pulling) is 20–25 times the cable diameter, while the static bend radius (after installation) is 15–20 times the cable diameter. Always consult the manufacturer’s datasheet, as values vary by armor type and jacket configuration.
