When designing a reliable communication network, one of the most critical decisions engineers face is whether to deploy Armored Optical Fiber Cable or a standard non-armored alternative. This choice directly impacts long-term maintenance costs, installation complexity, and network lifespan. With the global fiber optic market experiencing supply constraints and rising prices in 2026—driven by AI computing power, FTTH expansion, and military drone applications—selecting the right cable structure has never been more important. This article provides a comprehensive, data-driven comparison to help you determine which solution best fits your project requirements.

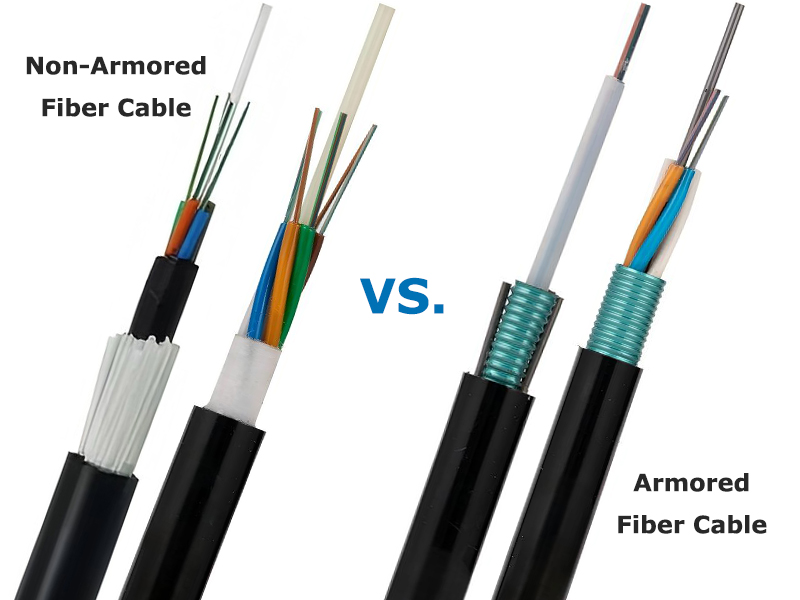

Armored Optical Fiber Cable is defined by the inclusion of a robust protective layer between the inner optical core and the outer jacket. This armor typically consists of corrugated steel tape, flat FRP (Fiber Reinforced Plastic), or interlocking metal elements. The primary function of this layer is to provide exceptional mechanical protection against crushing, impact, rodent bites, and environmental stress. Common types include GYXTW53 (double steel tape armored), GYFTS (corrugated steel tape armored with aramid yarn), and flat FRP anti-rodent cables. These designs are engineered for demanding environments such as direct burial, high-tension aerial spans, and areas with heavy rodent activity.
Non-armored cables rely on their outer sheath and central strength members—such as aramid yarn, glass yarn, or FRP—for protection. They lack the metallic or rigid plastic armor layer, making them lighter, more flexible, and easier to handle. Common examples include ADSS (All-Dielectric Self-Supporting) cables for power corridors, FTTH drop cables, and indoor distribution cables. While they are cost-effective and suitable for controlled environments, they offer significantly lower resistance to mechanical threats.
To make an informed decision, we must evaluate quantitative data. The table below compares typical specifications based on industry standards (IEC 60794-1) and real-world manufacturing capabilities.
Feature | Armored Optical Fiber Cable | Non-Armored Optical Fiber Cable |
|---|---|---|
Crush Resistance | Up to 3000 N/100 mm (steel tape or flat FRP) | Typically 300–1000 N/100 mm |
Rodent Protection | High – steel tape or flat FRP deters bites effectively | Low – glass yarn provides minimal deterrent |
Tensile Strength | 2.5 kN – 5.0 kN (short-term), suitable for long pulls | Varies; ADSS up to 4.5 kN, but indoor types are much lower |
Bending Radius | Static: 15D–25D (stiffer, less flexible) | Static: 10D–20D (more flexible) |
Weight | Heavy – typically 150–300 kg/km | Light – typically 45–100 kg/km |
Installation Ease | Requires specialized tools and skilled labor | Faster termination, standard tools |
Environmental Durability | Excellent – withstands moisture, temperature extremes, UV | Good when installed in ducts or with proper jackets (PE/AT) |
For projects requiring direct burial without conduit, Armored Optical Fiber Cable is the standard choice. The corrugated steel tape or flat FRP armor provides superior crush resistance to withstand backfill pressure and accidental excavation. It also acts as an effective moisture barrier, significantly extending cable life in wet soil conditions. Non-armored cables in these scenarios would require additional conduit, increasing material and labor costs.
Rodent damage is one of the leading causes of fiber network failures in rural, agricultural, and even urban environments. In these settings, Anti-Rodent Armored Optical Fiber Cable is essential. Products utilizing flat FRP bite repellent offer tensile strength exceeding 1200 MPa and high rigidity, making it physically difficult for rodents to chew through. In contrast, glass yarn anti-rodent cables are less effective because the fine fibers lack the stiffness to deter persistent rodents. For long-term reliability, armored solutions are non-negotiable.
While ADSS cables (a type of non-armored) are optimized for high-voltage power corridors, certain aerial routes demand the added robustness of armor. In coastal areas with high wind loads, regions prone to ice accumulation, or routes with frequent wildlife interference, Armored Optical Fiber Cable with dual jackets and aramid reinforcement delivers superior long-span reliability. Manufacturers like Changrong Tech offer designs rated for spans up to 800 meters with tensile strengths up to 4.5 kN.
The global optical fiber market is currently experiencing a historic supply-demand imbalance. As of early 2026, G.652.D and G.657A2 single-mode fibers are facing tight supply and price levels not seen in seven years. Demand from AI infrastructure, FTTH deepening, and emerging applications like military drones has created a supply crunch. In this environment, network downtime becomes even more costly. Investing in Armored Optical Fiber Cable upfront—with its proven mechanical protection and longer lifespan—is a strategic move to avoid expensive repairs and service interruptions during a period of constrained supply.
The higher initial material cost of Armored Optical Fiber Cable is often cited as a drawback. However, a full total cost of ownership (TCO) analysis tells a different story.
Upfront Costs: Non-armored cables are cheaper and faster to install, making them attractive for short-term or low-risk projects.
Lifetime Costs: Each failure of a non-armored cable in a harsh environment incurs excavation, splicing, and outage penalties. A single repair event can easily exceed the initial cost savings. Armored Optical Fiber Cable significantly reduces such risks, delivering lower maintenance costs over a 20–30 year network lifespan.
Additionally, custom manufacturing options allow for tailored armor types. For example, flat FRP anti-rodent solutions provide a balance between protection and weight, offering high crush resistance without the full heft of steel tape.
The reliability of any Armored Optical Fiber Cable depends on rigorous quality control. Leading manufacturers operate CNAS-certified laboratories and adhere to IEC 60794-1 standards. Key tests include:
Tensile Test (IEC60794-1-21 E1): Verifies rated tensile strength under installation and environmental stress.
Crush Test (IEC60794-1-21 E3): Confirms the armor’s ability to withstand heavy loads.
Impact Test (IEC60794-1-21 E4): Simulates falling rocks or accidental strikes.
Temperature Cycle Test (IEC60794-1-22 F1): Ensures performance from -40°C to +70°C.
These tests guarantee that whether you choose steel-tape armor for direct burial or interlocking armor for industrial sites, the cable will perform as specified.
Criterion | Flat FRP Anti-Rodent | Glass Yarn Anti-Rodent |
|---|---|---|
Rodent Deterrence | High – rigid structure injures rodents | Low – fine fibers cause minimal harm |
Mechanical Strength | Tensile ≥1200 MPa, adds cable strength | No self-support, weakens if damaged |
Installation | Complex, requires splicing of FRP tape | Hazardous due to loose fibers |
Environmental Impact | Resin cross-linking reduces fiber scattering | Loose fibers can scatter, less eco-friendly |
Cost | Higher upfront, lower lifetime cost | Lower material cost but higher risk of failure |
So, which is better: Armored Optical Fiber Cable or non-armored? The answer depends entirely on your deployment environment. For direct burial, high-rodent areas, high-tension aerial routes, and any application where mechanical threats are present, armored solutions deliver superior crush resistance, rodent protection, and long-term reliability. The higher upfront investment is justified by reduced maintenance costs and extended network lifespan—especially critical in today’s market of tight fiber supply and rising prices.
For indoor installations, controlled duct environments, and temporary deployments, non-armored cables offer cost and flexibility advantages without compromising performance.
Choosing the right cable is only part of the equation. Working with an experienced manufacturer ensures you receive products backed by stringent quality control. Anhui Changrong Optical Fiber & Cable Technology Co., Ltd. (CROFC) operates a 230,000 sqm facility with 9 fiber drawing towers, 18 cable sheathing lines, and a CNAS-certified laboratory. Their portfolio includes both high-performance Armored Optical Fiber Cable solutions—such as GYXTW53, GYFTS, and flat FRP anti-rodent designs—and non-armored options like ADSS and FTTH drop cables. With annual output of 15 million core kilometers of fiber and over 350,000 kilometers of cable, they provide the scale, quality, and engineering support to ensure your network stands the test of time.
Contact us for more information！
Q: Can Armored Optical Fiber Cable be used indoors?
A: Yes, but it is often not ideal. The stiffness and large bending radius (15D–25D) make routing through risers and cable trays difficult. For indoor applications, non-armored plenum-rated cables or interlocking armored cables (which offer flexibility) are typically preferred.
Q: Does Armored Optical Fiber Cable require special installation tools?
A: Yes. Steel tape and flat FRP armor require specialized cutters and experienced technicians to strip the armor without damaging the internal fibers. Non-armored cables can be terminated with standard tools, making them faster to deploy.
Q: Is the Anti-Rodent protection of flat FRP really better than glass yarn?
A: Absolutely. Flat FRP provides high rigidity and tensile strength (≥1200 MPa), causing injury to rodents and effectively deterring attacks. Glass yarn, while cheaper, lacks stiffness and is often ineffective against persistent rodent damage.
