FTTH projects become expensive when the physical route must be opened again each time capacity changes. An air blown micro cable system addresses that problem by separating civil infrastructure from fiber activation. Microducts can be installed while trenches, buildings or streets are accessible, and compact fiber can be introduced later as service areas are ready. The result is not a magic reduction in every budget line. It is a more flexible deployment model that can improve speed, control disruption and make later capacity decisions less disruptive.
The strongest benefit is the ability to add fiber without rebuilding the full pathway.
Faster deployment comes from prepared routes and repeatable installation, not from skipping route inspection.
Lifecycle savings depend mainly on avoided repeat civil work and better alignment between capacity and demand.
FTTH projects should plan duct occupancy, access points and records before the first cable is blown.
In a conventional rollout, construction and cable installation are often tightly coupled. If a route must be reopened for a later cable, costs can include permits, traffic control, reinstatement, site access and crew coordination in addition to the cable itself. Those costs vary substantially by country and location, so a responsible project estimate should not use generic savings percentages.
Air blowing creates a different sequence. During the initial civil stage, install a microduct network with spare capacity. When an area is ready for service, prove the duct, configure the blower and install the selected cable. The cable can be a compact GCYFTY air-blown microduct fiber optic cable instead of a large cable selected only to cover uncertain demand years ahead.
Time is saved before the blower starts. A project with approved routes, tested ducts, accessible chambers and staged materials can move from activation decision to installed cable with fewer field dependencies. The cable crew does not need to repeat the full excavation process merely to add a previously planned fiber path.
The field operation also has a compact workflow: feed the cable from the drum, blow through the accepted duct, leave end allowance, splice, test and record the route. This can be particularly useful in populated streets, campuses and developments where access windows are narrow. However, a blocked duct or poor joint can erase that advantage. Quality planning is a speed tool.
The cost comparison should use stages, not one total headline. Consider the following model:
Project stage | Conventional approach | Microduct and air-blown approach |
|---|---|---|
Initial civil work | Build route and install cable capacity | Build route with populated and spare microducts |
First service launch | Commission installed cable | Blow cable into required ducts and commission |
Expansion | May require new cable installation access | Use an available documented microduct where suitable |
Network records | Track cables and route assets | Track cables plus duct occupancy and spare pathways |
Savings are most likely when later demand is uncertain but future route access will be difficult. If all capacity is known and the route is easily accessible, the justification may be weaker. The proper estimate includes duct materials, cable, equipment, labor, civil work, approval requirements, restoration and the probability of later expansion.
First, divide the FTTH build into logical service zones. Each zone should have clear boundaries, accessible installation points and a fiber-count plan. Next, assign ducts for active service, future growth and operational contingency. Avoid consuming every pathway in the first stage simply because it is present.

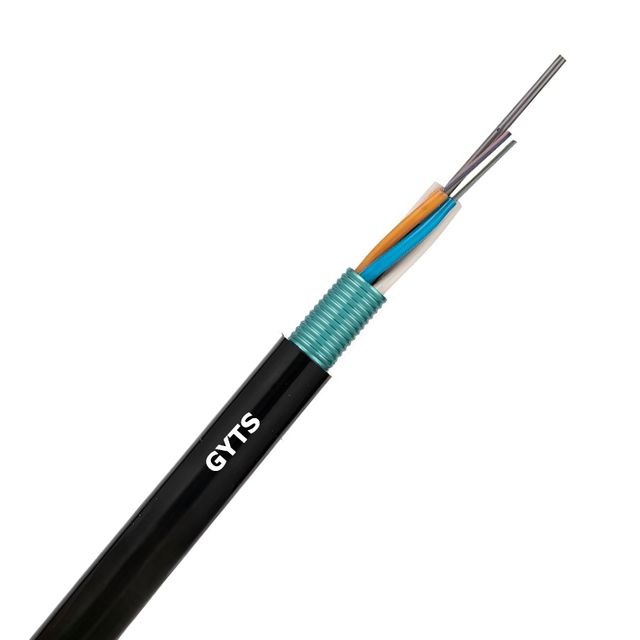

Second, match the cable to the route. CROFC lists the GCYFTY design with a stranded loose-tube structure, non-metallic FRP central strength member and water-blocking yarn. Its published product page identifies air-blowing microduct laying as the application. For larger or conventionally protected route sections, evaluate the wider duct fiber cable portfolio rather than forcing one construction across the network.
Third, document installation constraints. Keep actual duct IDs, cable IDs, end points, spare ducts, route changes and test records in the as-built package. This information is what allows a future team to use the spare pathway confidently instead of commissioning exploratory field work.
Consider a new housing development delivered in phases. During road and utility work, the contractor installs multiway microduct routes between the local access point and each block. In phase one, the operator blows fiber only to occupied blocks. When later blocks are handed over, the operator can assess the reserved ducts, add the required cable and complete optical testing without reopening the original road corridor. At the final subscriber connection, a dedicated FTTH drop cable can address the building-entry and last-mile portion.
This is an illustrative planning pattern, not a claim that every development will follow the same route or budget. The decision must account for local construction rules, duct ownership and access responsibilities.
Do not base the project on an assumed blowing distance. Validate representative routes. Check that ducts are dry and continuous, select seals matched to the actual cable, and use trained operators. Establish an escalation plan for a cable that encounters abnormal resistance. Preventing a failed run protects both the schedule and the cable.
Supplier capability is also part of risk control. CROFC identifies itself as a manufacturer of optical fiber and cable and presents its company profile and quality assurance information. Use those pages as a starting point, then obtain the precise configuration, test requirements and commercial terms relevant to the order.
Air-blown microduct fiber makes FTTH deployment faster and more cost-effective when it gives the project a reusable pathway for future capacity. Its value is greatest in phased builds and difficult-access routes, provided the microduct network is engineered, accepted and documented properly. For a route-specific review of cable construction, fiber count and drum length, contact CROFC.
No. It can reduce the need for repeat access work after microducts are installed, but the initial pathway still has to be built or made available.
A verified microduct route with suitable dimensions, manageable geometry, access points and a credible future-capacity need is a strong candidate.
Yes. The system supports staged cable introduction, so capacity can be aligned with the network activation plan.
Prove ducts early, verify cable-to-duct compatibility and run a representative field trial before the main deployment.
Record route locations, duct IDs, occupied and spare ducts, cable IDs, closures, splice data and optical test results.
