Armored Optical Fiber Cable is a specialized type of fiber optic cable designed to provide additional protection to the delicate optical fibers inside. It includes reinforced layers, typically made of metal, to safeguard against physical damage, moisture, and environmental stress. This type of cable is ideal for applications in harsh environments such as outdoor installations, underground networks, and industrial settings, where standard fiber optic cables might not offer enough protection.
Armored Optical Fiber Cable provides enhanced protection compared to standard fiber optic cables by incorporating additional metal armor. This extra layer ensures that the fiber optic cables can withstand physical impacts, rodent damage, and environmental wear, making them essential for outdoor, underground, and industrial applications.
At a basic level, Armored Optical Fiber Cable consists of multiple layers designed to protect the optical fiber core — the actual medium that transmits data as pulses of light. The essential components typically include:
1. Optical Fiber Core
This is the central part of the cable that carries data in the form of light signals. It may be a single fiber or multiple fibers within the same cable structure.
2. Strength Members
Materials like Kevlar®, fiberglass rods, or other reinforced yarns help support the cable’s tensile strength and prevent elongation during installation or maintenance.
3. Armor Layer
This is the defining feature of Armored Optical Fiber Cable, consisting of metallic materials like steel or aluminum wrapped around the cable to protect against external threats including crushing forces, animal bites, or impacts.
4. Outer Jacket
Additional plastic sheaths (e.g., polyethylene or PVC) offer environmental protection against moisture, UV radiation, and chemical corrosion.

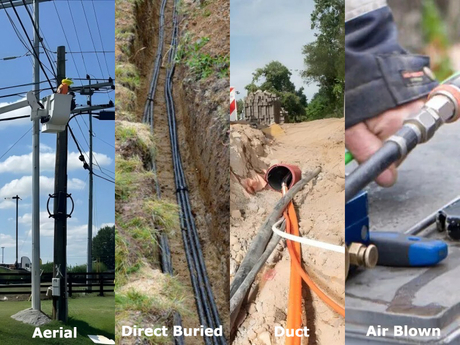

In some designs, especially heavy‑duty outdoor cables, multiple armor layers and reinforced jackets are used to balance flexibility with durability — enabling direct burial or aerial deployments that require exceptional mechanical resilience.
The primary purpose of Armored Optical Fiber Cable is to provide superior protection where standard fiber optic cables fall short. Without armoring, fiber cables are vulnerable to mechanical stress or damage during installation, environmental exposure, rodent activity, or accidental cuts — all of which can cause costly network outages or degraded performance.
Armored Optical Fiber Cable solves these challenges with their reinforced protective layers. This makes them ideal for demanding environments such as:
Outdoor and underground installations where cables may be subjected to digging, soil pressure, or environmental stressors.
Industrial settings with high mechanical loads, vibration, or exposure to chemicals.
High‑traffic zones and infrastructure backbones where accidental impact could occur.
Rodent‑prone areas where ordinary cables risk being chewed.
By addressing these critical pain points, Armored Optical Fiber Cable enhances network resilience and avoids the high cost of cable repair or replacement.
There are multiple ways to classify Armored Optical Fiber Cable, depending on materials, structure, application, or installation methods:
Type | Material | Typical Use |
|---|---|---|
Interlocking Armor | Aluminum helically wrapped | Indoor/outdoor use where crush resistance and rodent protection are needed. |
Corrugated Armor | Steel tape wrapped longitudinally | Heavy‑duty outdoor applications and direct burial scenarios. |
Stainless Steel Micro‑Armor | Micro stainless steel braid | Lighter weight with high crush resistance and rodent protection. |
Interlocking armor offers flexible reinforcement, while corrugated armor provides superior mechanical strength for harsh environments. Stainless steel micro‑armor represents advanced lightweight technologies that balance performance with easier installation.
Indoor Armored Optical Fiber Cable
Designed for environments where physical damage is a risk, such as data centers or cabling trays with heavy traffic.
Outdoor Armored Optical Fiber Cable
Engineered for direct burial, aerial pathways, or long‑distance campus backbones.
Direct Burial Armored Cable
Typically uses heavier armor and protective jackets to withstand soil pressure and construction activities without conduits.
Type | Description |
|---|---|
Tight‑Buffered Armored Cable | Compact design, suitable for indoor/outdoor transition zones and shorter runs with frequent connections. |
Loose‑Buffered Armored Cable | Ideal for long‑haul outdoor cables with greater fiber counts and environmental resistance. |
Understanding how Armored Optical Fiber Cable compares to standard (unarmored) variants helps highlight when armor is essential:
Feature | Armored Optical Fiber Cable | Unarmored Fiber Optic Cable |
|---|---|---|
Physical Protection | Excellent — metal or composite armor protects against crushing, impact, rodents. | Basic — only jacket protection; vulnerable if exposed. |
Durability in Harsh Environments | High — suitable for direct burial and industrial use. | Moderate — best for controlled indoor settings. |
Cost | Higher due to protective materials and manufacturing. | Lower initial cost; may require conduits for similar protection. |
Installation Ease | More Complex — heavier and less flexible. | Easier — lighter and more flexible. |
Suitable Use Cases | Outdoor, industrial, direct burial, high‑risk zones. | Indoor, protected pathways, low‑risk environments. |
While unarmored cables remain suitable for many installations, armored variants are indispensable where physical threats or environmental challenges are present.
The benefits of choosing Armored Optical Fiber Cable extend far beyond just physical integrity. These cables deliver value throughout the lifecycle of a network project:
The primary advantage is shielding the optical fibers from impacts, crushing forces, rodent attacks, and mechanical strain — significantly reducing the risk of signal loss or downtime.
Armored fiber cables withstand temperature fluctuations, moisture, UV exposure, and abrasive conditions far better than unarmored designs.
With improved resilience, networks incorporating armored cables often experience fewer failures, reducing maintenance frequency and long‑term repair costs.
The rugged nature allows deployment in direct burial, industrial plants, outdoor backbones, and high‑traffic zones without the need for extensive protective conduits.
Due to armored protection, overall service life increases dramatically — armored fiber installations can last significantly longer compared to non‑armored networks deployed without protection.
Because of their durability and protection, Armored Optical Fiber Cable serves a wide array of applications across sectors:
Armored cables support outdoor backbones, building interconnects, and critical infrastructure where long‑distance, high‑speed connectivity must be protected.
In data centers, armored fiber cables protect fibers where pathways are crowded with equipment and where accidental damage may occur.
Manufacturing floors, chemical plants, or heavy‑industry locations benefit from armored fiber runs that resist physical hazards and interference.
Armored cables are ideal for direct burial or aerial applications in campus backbones, municipal networks, and utility infrastructures.
Construction sites, transport corridors, rodent‑prone regions, and areas exposed to mechanical damage all demand the robust qualities of armored fiber‑optic solutions.
As global connectivity demands continue to rise — driven by 5G rollout, edge computing, industrial IoT, and smart infrastructure — Armored Optical Fiber Cable adoption is expected to grow. Key trends shaping the future include:
Lightweight Armor Technologies: New materials such as micro stainless steel armor provide superior protection with lighter weight and easier installation.
Hybrid Designs: Integration of power and fiber (e.g., composite armored cables) for telecom and IoT deployments.
High‑Fiber Count Armored Cables: Supporting data‑intensive applications like data centers and enterprise networks.
Overall, armored optical fiber continues to evolve, offering robust solutions for modern network challenges.
Armored Optical Fiber Cable stands out as a highly durable, reliable, and future‑ready solution where standard fiber optic cables may fall short. Its reinforced protection against physical damage, environmental stress, and mechanical hazards makes it ideal for outdoor deployments, industrial settings, and areas where cable integrity is critical. By understanding its structure, benefits, types, and use cases, network planners and engineers can implement more resilient communication systems that last longer and perform better under demanding conditions.
At CROFC, we manufacture high‑quality Armored Optical Fiber Cable designed to meet stringent industry standards and serve diverse applications — from telecommunications networks and data centers to industrial automation, outdoor backbone links, and more — delivering reliable performance you can trust.
Q1: What is the main difference between armored and standard fiber optic cable?
A: Armored optical fiber cable includes an extra layer of protective material, usually metal, around the fiber to resist physical damage and environmental hazards, unlike standard fiber optic cable which has only a basic protective jacket.
Q2: Are armored optical fiber cables necessary for indoor use?
A: While not always required for all indoor uses, armored cables are recommended in high‑risk indoor areas where accidental damage or rodent attacks are a concern — such as data centers or heavy traffic corridors.
Q3: Do armored optical fiber cables cost more than unarmored ones?
A: Yes — the additional materials and protection increase cost, but this investment often pays off through reduced maintenance and enhanced durability, especially in harsh environments.
