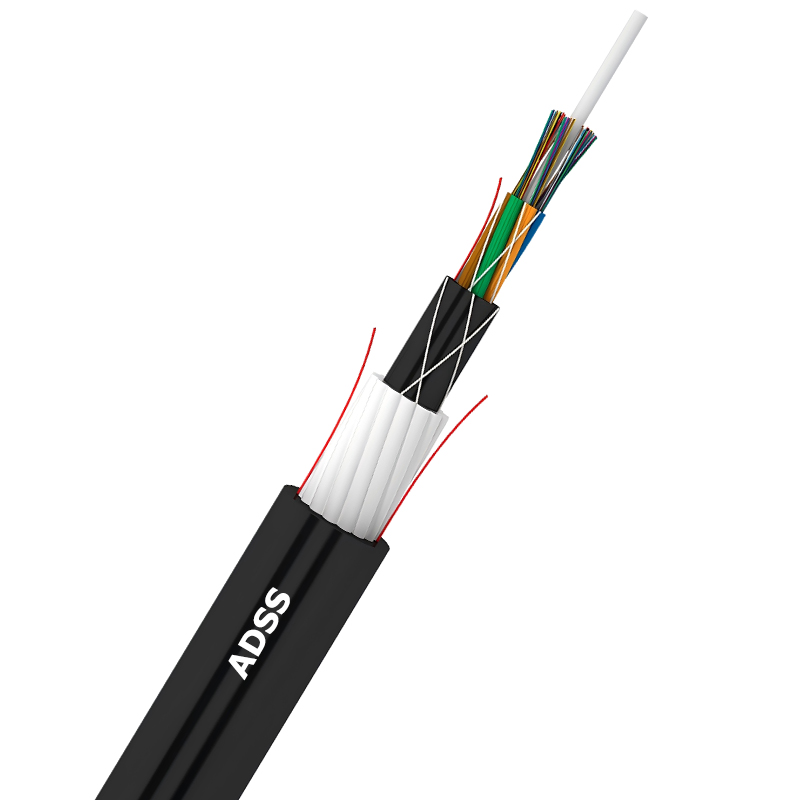

ADSS Anti-Rodent with Round FRP Armor Outdoor Aerial Fiber Optic Cable
| Model | ADSS Anti-Rodent |
| Fiber Counts | 2core - 144core |
| Fiber Type | ITU-T G.652.D |
| Central Strength Member | FRP |
| Tube | PBT Loose Tube Gel-filled |
| Aditional Strength Member1 | Kevlar Aramid Yarn (optional) |
| Aditional Strength Member2 | Round FRP Armor |
| Moisture Resistance | Water-Blocking Tape & Water-blocking Yarn |
| Inner & Outer Sheath | Black PE |
| Span customized | 80/100/120/150/200/300m etc. |
| Application | Self-supporting overhead laying |
| Drum Length | 2km, 3km, 4km |
This is an all-dielectric self-supporting (ADSS) overhead fiber optic cable specially engineered for rodent-infested outdoor aerial routes. It adopts a full non-metallic design with a full-circle round FRP rod armor layer as the core anti-gnawing barrier, combining chemical anti-rodent outer sheath additives and physical rigid FRP protection to stop damage from squirrels, rats, marmots and birds.
Without steel messenger wire or metal armor, the cable supports self-suspension on power transmission poles/towers from low to medium-high voltage grids (≤220kV). The round full FRP armor distributes impact and biting force evenly around the cable circumference, outperforming side flat FRP anti-rodent ADSS in uniform wildlife protection. It features loose tube water-blocked core, high-tensile aramid yarn load-bearing layer, double PE sheath system, and fits long-span overhead aerial deployment in forests, mountainous, rural and wild areas with severe rodent hazards.

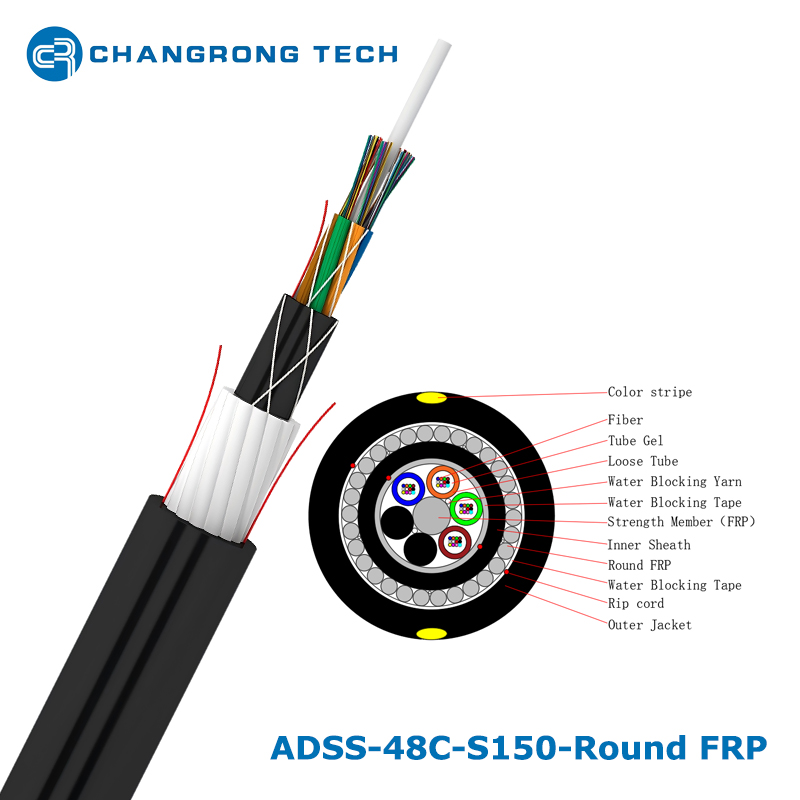

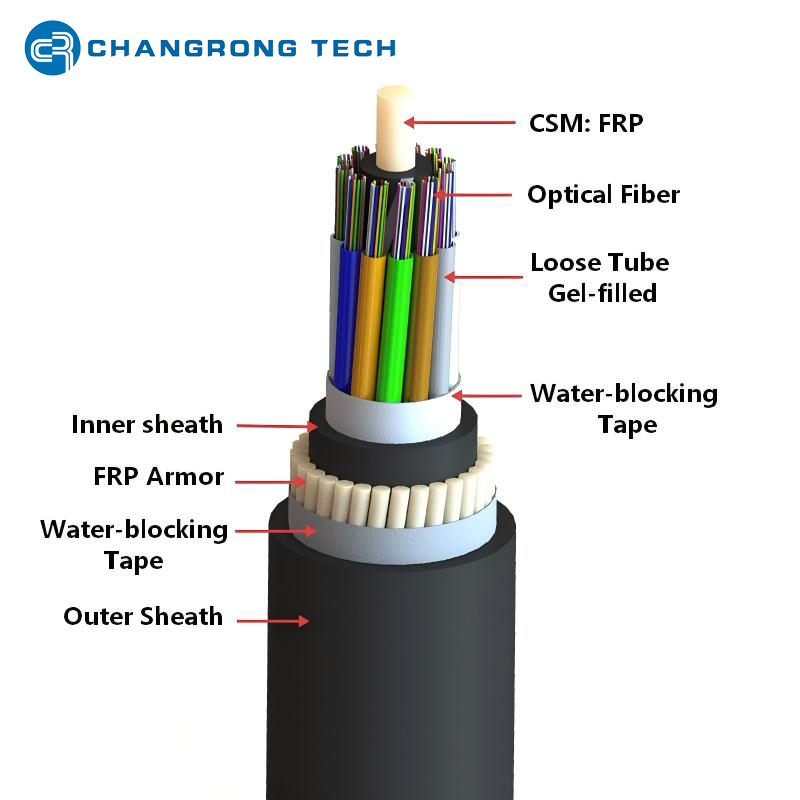

Design Type 1 : Armored with Round FRP rods, double sheath

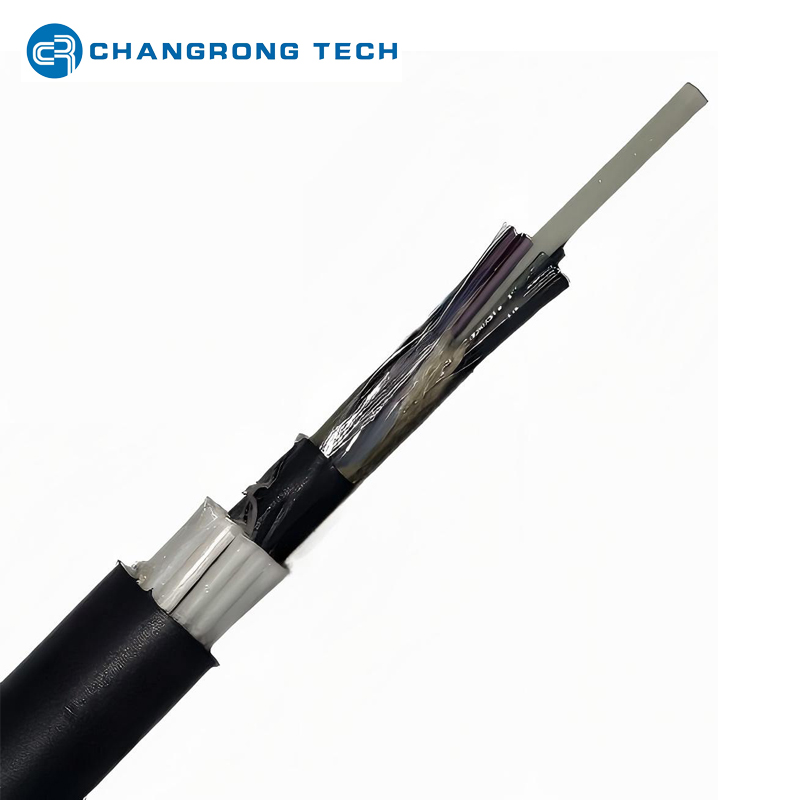

ADSS Anti-Rodent with Round FRP Armor

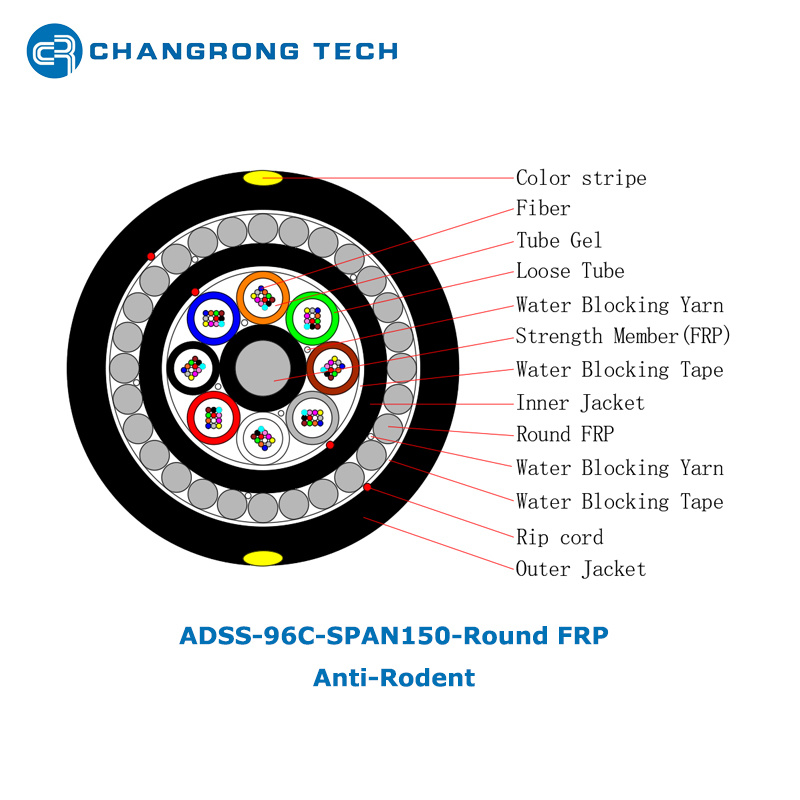

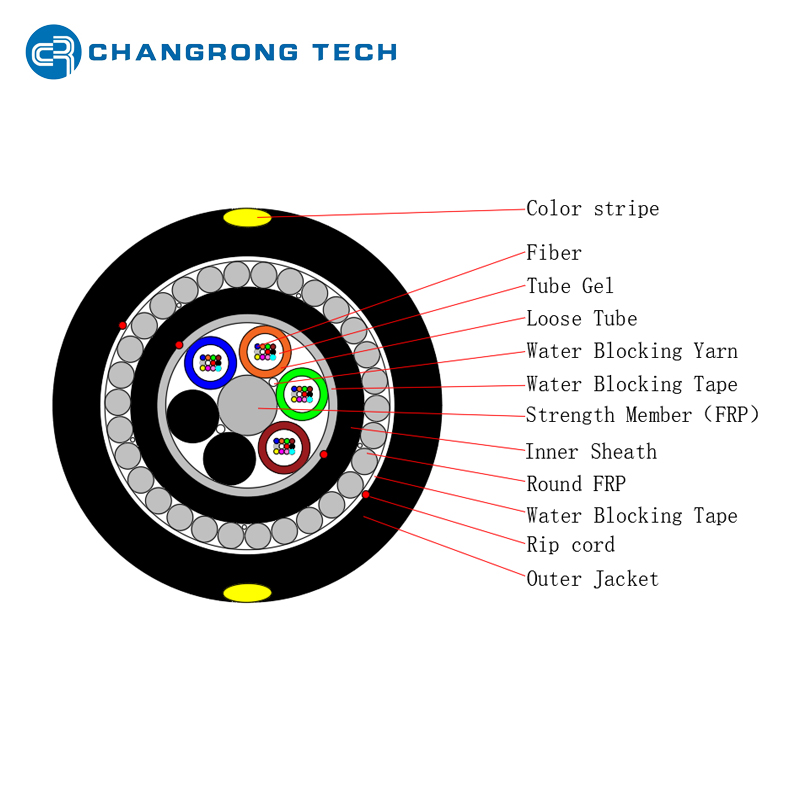

Cable Cross Section

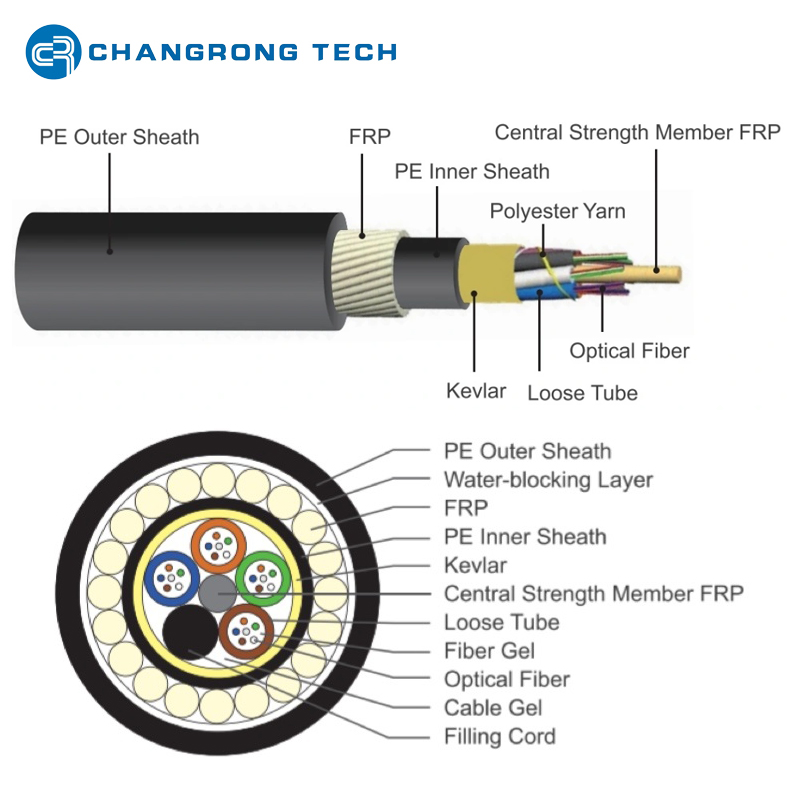

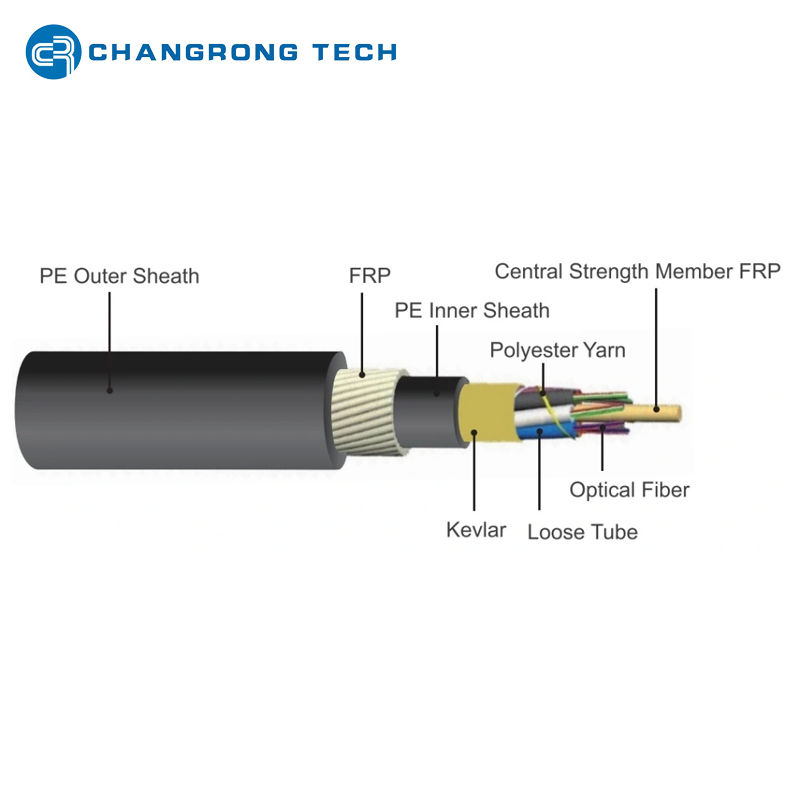

Design Type 2 : Armored with Round FRP rods, Kevlar Aramid Yarn reinforced, double sheath
ADSS with Kevlar and Round FRP Armor

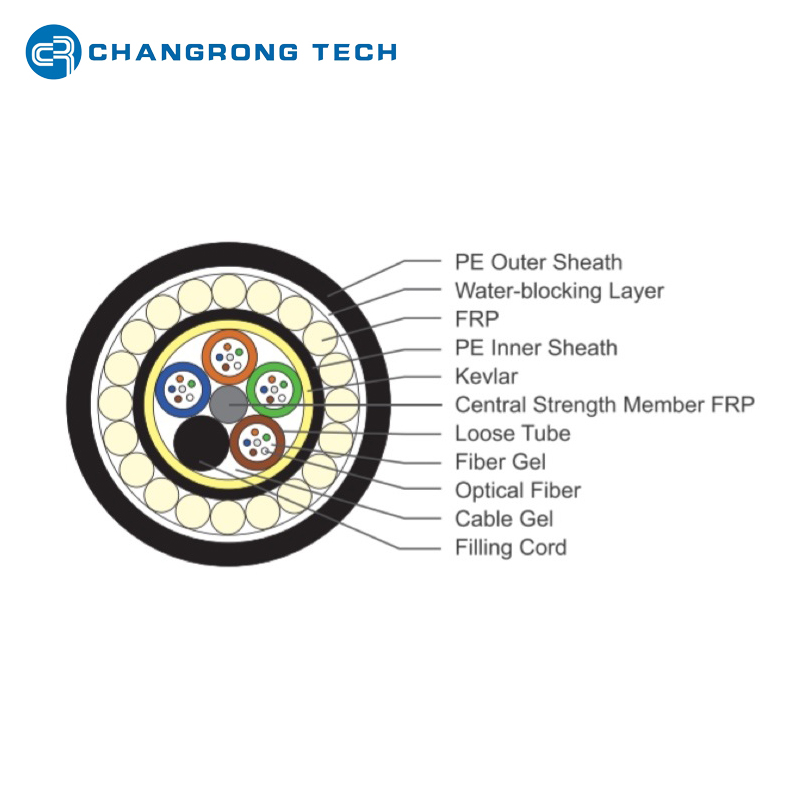

Cable Cross Section
360° Round FRP rods anti-rodent and anti-impact protection better than partial flat FRP ADSS;
All Dielectric Fully non-conductive, safe to deploy alongside 10kV–220kV power lines with live-line installation allowed;
Self-supporting design, without additional messenger wire, reduce installation costs
Customizable span length, fiber count and tension grade;
Wide temperature adaptability (-40℃ to +70℃);
Excellent water-blocking and weather resistance;
Easy field stripping with built-in ripcords,
long 25+ year service life and low later maintenance cost.
Overhead communication for power grid towers, rural FTTH trunk lines, mountain/forest/wilderness monitoring networks, railway signal links and rodent-prone aerial routes where underground cabling is uneconomical.
Protection range: Round FRP rods form a full 360° surrounding barrier, no blind spots against rodent biting; flat FRP only protects partial cable circumference, vulnerable to gnawing on uncovered sides.
Impact resistance: Even force dispersion around the cable, better anti-stone strike, bird pecking and vandalism performance.
Structure stability: Uniform circular layer avoids eccentricity during cable laying and suspension, less extra optical attenuation under long-span tension.
Bitter additive HDPE outer sheath chemically discourages rodents from biting;
Continuous rigid round FRP armor physically blocks teeth penetration;
Inner MDPE sheath prevents water intrusion even if the outer jacket has minor scratches.
It effectively resists damage from squirrels, field rats, marmots and woodpeckers, suitable for heavy rodent hazard zones.
Short span: 50–150m for rural pole routes;
Medium span: 150–300m for mountain and valley lines;
Long span: 300–800m for wide river crossing, high-tower transmission corridors.
We can match tension grade according to your actual pole distance, wind and ice load requirements.
Fiber types: G.652D, G.657A1/A2 single-mode fibers for long-distance communication; multimode fibers on request.
Standard core counts: 4, 6, 8, 12, 24, 48, 72, 96, 144 cores; customized higher core counts up to 288 cores are acceptable.
All loose tubes and fibers are color-coded for easy splicing identification.
1. Structure Parameter
Double Jackets (Span 150m for reference):
| Model | Anti-Rodent ADSS | ||||||||
| Fiber Type | G652D G655 G657 50/125 62.5/125 | ||||||||
| Fiber Counts | 2-30 | 32-36 | 38-60 | 62-72 | 74-96 | 98-120 | 122-144 | 146-216 | 218-288 |
| Max. fibers per tube | 6 | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Units (Tubes or Fillers) | 6 | 6 | 6 | 6 | 8 | 10 | 12 | 18 | 24 |
| Cable Diameter（mm） | 13.8 | 13.8 | 15.0 | 15.0 | 16.5 | 18.0 | 19.5 | 19.7 | 22.0 |
| Cable Weight（Kg/km） | 175 | 175 | 210 | 210 | 255 | 295 | 356 | 354 | 432 |
| Tensile（N） | Long/Short Term：2500/5000 | ||||||||
| Crush（N/100mm） | Long/Short Term：1000/3000 | ||||||||
| Min. Bending Radius (mm) | Static/Dynamic：15D/30D | ||||||||
| Temperature (℃) | Storage /Operation：-40℃~70℃ | ||||||||
2. Fiber Parameter G.652.D (After Cable)
Item | Characteristics | Unit | Value | |
Geometrical | Cladding Diameter | μm | 125.0±1.0 | |
Cladding Non-circularity | % | ≤1.0 | ||
Core-Cladding Concentricity Error | μm | ≤0.6 | ||
Core Non-circularity | % | ≤12 | ||
Coating Diameter | μm | 245±10.0 | ||
Coating-Cladding Concentricity Error | μm | ≤12 | ||
Curl Radius | m | ≥4 | ||
Attenuation | Zero Dispersion Slope S0 | ps/nm²km | ≤0.092 | |
1625nm Attenuation | dB/km | ≤0.30 | ||
1383+/-3nm Attenuation | dB/km | ≤0.36 | ||
1310nm Attenuation | dB/km | ≤0.36 | ||
1550nm Attenuation | dB/km | ≤0.22 | ||
Point Discontinuity (1310nm & 1550nm) | dB | ≤0.05 | ||
Attenuation at 1285nm ~ 1330nm compared with 1310nm | dB | ≤0.03 | ||
Attenuation at 1485nm ~1580nm compared with 1550nm | dB | ≤0.03 | ||
Zero Dispersion Wavelength λ0 | nm | 1300≤λ0≤1324 | ||
Dispersion | 1285~1339nm Dispersion | ps/nm/km | ≤3.5 | |
1271~1360nm Dispersion | ps/nm/km | ≤5.3 | ||
1550nm Dispersion | ps/nm/km | 13.3~18.6 | ||
Nominal MFD Value（1310nm） | μm | 8.6-9.5 | ||
MFD Tolerance | μm | ±0.4 | ||
Bending | Cable Cut-off Wavelength λcc | nm | ≤1260 | |
1550nm Macro-bend Induced Attenuation（ 100turns with diameter of 60mm ） | dB | ≤0.5 | ||
PMD | Q | 0.01% | ||
Maximum Individual Fiber | ps/√km | 0.2 | ||
M | 20 cables | |||
3. Color Identification
Reel Length:
normally 2km, 3km, 4km (as your request)
Drum options:
Fumigated Wooden Drum
Steel-reinforced Wooden Drum
Plywood Drum
Cable and Drum Marking according to customer's requirements.
