Are you designing an outdoor fiber network and struggling with cable choices? Selecting the wrong structural design can lead to premature network failure or unexpected installation expenses. In this article, you will learn the critical differences between central unitube and stranded loose tube configurations. We will examine how this choice impacts your network deployment efficiency and long-term cost. Selecting the ideal Figure 8 Aerial Cable directly optimizes your infrastructure budget and transmission stability.
● A Figure 8 Aerial Cable features an integrated steel messenger wire that streamlines deployment by eliminating the need for separate messenger installations.
● Central unitube designs offer a compact, lightweight profile best suited for low to medium fiber counts in simple point-to-point links.
● Stranded loose tube designs provide superior mechanical protection, high fiber counts, and excellent mid-span access flexibility for complex networks.
● Environmental resistance differs between the two, with stranded configurations offering better strain relief under high wind and heavy ice loading conditions.
● Total cost of ownership balances the lower initial material costs of unitube options against the superior scalability and repair efficiency of stranded tube cables.

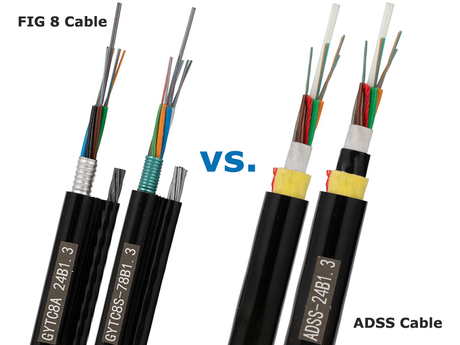

What Makes a Figure 8 Aerial Cable Unique
Aerial fiber optic deployments require robust structural integrity to withstand continuous environmental stress. A FIG8 Aerial Cable solves this challenge by incorporating a high-tensile steel messenger wire directly into the outer jacket sheath. When viewed in cross-section, this combination resembling the number eight creates a self-supporting structure.
By integrating the support mechanism, installation crews can pull and tension the entire assembly in a single operation. It eliminates the separate, labor-intensive process of lashing a traditional fiber cable to an independent messenger strand. This integrated approach significantly reduces the total load placed on utility poles. It also speeds up deployment timelines across vast outdoor networks, making it a preferred choice for B2B telecommunication providers.
Central Unitube Structure Explained
The central unitube architecture uses a straightforward, efficient approach to fiber housing. In this configuration, multiple optical fibers reside together inside a single, centrally positioned plastic loose tube. This core tube is filled with a water-resistant gel compound to protect the glass fibers from moisture penetration. Water-blocking yarns or tapes are wrapped around the central tube to provide additional moisture protection.
Strength members, typically steel wires or glass-reinforced plastic rods, run parallel to the central tube inside the outer polyethylene jacket to provide tensile strength. This design maximizes fiber density within a small outer diameter. It provides reliable mechanical protection while maintaining a highly compact structural profile.
Note: Central unitube structures typically feature smaller cross-sections, making them highly effective for limited-space pole attachments.
Stranded Loose Tube Structure Explained
The stranded loose tube design uses a modular architecture built around a central strength member. Instead of a single tube, this cable contains multiple buffer tubes helically stranded around a central fiberglass or steel rod. Each individual buffer tube contains a specific number of colored fibers immersed in water-blocking gel.
Empty filler rods are used to maintain a perfectly round, balanced cable geometry when the fiber count does not require all available tubes. A water-blocking tape wraps around the entire stranded core bundle before the outer protective layers are applied. This multi-tube configuration isolates the delicate optical fibers from external mechanical stresses, allowing the cable to bend and flex more safely during deployment.

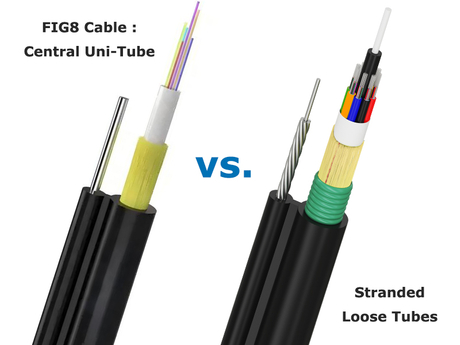

Key Design Differences
The core structural difference lies in how the fiber elements are organized inside the outer jacket protective sheath. The central unitube relies on one main chamber, whereas the stranded design separates fibers into distinct, independent sub-tubes. This structural variance fundamentally impacts cable weight, flexibility, and outer diameter dimensions.
Feature | Central Unitube Design | Stranded Loose Tube Design |
Tube Arrangement | Single central tube | Multiple tubes stranded around a core |
Fiber Separation | All fibers share one tube | Fibers isolated in independent tubes |
Cable Diameter | Smaller and more compact | Larger overall outer diameter |
Mid-Span Access | Harder to isolate specific bundles | Simple to open a single buffer tube |
Maximum Core Count | Generally limited (2-24 core) | Very high capacity (up to 144 cores or more) |
This structural layout directly determines how technicians handle the cable during splicing and maintenance operations. It also dictates how well the cable absorbs mechanical loads during severe environmental shifts.
Fiber Capacity and Scalability
Network scaling requirements represent a primary factor when choosing between these two cable structural architectures. Central unitube designs operate exceptionally well for lower core count requirements, typically capping out around 24 to 48 fibers. Packing more fibers into a single tube increases the risk of microbending losses and makes individual fiber identification much more difficult for field technicians.
Stranded loose tube designs offer superior scalability for expanding enterprise networks. They easily accommodate high core capacities, ranging from 12 to 144 fibers or more within a single cable assembly. This multi-tube approach allows network operators to allocate specific tubes to different distribution hubs or future expansion projects without disturbing the remaining active fibers.
Mechanical and Environmental Resistance
Aerial infrastructure faces constant environmental threats, including heavy wind gusts, temperature swings, and thick ice accumulation. Stranded loose tube cables offer superior mechanical protection under high-tension conditions. The helical twisting of the buffer tubes around the central strength member creates built-in excess fiber length. When wind or ice stretches the cable, the tubes move slightly, preventing the physical tension from transferring directly to the internal glass fibers.
Central unitube designs lack this sophisticated internal strain-relief mechanics. When a unitube cable stretches under heavy ice loads, the internal fibers experience tensile stress much sooner. They rely heavily on the external jacket strength members and the integrated steel messenger wire to absorb all environmental forces.
Tip: For geographic regions prone to severe winter ice storms, prioritize stranded loose tube designs to protect signal integrity against cable stretching.
Signal Integrity and Loss Characteristics
Signal attenuation and bending losses can degrade overall transmission performance across long-distance aerial links. The stranded loose tube structure excels at preventing microbending because the individual fibers enjoy more free movement within their separate, gel-filled chambers. This design minimizes localized pressure points on the glass core, ensuring consistent signal performance even when the cable flexes significantly.
Central unitube cables are more susceptible to macrobending and microbending losses when subjected to sharp turns or tight storage loops. Because all fibers occupy the same single space, they can bunch together during temperature contraction cycles. This structural limitation requires installation crews to maintain strict adherence to minimum bend radius guidelines during deployment.
Installation Efficiency
Field handling and installation efficiency directly impact deployment schedules and overall project labor budgets. Central unitube cables are lighter and more flexible, which simplifies pulling operations and reduces the physical load on installation hardware. Crews can maneuver these compact cables around complex pole configurations with minimal physical effort.
Stranded loose tube options are heavier and stiffer due to their multi-layer construction and central strength members. They require more robust mounting brackets, heavier tensioning equipment, and careful handling to prevent kinking. However, the stranded structure simplifies splicing preparation at distribution joints because technicians can quickly separate and organize the distinct color-coded buffer tubes.
Initial Material and Installation Costs
Upfront budgeting often drives the initial product selection process in large-scale network rollouts. Central unitube options require fewer raw materials and a simpler manufacturing process, making them the more economical purchase choice. The lower weight of unitube cables also translates into reduced shipping costs and less demanding pole hardware requirements, lowering the initial deployment investment.
Stranded loose tube cables demand a higher initial material investment due to their complex multi-tube manufacturing process and increased raw material volume. The associated mounting hardware, dead-end clamps, and suspension hooks must also be rated for heavier loads, which adds to the initial infrastructure cost.
Maintenance and Repair Costs
Long-term operational costs can quickly overshadow any savings realized during the initial purchasing phase. Central unitube cables complicate repair operations when an aerial line suffers localized physical damage. Because all fibers reside in a single tube, technicians often must cut and splice every single fiber in the core bundle to fix a localized issue, extending network downtime.
Stranded loose tube designs drastically simplify troubleshooting and mid-span branching operations. If a single tube suffers damage, or if a technician needs to drop fibers to a new customer site, they only open that specific buffer tube. The remaining tubes continue operating without interruption, saving significant labor hours and protecting active customer SLA agreements.
Total Cost of Ownership Perspective
Evaluating expenses over a multi-decade operational lifecycle reveals the true value profile of each design approach. A low-cost unitube installation might save money upfront but can become a financial burden if your business requires rapid capacity upgrades or frequent emergency repairs.
Investing in a stranded loose tube system provides a more flexible foundation that adapts to growing data demands without requiring completely new cable pulls. It minimizes emergency maintenance labor and localized repair costs, making it the more financially sustainable choice for expansive, long-term communication networks.
Central Unitube Best Fit Scenarios
Central unitube cables deliver outstanding performance in focused, streamlined networking applications. They are highly efficient for straightforward point-to-point links, such as connecting two corporate buildings or linking a main control facility directly to a remote security station.
Urban areas with strict space limitations on utility poles benefit from the compact profile of unitube designs. They work best when the required fiber count is low and the network architecture does not demand frequent mid-span branching or drops along the route.
Stranded Loose Tube Best Fit Scenarios
Stranded loose tube configurations represent the gold standard for regional distribution networks and complex industrial campus backbones. They excel in wide-area deployments where cables pass multiple drop points or connection hubs.
FTTH (Fiber to the Home) distribution lines find great value in the stranded architecture because field crews can easily extract individual tubes to feed specific neighborhoods. They are also ideal for harsh cross-country routes where long spans expose infrastructure to unpredictable wind forces and heavy environmental loading.
Hybrid Approaches
Modern infrastructure planning often combines both structural styles to achieve optimal network performance and cost efficiency. Engineers frequently deploy heavy-duty stranded loose tube cables for the primary regional backbone rings where maximum capacity and reliability are required.
They then transition to economical central unitube cables for the final distribution legs that connect individual customer locations to the main ring. This hybrid strategy maximizes capital expenditure efficiency while maintaining a highly reliable, scalable network architecture.
Choosing between central unitube and stranded loose tube configurations for your Figure 8 Aerial Cable deployment requires balancing immediate budget constraints against long-term operational flexibility. Unitube options offer an economical, compact structure perfect for simple, low-count installations. Stranded loose tube designs provide the mechanical protection, high capacity, and splicing efficiency required for demanding distribution networks.
For high-quality infrastructure solutions, CROFC delivers robust self-supporting aerial fiber cables engineered to withstand severe outdoor conditions. Their advanced designs protect signal integrity and ensure your network remains reliable and scalable for decades. Aligning your structural choice with your long-term operational goals ensures a highly efficient and future-proof network infrastructure.
A: A Figure 8 Aerial Cable is a self-supporting fiber optic cable featuring an integrated steel messenger wire for simplified pole installation.
A: Stranded designs provide higher core counts, superior mechanical protection against wind or ice, and much simpler mid-span fiber access.
A: It is ideal for low fiber counts and simple point-to-point links where budget and compact cable size are primary considerations.
A: The integrated steel messenger wire absorbs physical tension, while internal water-blocking materials protect the fibers from moisture ingress.
